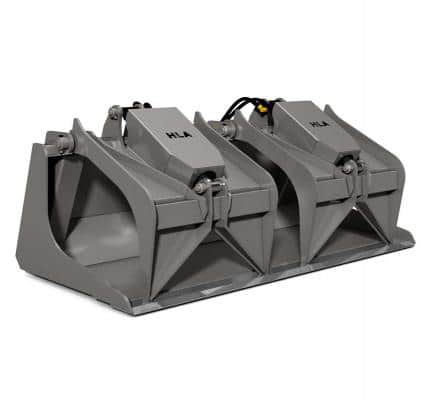

Scrap Grapple Bucket (Skidsteer)

Features

  • Two independent grapples

  • 34" overall depth

  • Ideal for awkward abrasive loads

  • Comes with 2-½" x 8" cylinders

  • NOTE: ADD 2" TO INSIDE WIDTH OF BUCKET FOR OUTSIDE WIDTH MEASUREMENT

  • 31" overall height

Spec Table

Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP.
CU. FT.
SAE
HEAPED CAP.
CU. FT.
APPROX. WEIGHT
LBS.
SGB54 54" SCRAP GRAPPLE BUCKET 54 11.9 15.3 970
SGB60 60" SCRAP GRAPPLE BUCKET 60 13.2 17.1 1015
SGB66 66" SCRAP GRAPPLE BUCKET 66 14.5 18.9 1050
SGB72 72" SCRAP GRAPPLE BUCKET 72 15.9 20.7 1090
SGB78 78" SCRAP GRAPPLE BUCKET 78 17.2 22.5 1135
HK90 OPTIONAL 90" HOSE KIT C/W FLAT FACED COUPLERS
  • Details

    Spec Table

    Part Number Description INSIDE WIDTH
    INCHES
    STRUCK CAP.
    CU. FT.
    SAE
    HEAPED CAP.
    CU. FT.
    APPROX. WEIGHT
    LBS.
    SGB54 54" SCRAP GRAPPLE BUCKET 54 11.9 15.3 970
    SGB60 60" SCRAP GRAPPLE BUCKET 60 13.2 17.1 1015
    SGB66 66" SCRAP GRAPPLE BUCKET 66 14.5 18.9 1050
    SGB72 72" SCRAP GRAPPLE BUCKET 72 15.9 20.7 1090
    SGB78 78" SCRAP GRAPPLE BUCKET 78 17.2 22.5 1135
    HK90 OPTIONAL 90" HOSE KIT C/W FLAT FACED COUPLERS
