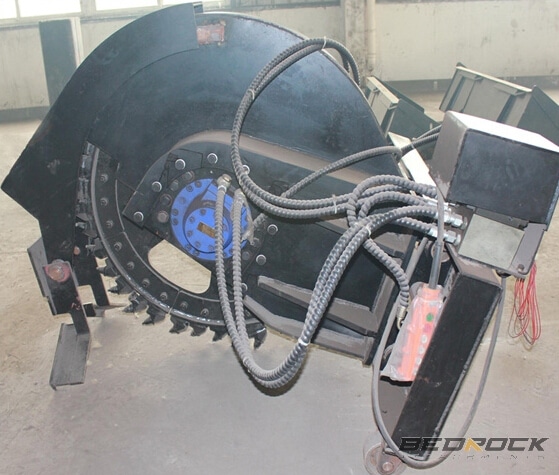

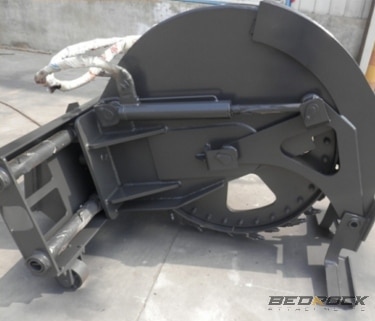

Rock Saw Attachments
Description:
BEDROCK rock saw attachments can be used to repair the roads, trench the ditches for installing water, gas, electricity, and fiber optic cables, the pipeline interleaving layout, cutting asphalt, concrete and reinforced icing on the ground.
The rock cutting machine has a very good economic performance.
Features:
1.Use standard electro-hydraulic control system.
2.The cutting depth can be adjusted.
3.The rock cutter have protective device, it can protect key elements.
4.Using famous brand components,With better strength and durability.
Application Field:

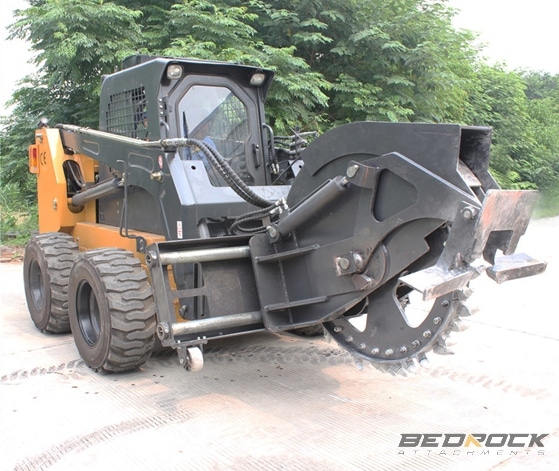

BEDROCK rock saw attachments are an ideal tool for highway maintenance and municipal construction.
Technical Specifications:
| Rock Saw Technical Specifications |
||
| Model |
030518 |
030524 |
| Total Length A(mm) |
1650 |
1970 |
| Total Width B(mm) |
1676 |
1676 |
| Total Height C(mm) |
1280 |
1597 |
| Digging Width D(mm) |
100 |
100 |
| Max. cutting Depth (mm) |
450 |
600 |
| Diameter of Cutting Disc (mm) |
1220 |
1524 |
| Cutting Blades number |
40 |
55 |
| Flow Range(L/min) |
110-140 |
110-140 |
| Pressure (Mpa) |
14-22 |
14-22 |
| Operating Weight (Kg) |
750(not included the cutting bases) |
850(not included the cutting bases) |
Rock Saw Attachments
Description:
BEDROCK rock saw attachments can be used to repair the roads, trench the ditches for installing water, gas, electricity, and fiber optic cables, the pipeline interleaving layout, cutting asphalt, concrete and reinforced icing on the ground.
The rock cutting machine has a very good economic performance.
Features:
1.Use standard electro-hydraulic control system.
2.The cutting depth can be adjusted.
3.The rock cutter have protective device, it can protect key elements.
4.Using famous brand components,With better strength and durability.
Application Field:
BEDROCK rock saw attachments are an ideal tool for highway maintenance and municipal construction.
Technical Specifications:
| Rock Saw Technical Specifications |
||
| Model |
030518 |
030524 |
| Total Length A(mm) |
1650 |
1970 |
| Total Width B(mm) |
1676 |
1676 |
| Total Height C(mm) |
1280 |
1597 |
| Digging Width D(mm) |
100 |
100 |
| Max. cutting Depth (mm) |
450 |
600 |
| Diameter of Cutting Disc (mm) |
1220 |
1524 |
| Cutting Blades number |
40 |
55 |
| Flow Range(L/min) |
110-140 |
110-140 |
| Pressure (Mpa) |
14-22 |
14-22 |
| Operating Weight (Kg) |
750(not included the cutting bases) |
850(not included the cutting bases) |
