SANY SY215C

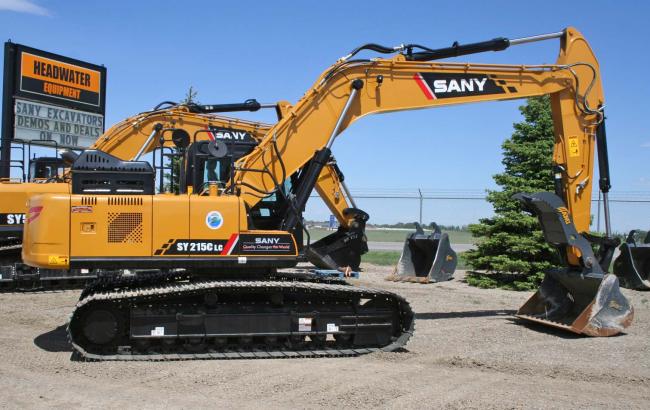

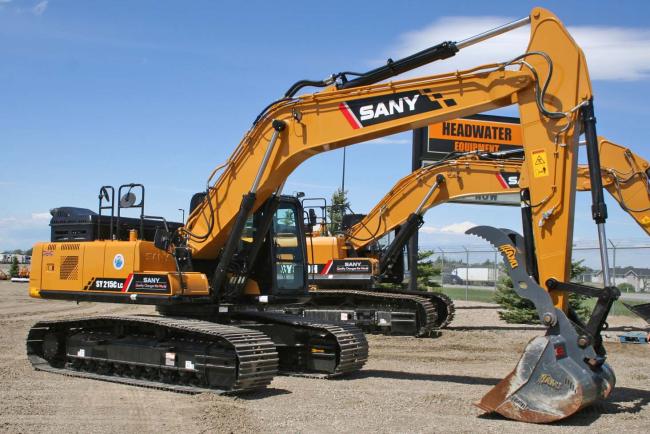

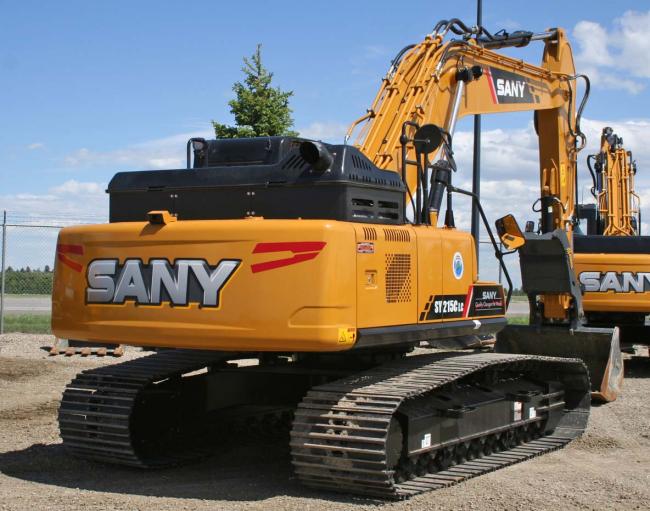

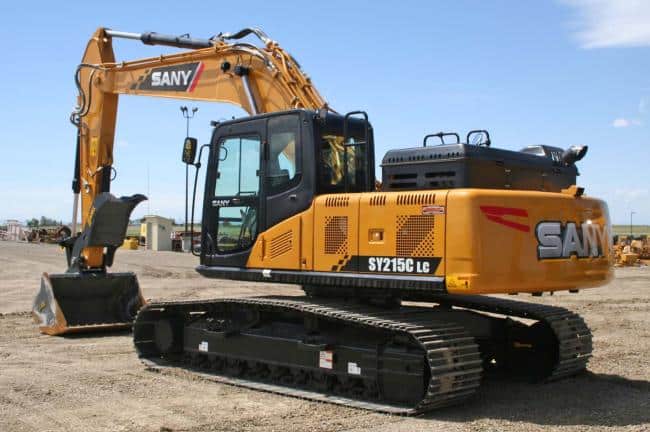

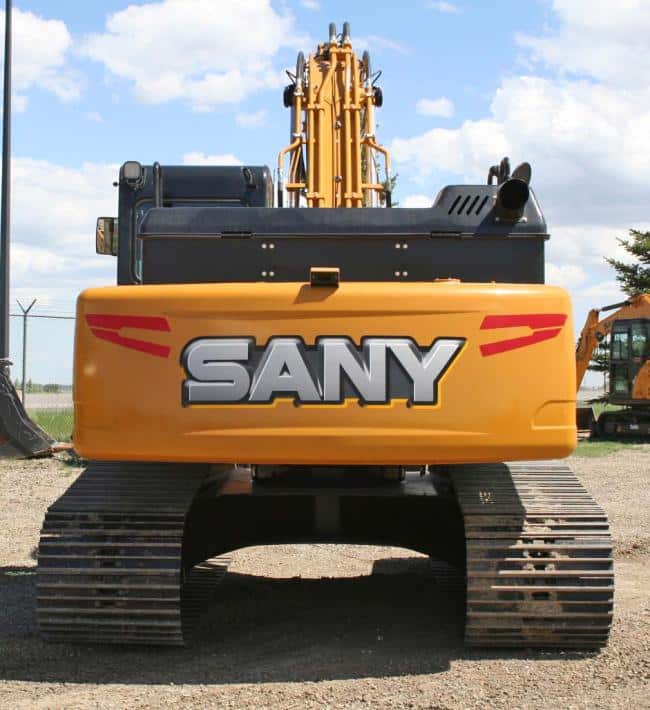

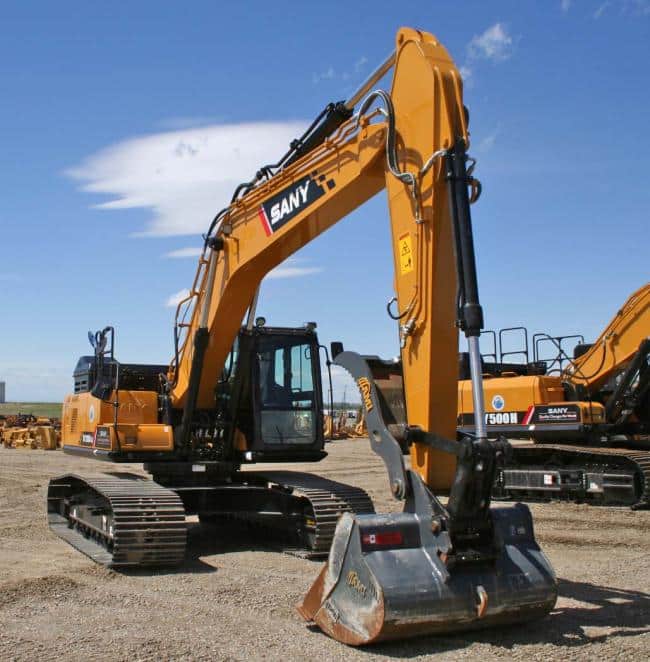

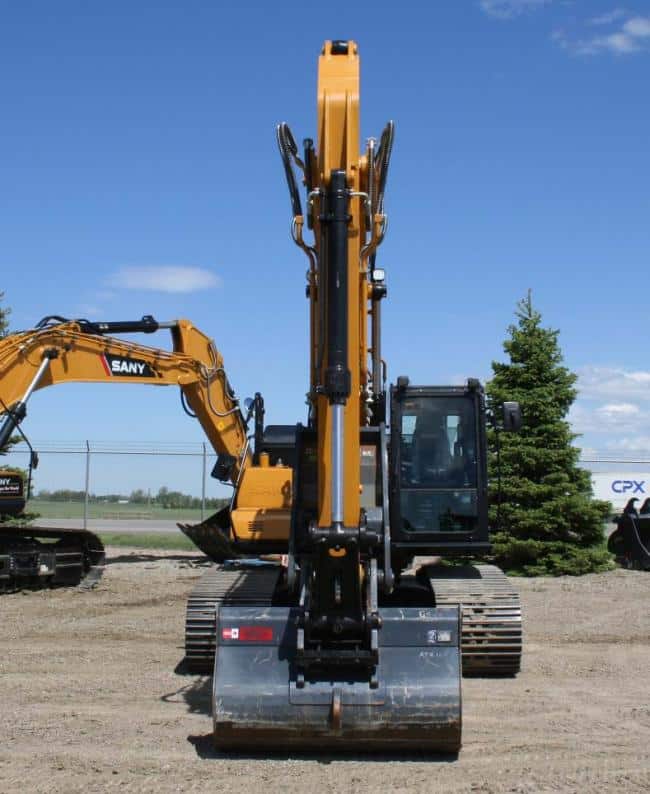

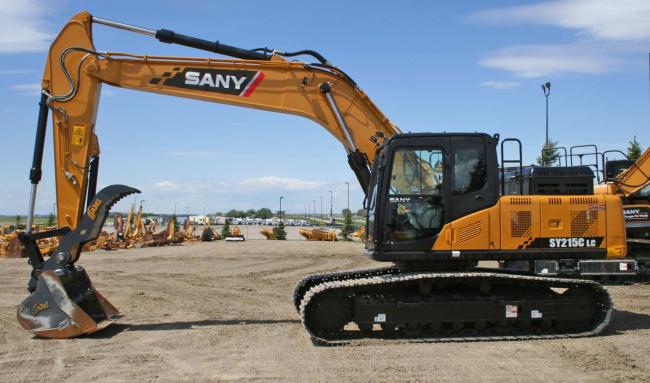

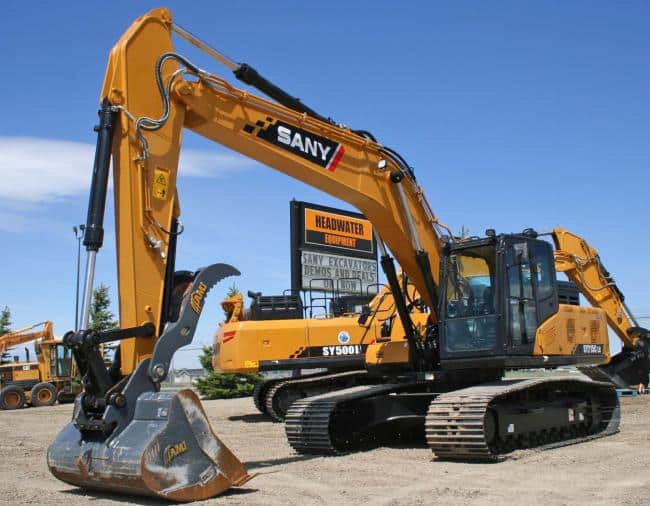

SANY SY215C — CRAWLER EXCAVATOR
Find the power and durability you need in your excavator when you choose SANY’s SY215C. Powered by a Cummins Diesel engine, the SY215C features fuel-efficient technology that can save as much as 10% on your fuel costs. With SANY’s optimized positive flow hydraulic system that improves operating efficiency by as much as 5%, you can get more work done in less time – and for less money – in even the toughest conditions with the SY215C medium excavator.
FEATURES
• Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications.

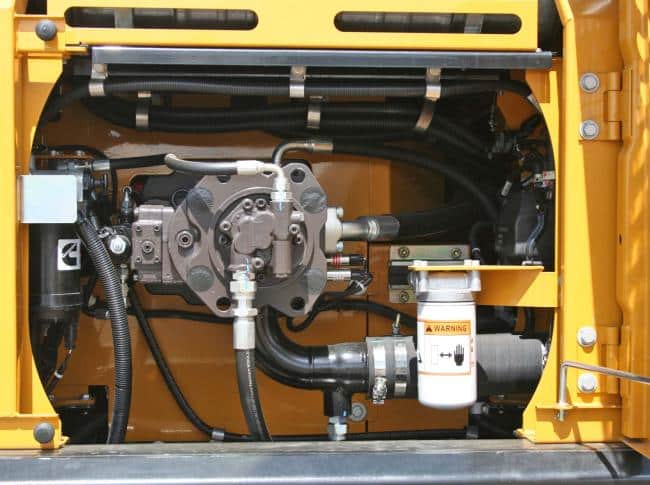

• Optimized positive flow hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Working Range
| Boom Length | 18'8" (5700 mm) |
|---|---|
| Maximum Digging Depth | 21'8" (6600 mm) |
| Maximum Vertical Wall Digging Depth | 19'7" (5980 mm) |
| Maximum Dumping Height | 21'11" (6670 mm) |
| Maximum Digging Height | 30'1" (9180 mm) |
| Maximum Swing Radius | 12'3" (3730 mm) |
| Maximum Digging Reach at Ground Level | 33'10" (10307 mm) |
| Stick (Arm) Length | 9'7" (2925 mm) |
Technical Specifications
| Operating Flow (Maximum) | 117.3 gal/min (444.0 L/min) |
|---|---|
| Travel Pressure (Maximum) | 4975 psi (34.3 MPa) |
| Operating Weight | 51,919 lbs (23,550 kg) |
| Gross Power | 163.6 HP (122 kW) |
| Hydraulics | Positive Flow Control with Pilot Control |
| Power Boost Pressure (Maximum) | 5410 psi (37.3 MPa) |
| Engine Displacement | 408.9 in³ (6.7 L) |
| Carrier Rollers (per side) | 2 |
| Swing Pressure (Maximum) | 3989 psi (27.5 MPa) |
| Travel Motor | Axial Piston with Park Brake |
| Travel Speeds (Maximum) | 1.9/3.3 mph (3.1/5.3 km/hr) |
| Ground Pressure | 5.3 psi (36.3 kPa) |
| Operating Pressure (Maximum) | 4975 psi (34.3 MPa) |

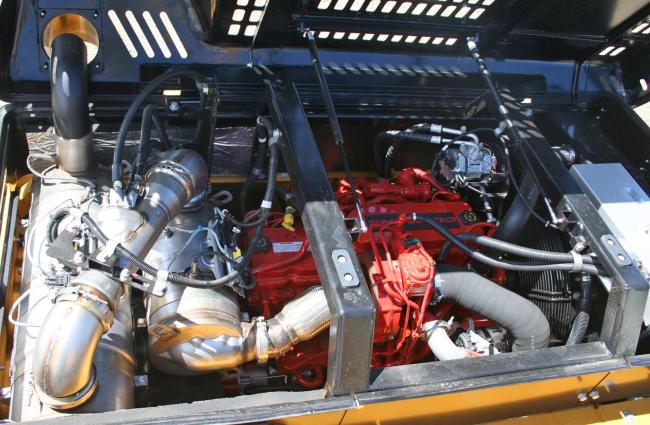

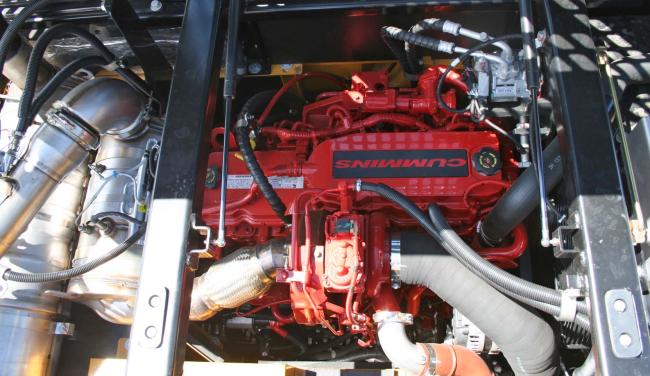

| Engine Type | Cummins QSB6.7 |

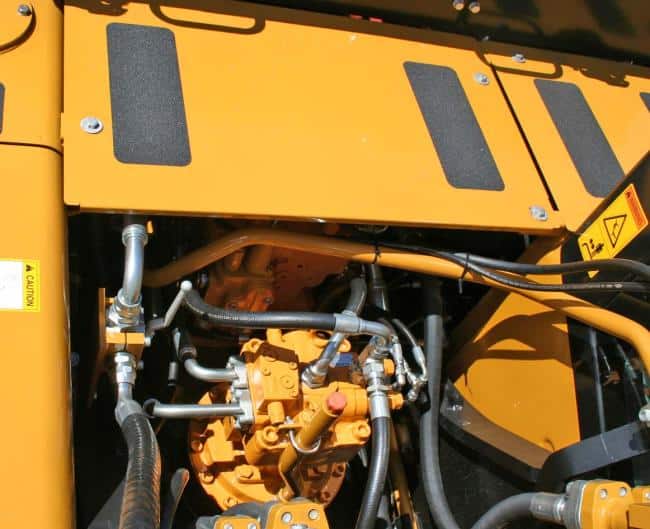

| Swing Motor | Axial Piston with Swing Brake |
| Travel Effort (Maximum) | 40,466 lbf (180.0 kN) |
| Swing Speed (Maximum) | 10.9 RPM |
| Main Hydraulic Pump | Axial Piston - Variable Displacement |
| Track Rollers (per side) | 9 |

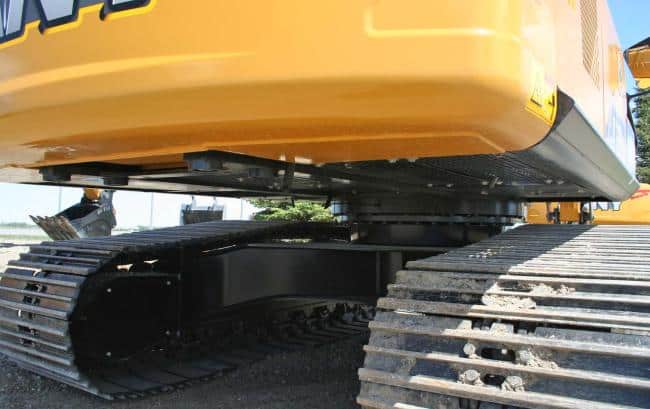

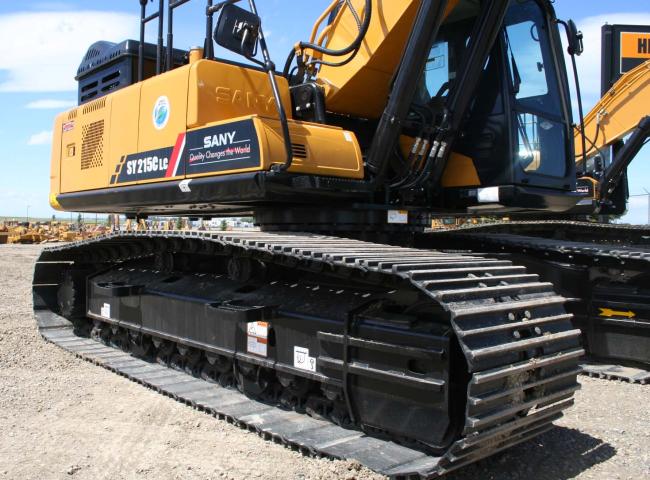

| Undercarriage (standard) | Steel Track |
| Grade Capability | 35˚ |
| Track Shoe Width (standard) | 31" (800 mm) |
Overall Dimensions
| Transport Width | 10'5" (3180 mm) |
|---|---|
| Track Gauge | 7'10" (2380 mm) |
| Tail Swing Radius | 9'6" (2890 mm) |
| Transport Length | 31'11" (9728 mm) |
| Track Length | 14'7" (4450 mm) |
| Stick (Arm) Length | 9'7" (2925 mm) |
| Track Width (standard shoe) | 31" (800 mm) |
| Track Length on Ground | 11'11" (3640 mm) |
| Minimum Ground Clearance | 19" (480 mm) |
| Cab Height | |
| Boom Length | 18'8" (5700 mm) |
| Transport Height | 11'1" (3370 mm) |
| Upper Structure Width | 8'11" (2710 mm) |
| Blade Height |
