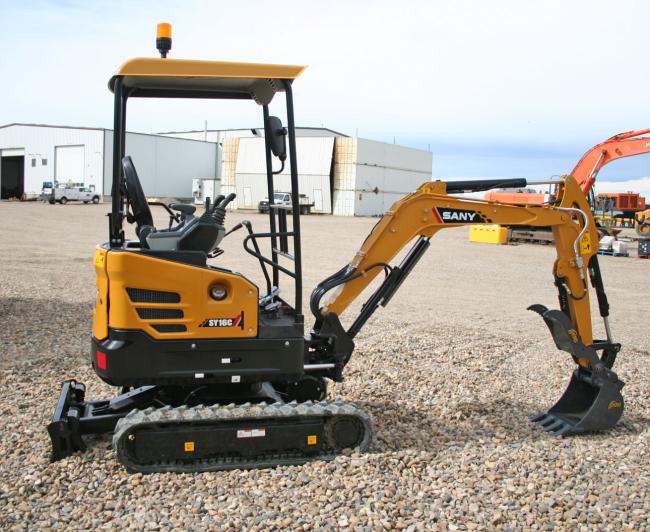

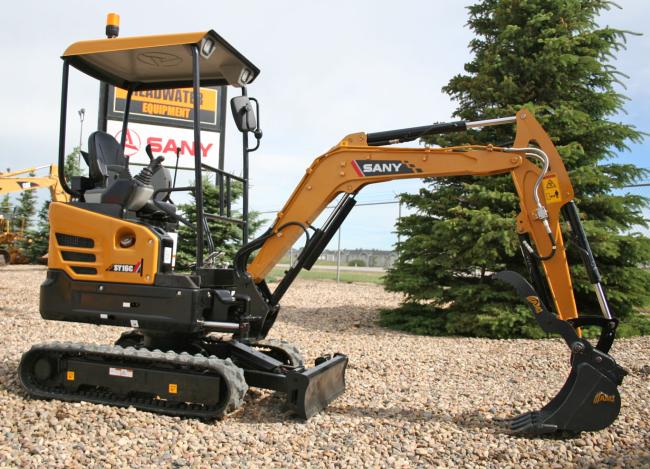

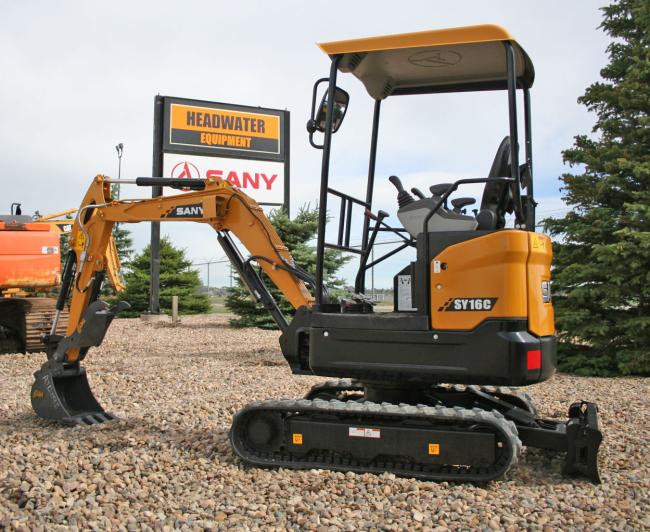

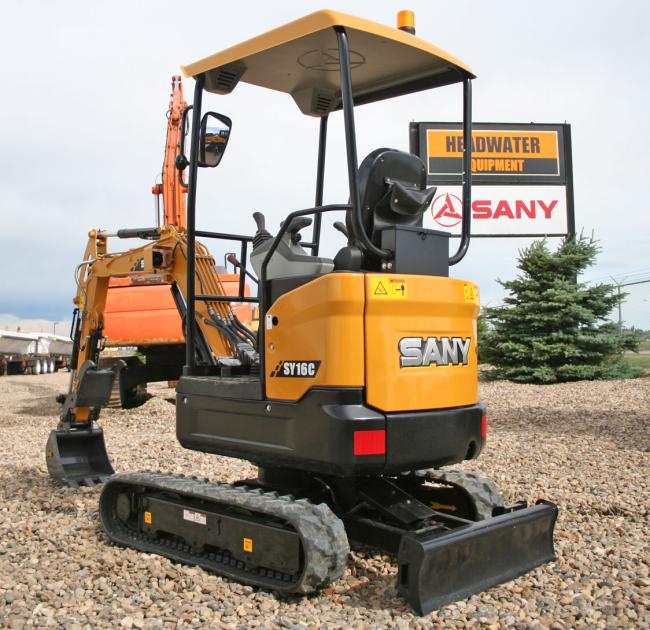

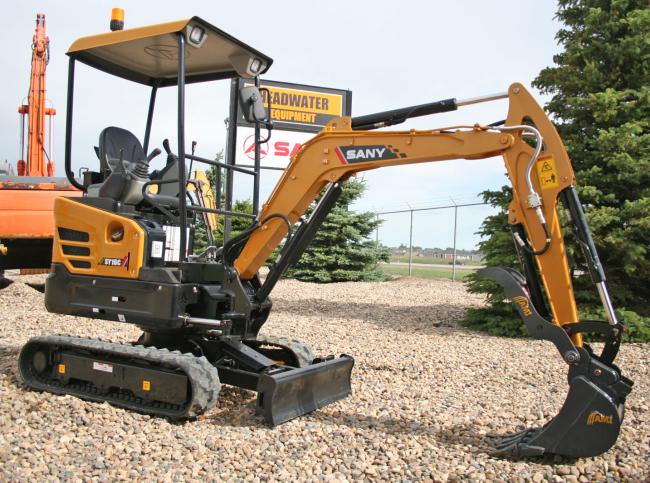

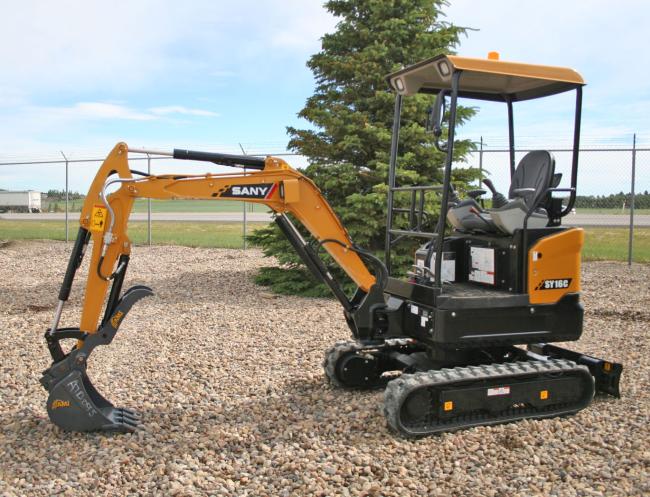

SANY SY16C
Find Out More

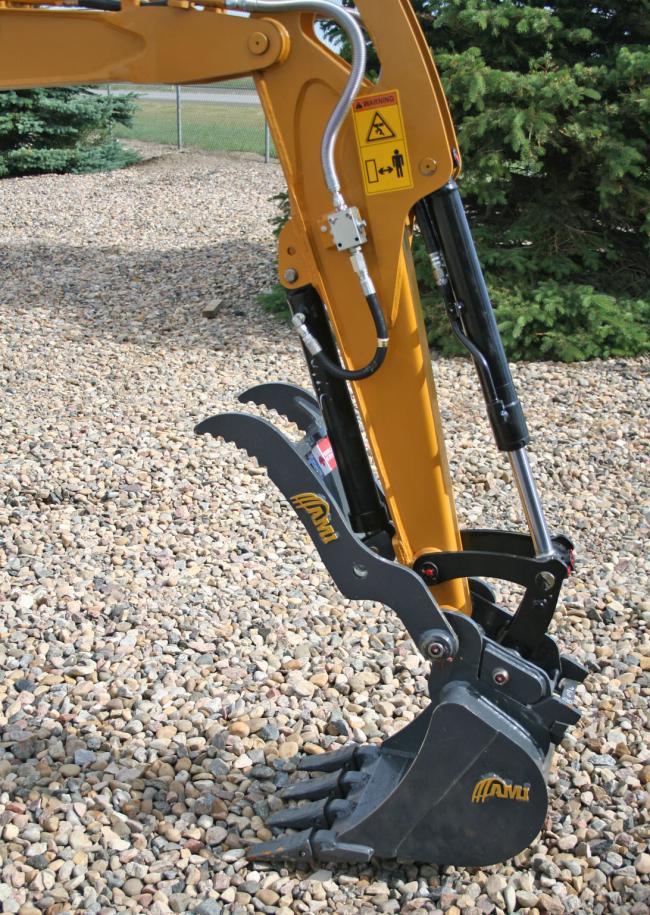

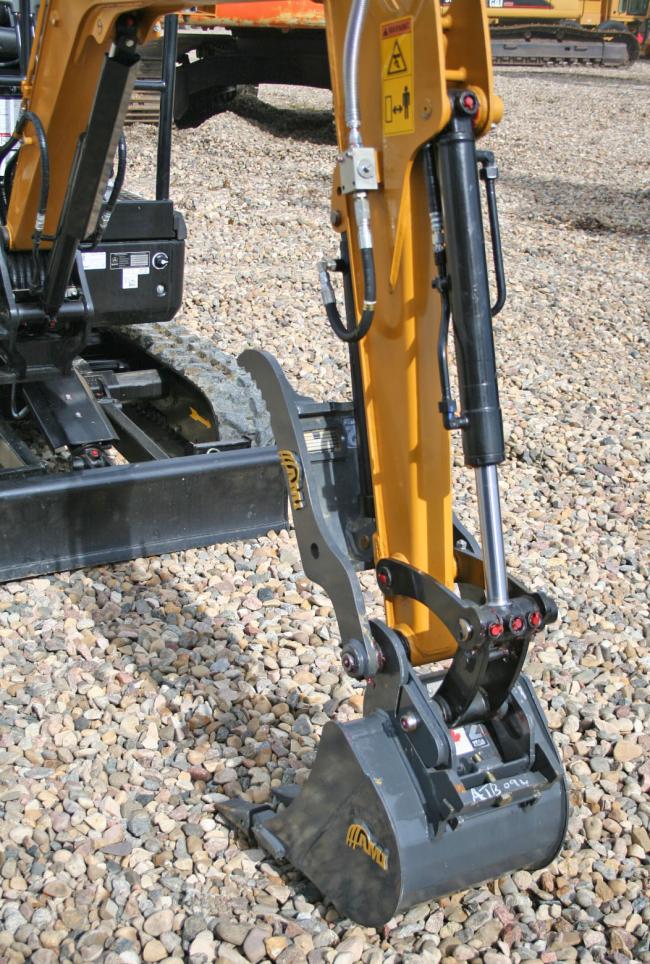

The SY16C sold by Headwater comes equipped with a Wedge Style coupler, a 12 inch digging bucket and a 24 inch clean up bucket. Attachments available include hydraulic thumb, plate tamper, and breakers. Front knock down blade is standard equipment on the SY16C.
Technical Specifications - Main Hydraulic Pump: | Axial Piston-Variable Displacement |
---|---|
Technical Specifications - Travel Speeds (maximum): | 1.3/2.3 mph (2.1/3.7 km/hr) |
Technical Specifications - Swing Motor: | Axial Piston |
Overall Dimensions - Stick (Arm) Length: | 3'8" (1130 mm) |
Technical Specifications - Engine: | Yanmar 3TNV74F |
Overall Dimensions - Track Gauge: | 2'6"/3'8" (750/1120 mm) |
Overall Dimensions - Transport Length: | 11'9" (3575 mm) |
Technical Specifications - Travel Effort (maximum): | 3,507 lbf (15.6 kN) |
Working Range - Maximum Digging Depth: | 7'9" (2360 mm) |
Overall Dimensions - Ground Clearance (minimum): | 7" (180 mm) |
Overall Dimensions - Track Length on Ground: | 4'0" (1220 mm) |
Overall Dimensions - Track Width (standard shoe): | 9" (230 mm) |
Overall Dimensions - Dozer Blade Max Depth: | |
Overall Dimensions - Blade Height: | 11" (270 mm) |
Technical Specifications - Carrier Rollers (per side): | |
Technical Specifications - Travel Pressure (maximum): | 3553 psi (24.5 MPa) |
Working Range - Boom Length: | 5'11" (1810 mm) |
Technical Specifications - Swing Speed (maximum): | 10 rpm |
Technical Specifications - Power Boost Pressure (maximum): | |
Overall Dimensions - Transport Width: | 3'3"/4'5" (980/1350 mm) |
Technical Specifications - Track Shoe Width (standard): | 9" (230 mm) |
Technical Specifications - Swing Pressure (maximum): | 2,350 psi (16.2 MPa) |
Technical Specifications - Operating Pressure (maximum): | 3553 psi (24.5 MPa) |
Technical Specifications - Displacement: | 60.6 in³ (1.0 L) |
Overall Dimensions - Track Length: | 5'2" (1585 mm) |
Overall Dimensions - Cab Height: | |
Technical Specifications - Operating Weight: | 4,023 lb (1825 kg) |
Technical Specifications - Gross Power: | 15.0 hp (11.2 kW) |
Overall Dimensions - Transport Height: | 7'11" (2420 mm) |
Overall Dimensions - Tail Swing Radius: | 3'0" (920 mm) |
Overall Dimensions - Upper Structure Width: | 3'3" (980 mm) |
Technical Specifications - Operating Flow (maximum): | 12.7 gal/min (48.0 L/min) |
Working Range - Maximum Digging Height: | 12'0" (3665 mm) |
Working Range - Maximum Swing Radius: | 5'5" (1655 mm) |
Technical Specifications - Ground Pressure: | 4.2 psi (29.1 kPa) |
Working Range - Maximum Dumping Height: | 8'8" (2635 mm) |
Technical Specifications - Undercarriage (standard): | Belted Rubber Track |
Overall Dimensions - Dozer Blade Height: | |
ropstype: | Open |
Technical Specifications - Travel Motor: | Axial Piston |
Overall Dimensions - Dozer Blade Max. Height: | |
Technical Specifications - Hydraulics: | Load Sensing with Pilot Control |
Technical Specifications - Track Rollers (per side): | 3 |
Overall Dimensions - Boom Length: | 5'11" (1810 mm) |
Working Range - Stick (Arm) Length: | 3'8" (1130 mm) |
Technical Specifications - Grade Capability: | 35˚ |
Working Range - Maximum Vertical Wall Digging Depth: | 7'3" (2215 mm) |
Working Range - Maximum Reach at Ground Level: | 13'1" (4000 mm) |
Features

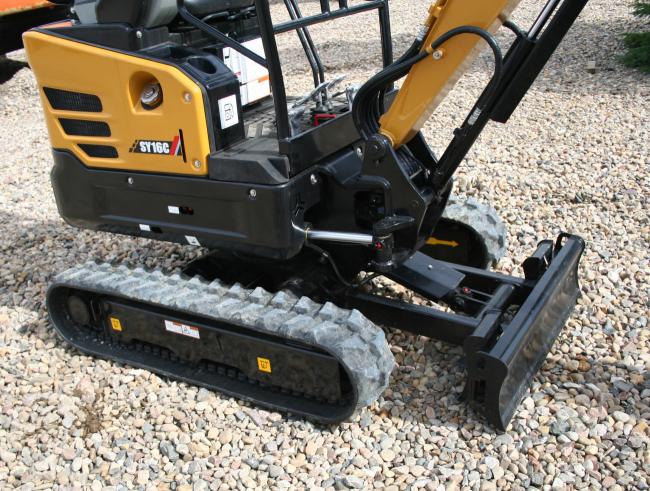

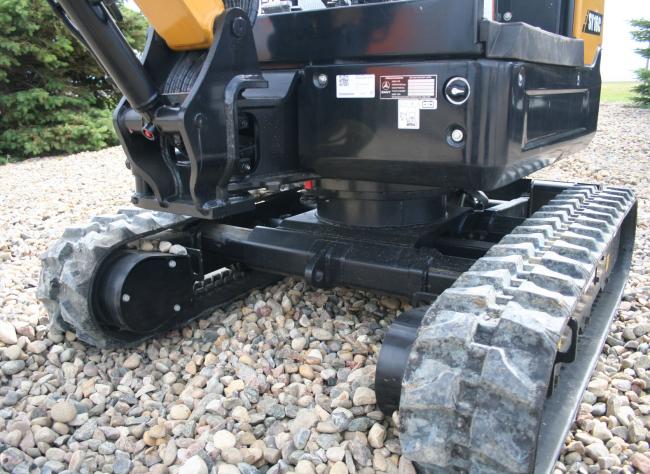

- Retractable Track Frames - Allow for access to tight access areas
- Auxiliary hydraulic circuit
- Limited tail swing

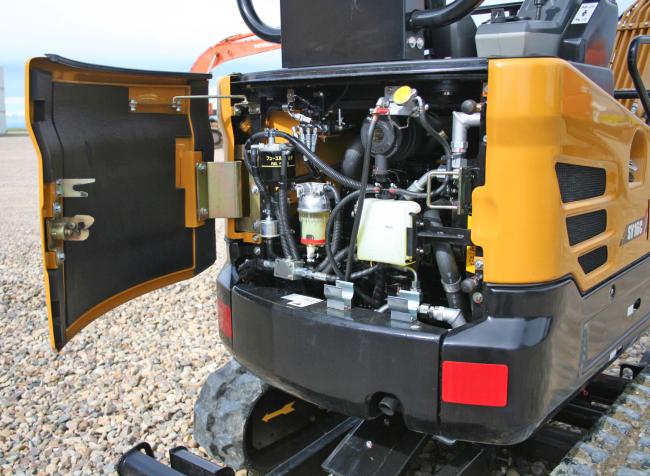

- Easily accessible service points that make scheduled maintenance more convenient

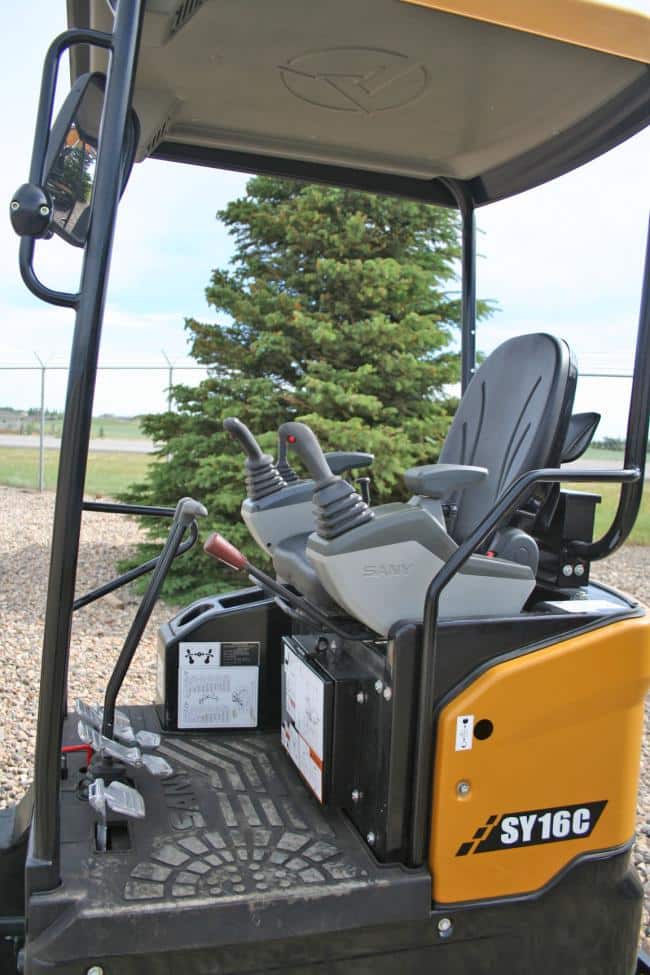

- Units available with or without an enclosed Cab

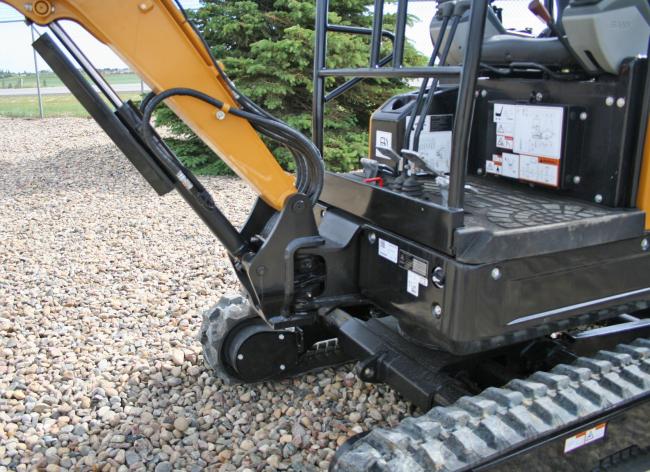

- Independent Boom Swing
- Comes with Sany's Industry Leading 5 Year/5,000 Hour Warranty
