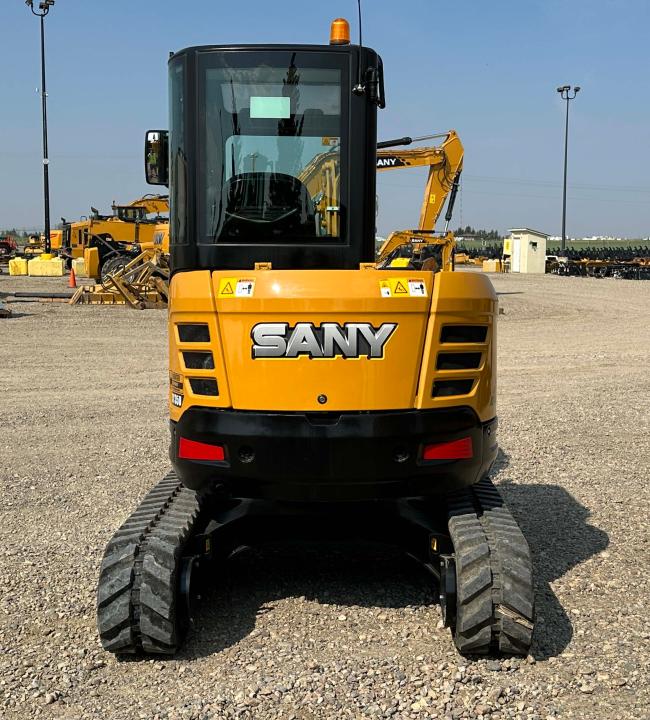

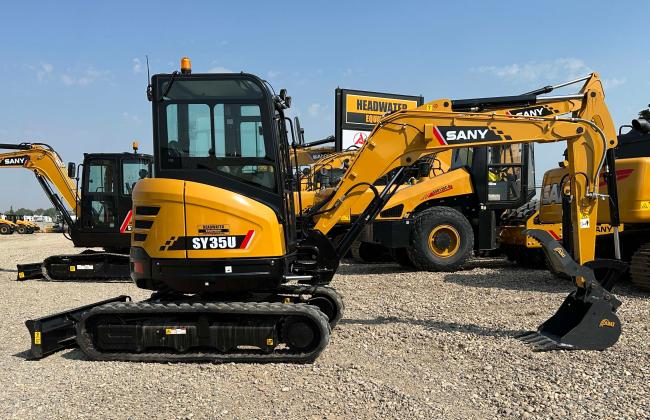

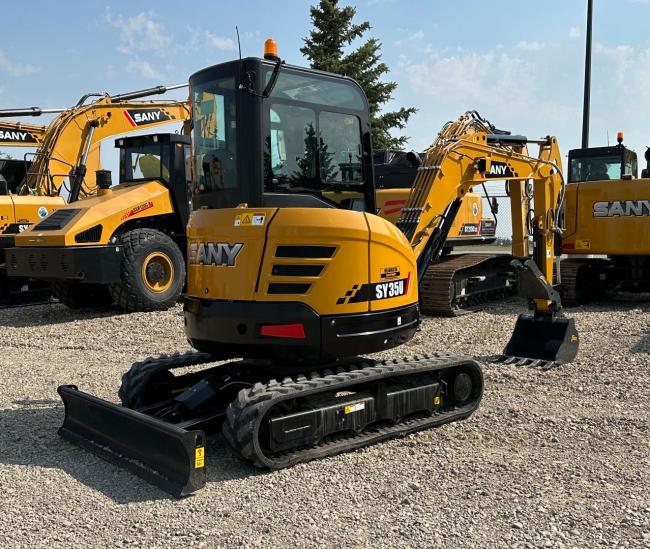

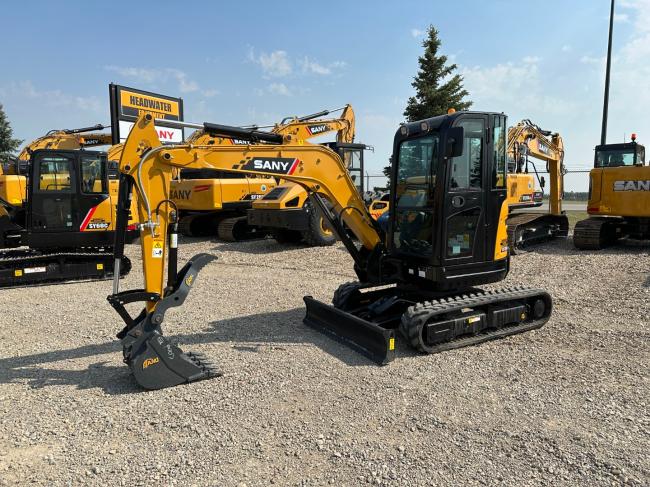

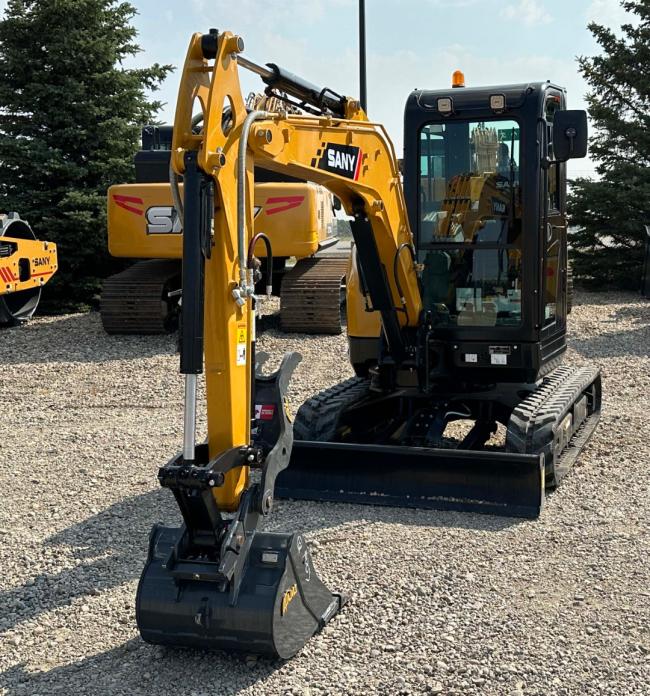

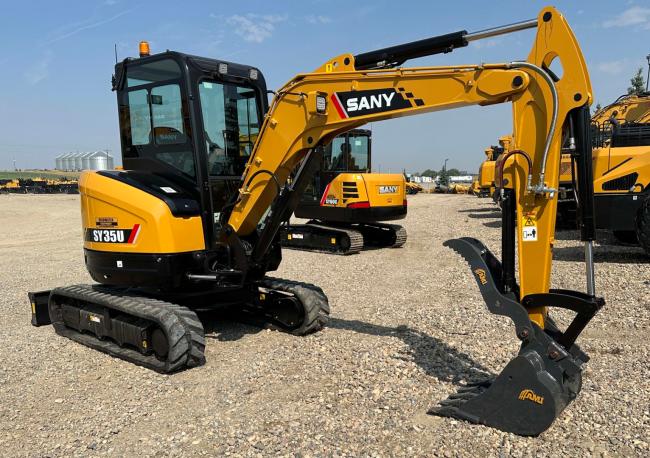

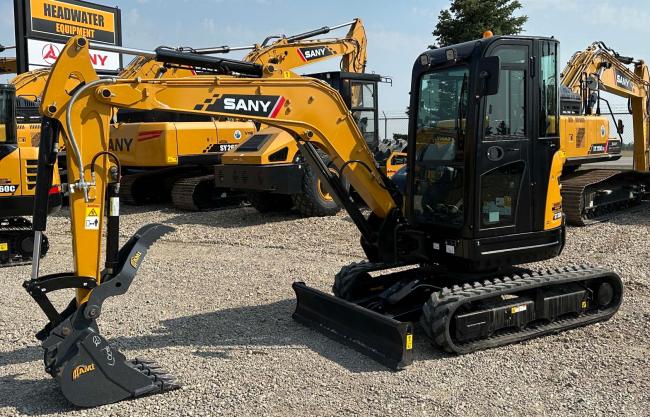

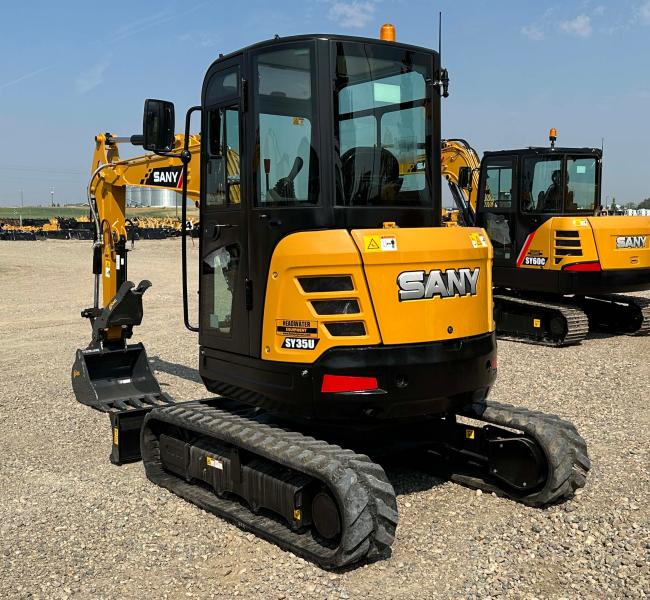

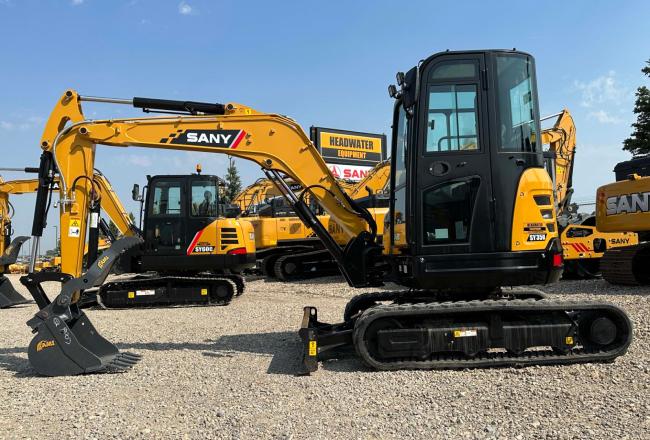

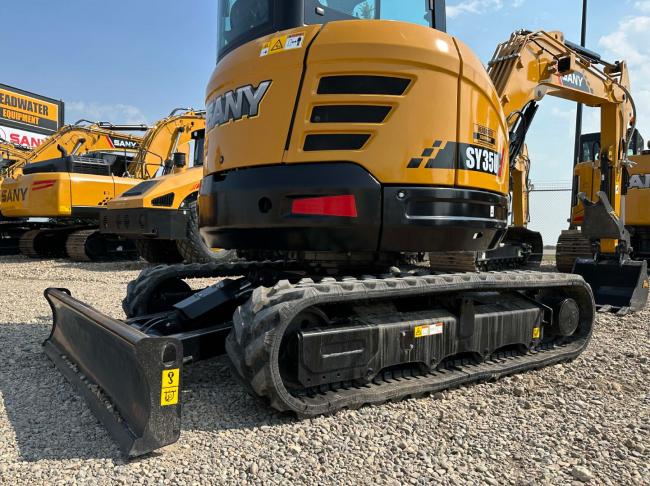

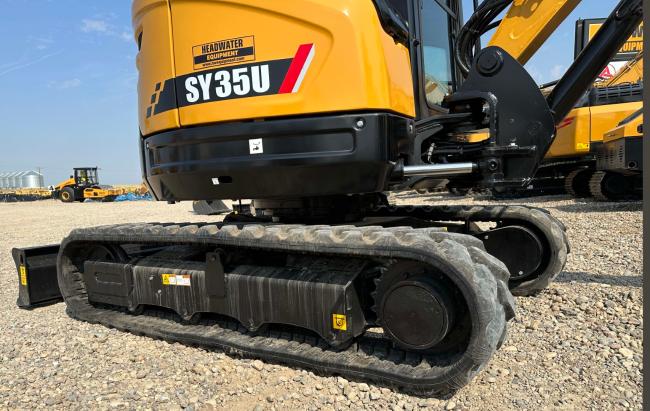

SANY SY35U

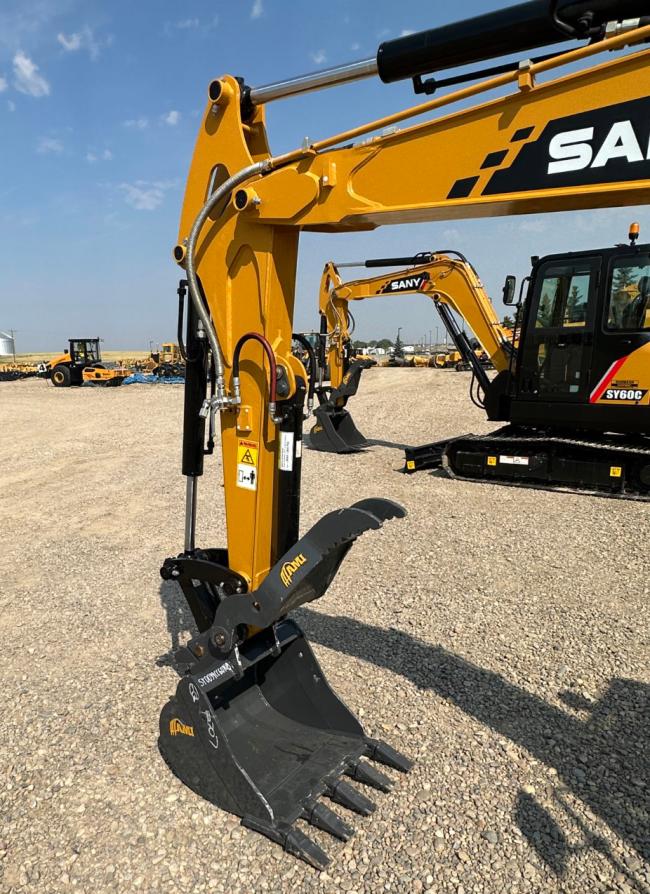

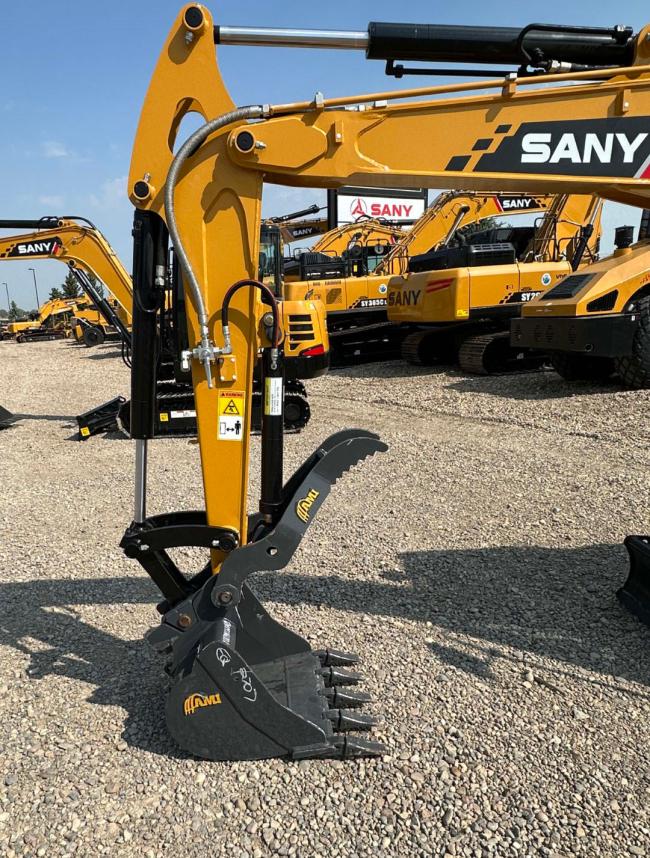

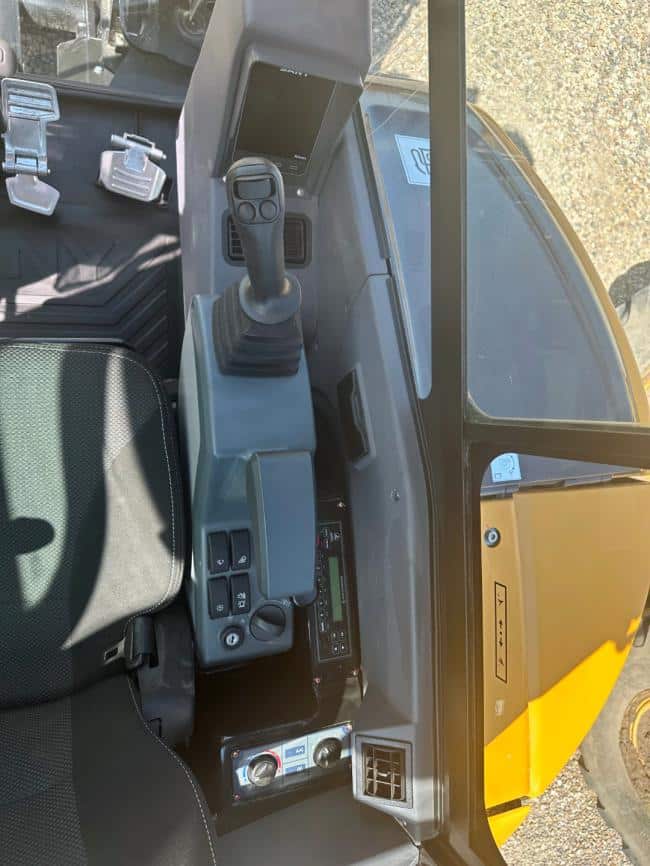

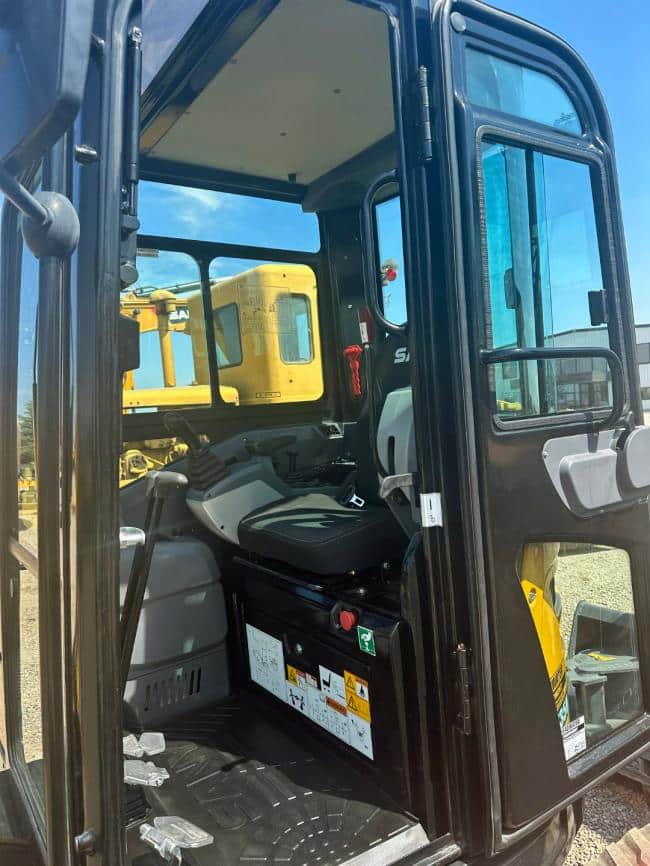

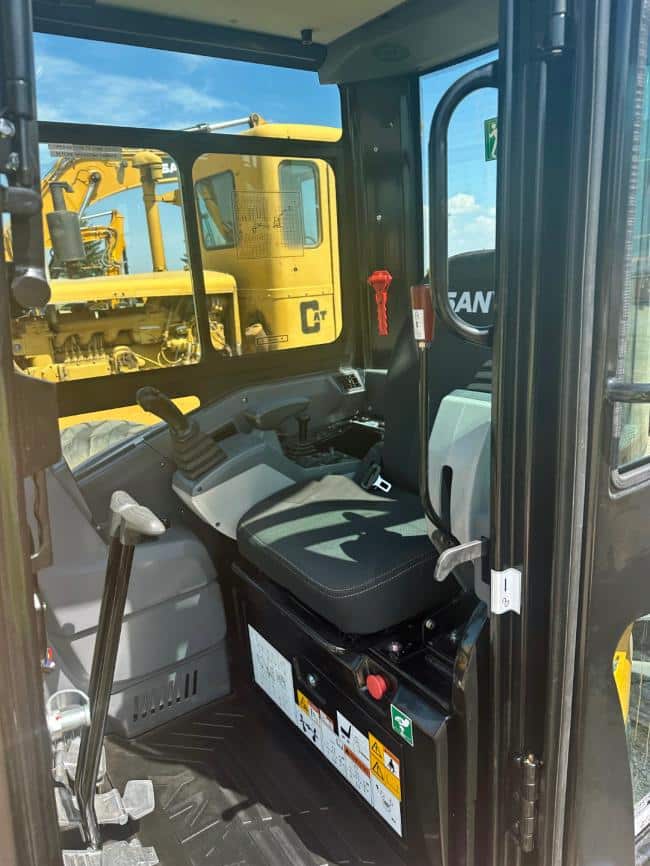

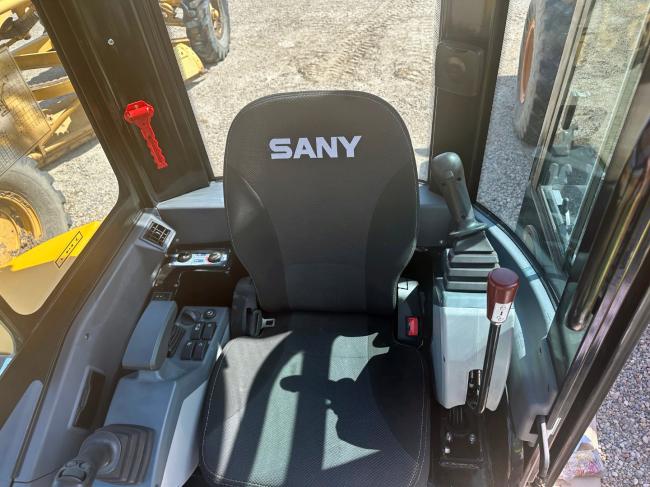

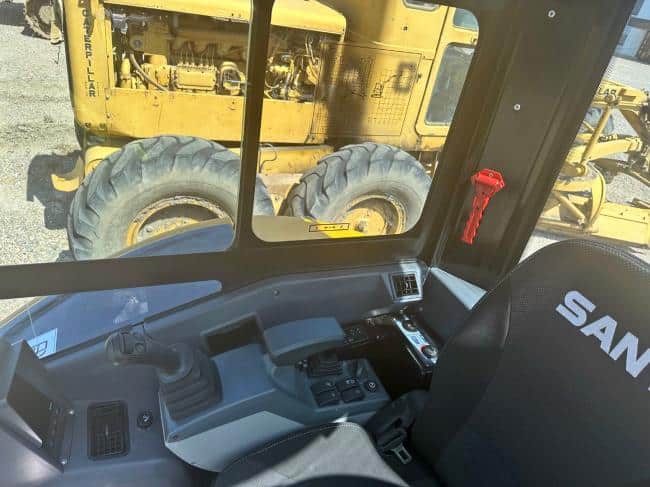

Everyone’s favorite mini, the SY35U packs powerful lift and dig performance in a compact design. SANY’s outfitted this excavator with all the standard features you need and none of the over-engineered features that squeeze your wallet. With a swing boom and true zero tail swing, you can work against obstructions and maneuver in tight spaces. In addition, you’ll have the versatility to run a wide variety of powered attachments from buckets to breakers, as well as thumbs and quick couplers. We’ve also optimized logistics by making the SY35U trailer ready with clear and intuitive tie-down points to ensure safety during transport. The cab model is outfitted with heat and air to keep operators comfortable year-round. Your investment is protected every step of the way, from outstanding reliability to the industry’s strongest standard warranty of 5 years/5,000 hours.
| Technical Specifications - Hydraulics: | Load Sensing with Pilot Control |
|---|---|
| Overall Dimensions - Transport Length: | 16'2" (4915 mm) |
| Overall Dimensions - Cab Height: | 8' 2" (1,250 mm) |
| Technical Specifications - Swing Speed (maximum): | 9 rpm |
| Working Range - Stick (Arm) Length: | 4'7" (1400 mm) |
| Working Range - Boom Length: | 8'4" (2540 mm) |
| Technical Specifications - Gross Power: | 24.4 hp (18.2 kW) |
| Overall Dimensions - Upper Structure Width: | 5'1" (1550 mm) |
| Technical Specifications - Travel Motor: | Axial Piston with Park Brake |
| Technical Specifications - Carrier Rollers (per side): | 1 |
| Overall Dimensions - Track Gauge: | 4'8" (1420 mm) |
| Working Range - Maximum Dumping Height: | 11'4" (3460 mm) |
| ropstype: | Open |
| Technical Specifications - Ground Pressure: | 4.6 psi (32.0 kPa) |
| Technical Specifications - Operating Pressure (maximum): | 3553 psi (24.5 MPa) |
| Technical Specifications - Undercarriage (standard): | Belted Rubber Track |
| Working Range - Maximum Swing Radius: | 8'1" (2475 mm) |
| Overall Dimensions - Track Width (standard shoe): | 12" (300 mm) |
| Technical Specifications - Main Hydraulic Pump: | Axial Piston-Variable Displacement |
| Technical Specifications - Operating Flow (maximum): | 23.2 gal/min (88.0 L/min) |
| Working Range - Maximum Vertical Wall Digging Depth: | 8'10" (2700 mm) |
| Technical Specifications - Displacement: | 97.6 in³ (1.6 L) |
| Technical Specifications - Engine: | Yanmar 3TNV88F |
| Overall Dimensions - Transport Height: | 8'3" (2515 mm) |
| Technical Specifications - Swing Pressure (maximum): | 2988 psi (20.6 MPa) |
| Overall Dimensions - Transport Width: | 5'8" (1720 mm) |
| Overall Dimensions - Track Length: | 7'1" (2155 mm) |
| Working Range - Maximum Digging Height: | 15'11" (4855 mm) |
| Overall Dimensions - Track Length on Ground: | 5'6" (1670 mm) |
| Working Range - Maximum Reach at Ground Level: | 17'11" (5465 mm) |
| Working Range - Maximum Digging Depth: | 10'2" (3105 mm) |
| Technical Specifications - Travel Effort (maximum): | 8,273 lbf (36.8 kN) |
| Technical Specifications - Operating Weight: | 8,499 lbs (3855 kg) |
| Overall Dimensions - Tail Swing Radius: | 2'10" (860 mm) |
| Technical Specifications - Track Shoe Width (standard): | 12" (300 mm) |
| Technical Specifications - Swing Motor: | Axial Piston with Swing Brake |
| Technical Specifications - Grade Capability: | 35˚ |
| Technical Specifications - Travel Speeds (maximum): | 1.5/2.7 mph (2.4/4.4 km/hr) |
| Overall Dimensions - Blade Height: | 14" (350 mm) |
| Overall Dimensions - Stick (Arm) Length: | 4'7" (1400 mm) |
| Technical Specifications - Travel Pressure (maximum): | 3553 psi (24.5 MPa) |
| Technical Specifications - Track Rollers (per side): | 4 |
| Overall Dimensions - Ground Clearance (minimum): | 12" (295 mm) |
| Overall Dimensions - Boom Length: | 8'4" (2540 mm) |
Features
- The tier 4 final power plant, advanced SLSS hydraulic system, optimal power control and work mode selection improve speed and power while reducing fuel consumption
- Zero tail swing radius
- Comes with Sany's Industry Leading 5 Year/5,000 Hour Warranty

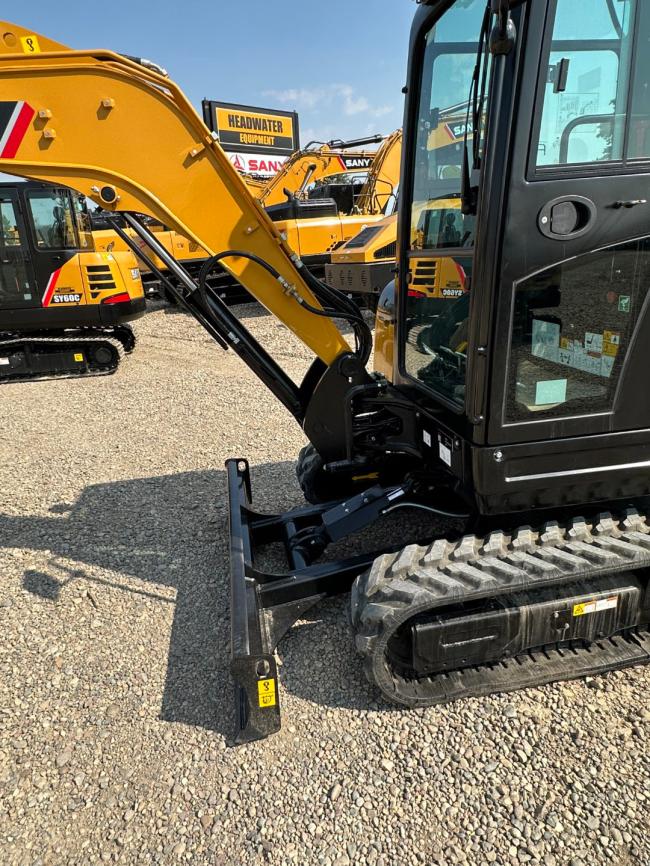

- Swing Away Boom
- Pattern Control Changer

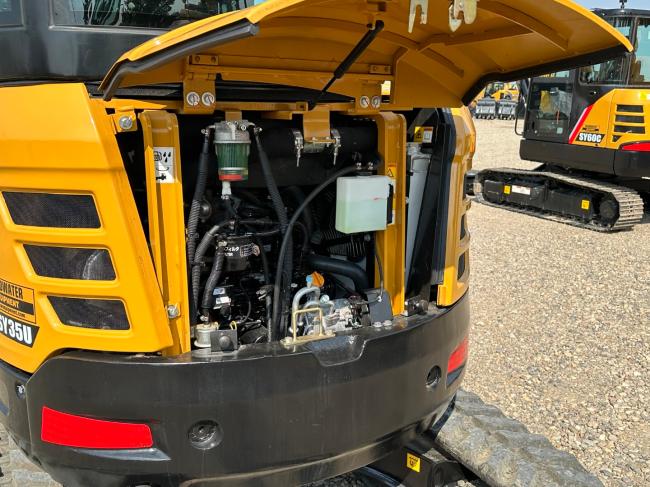

- Easily accessible service points and a detachable radiator screen are among the features that make scheduled maintenance more convenient
- Two set of auxiliary circuits with return to tank
