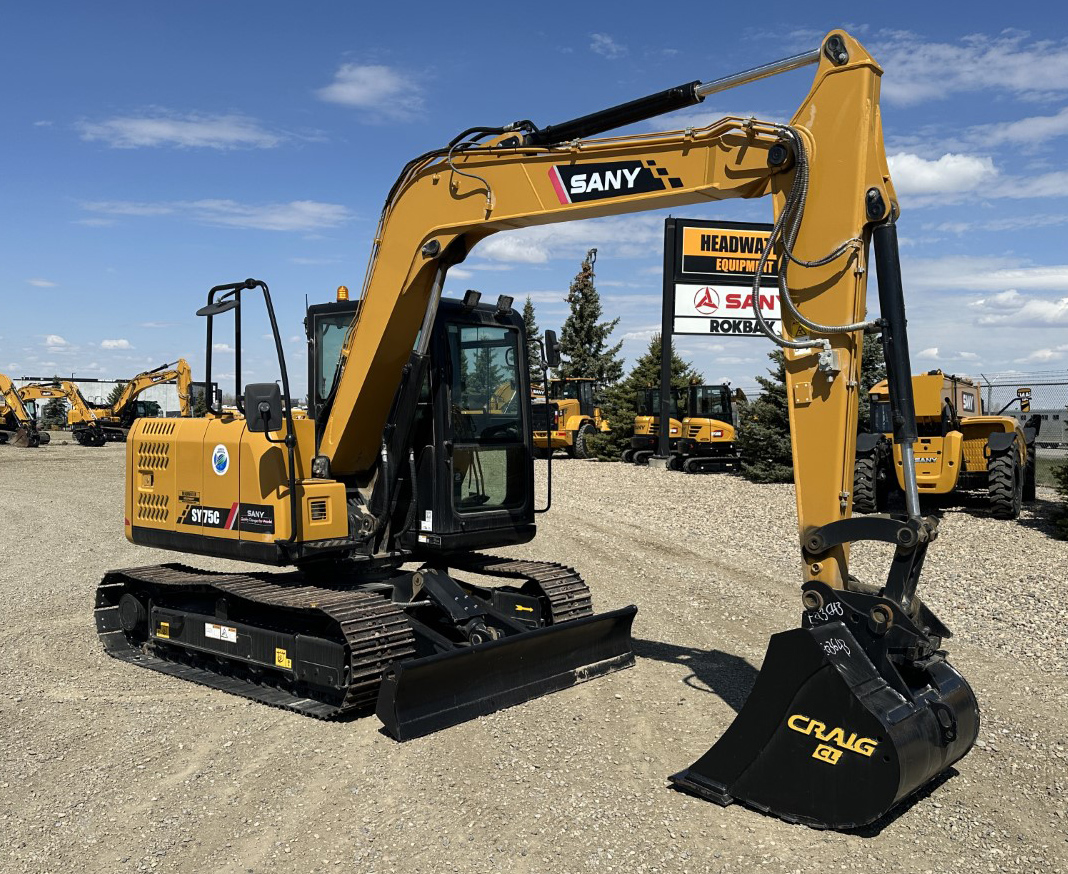

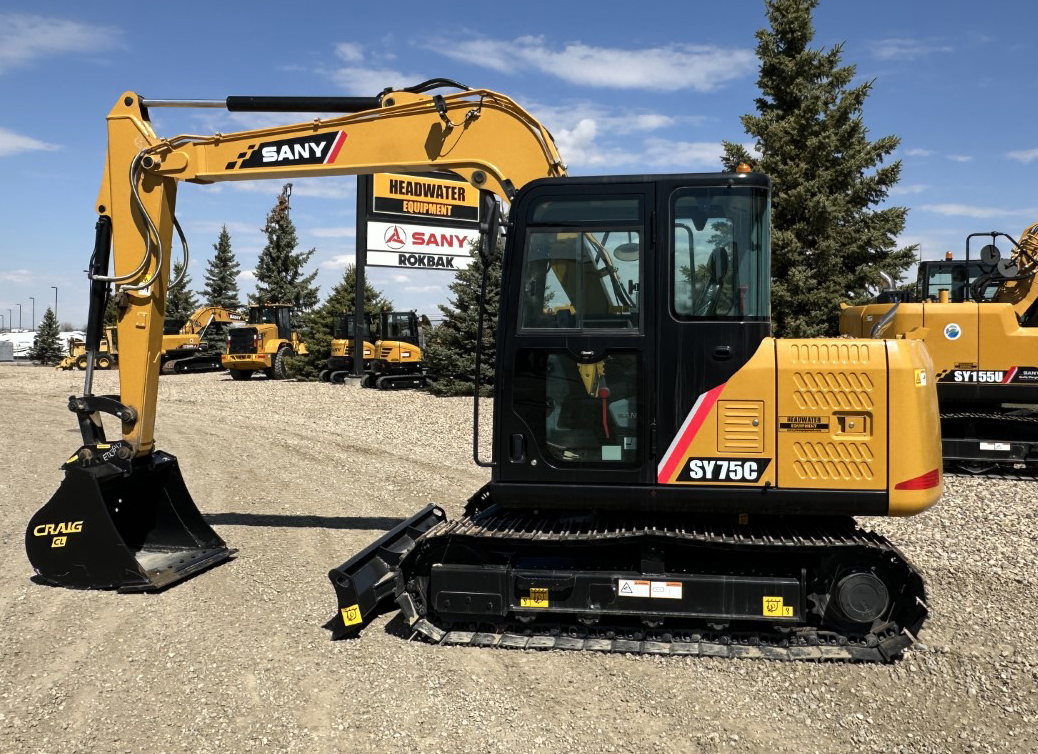

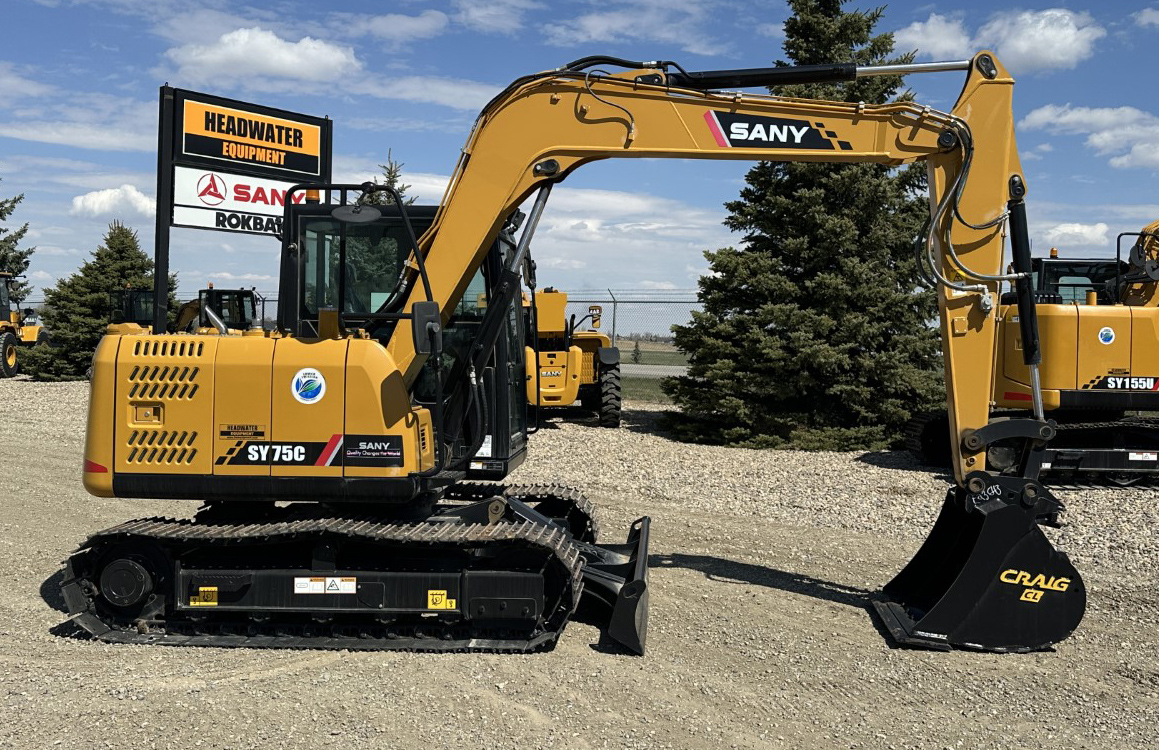

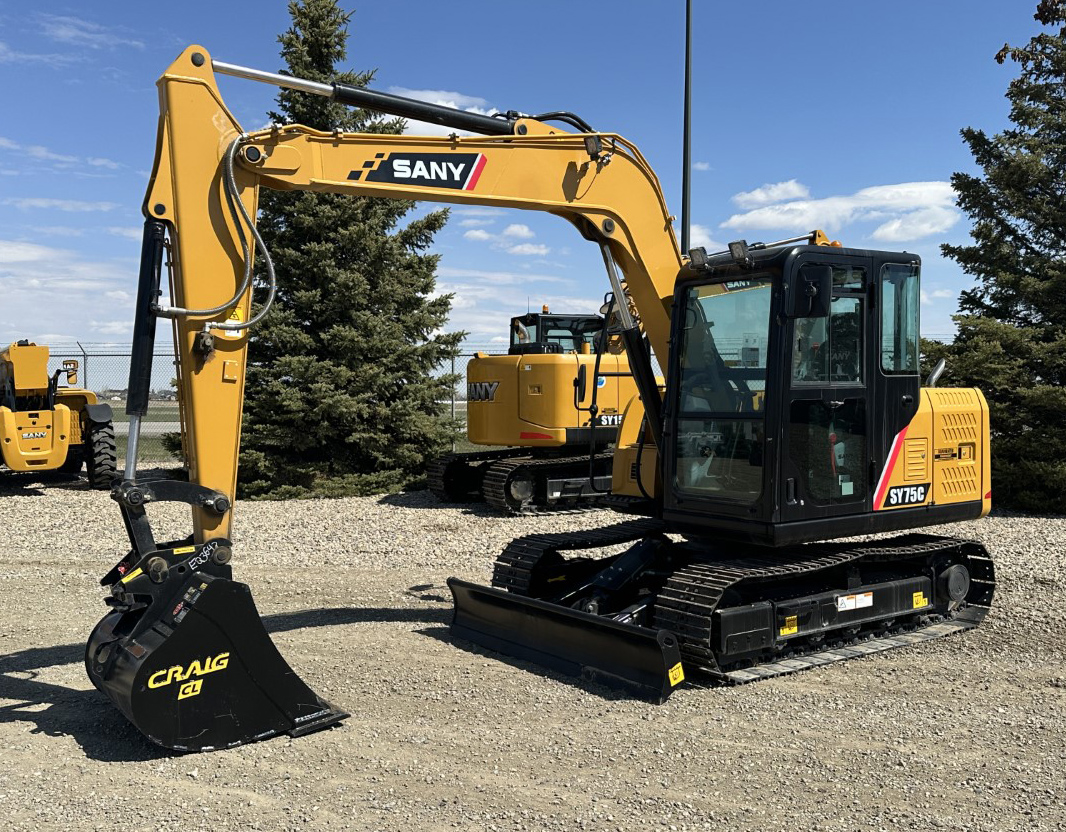

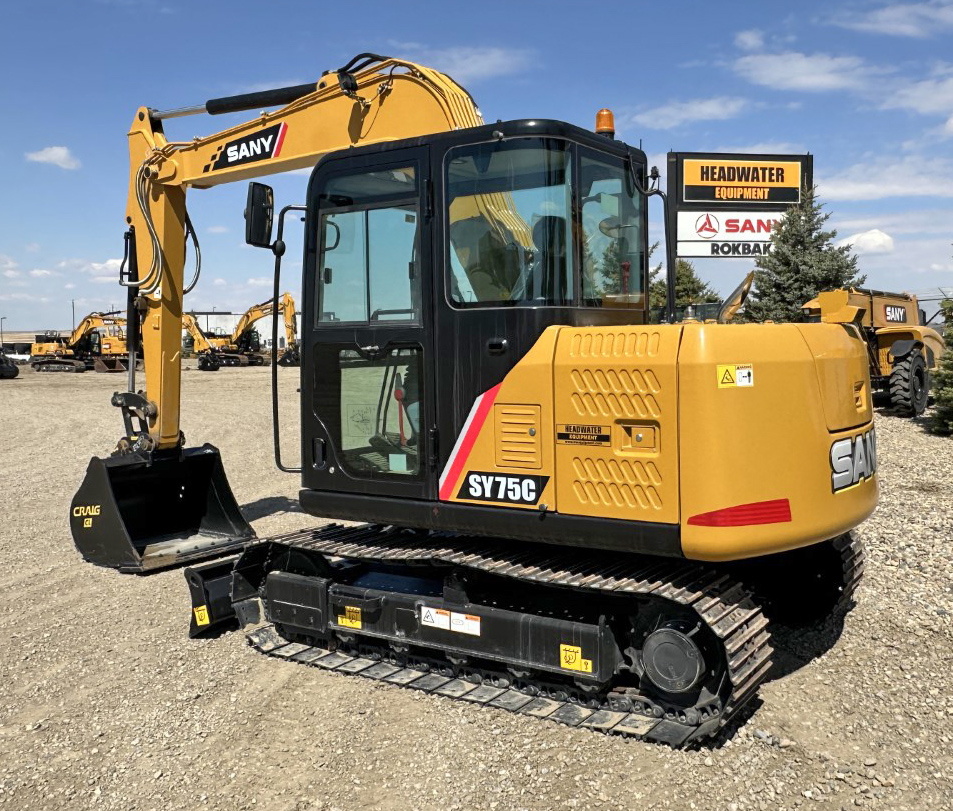

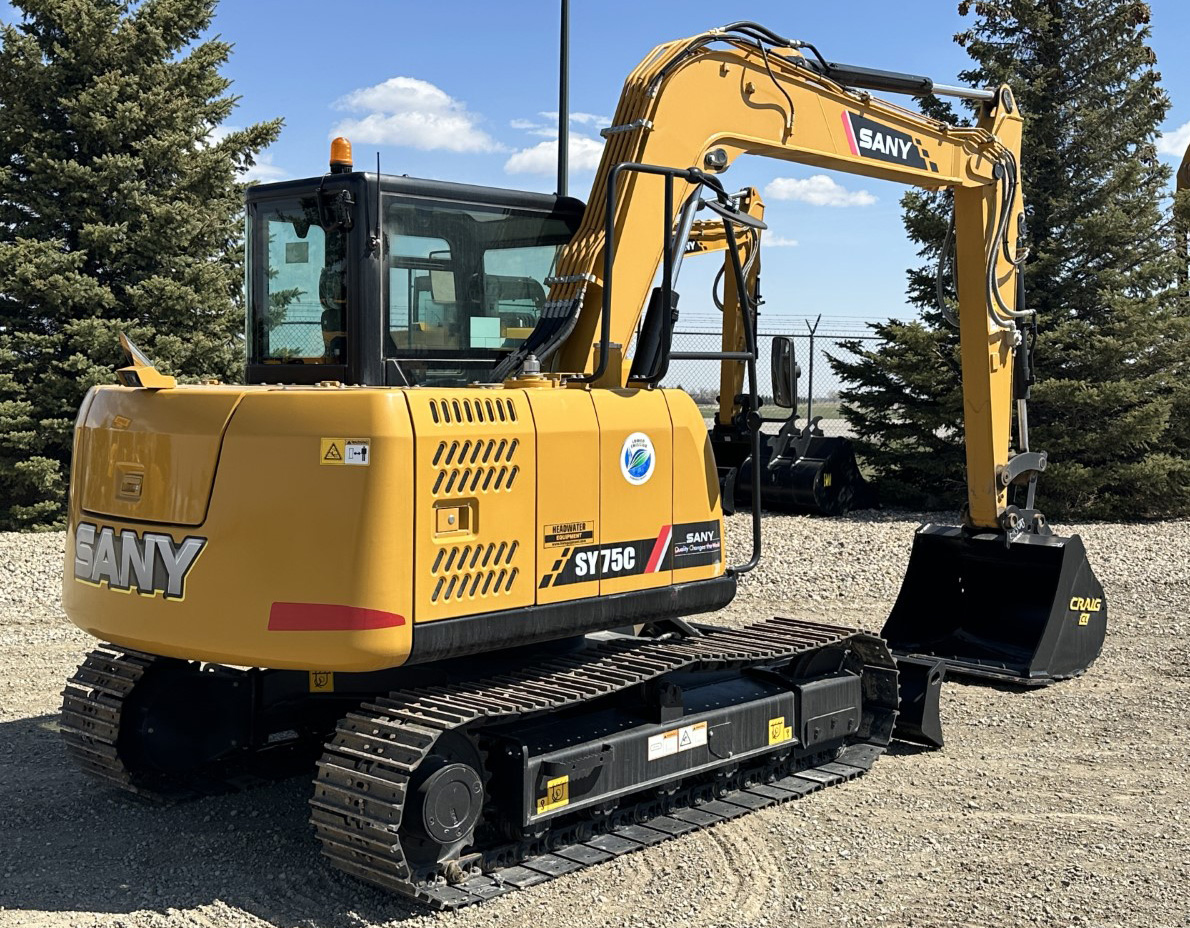

SANY SY75C
Find Out More
Built tough with reinforced boom, arm, swing platform and undercarriage, the SY75C boasts an efficient and reliable Isuzu T4F engine. Featuring joystick controls and a bi-directional auxiliary hydraulic system, this compact excavator proves you don’t have to trade size for performance. The comfortable cockpit features heating and AC for all-day operation in any climate, and the maintenance-friendly design allows for quick access to all service points to minimize downtime.
Technical Specifications
| Swing Speed (Maximum) | 10.5 rpm |
|---|---|
| Gross Power | 57.7 HP (43.0 kW) |
| Travel Effort (Maximum) | 12,769 lbf (56.8 kN) |
| Track Shoe Width (standard) | 18" (450 mm) |
| Travel Motor | Axial Piston with Park Brake |
| Operating Flow (Maximum) | 39.4 gal/min (149.0 L/min) |
| Engine Displacement | 134.3 in³ (2.2 L) |
| Hydraulics | Load Sensing with Pilot Control |
| Operating Weight | 16,050 lb (7280 kg) |
| Carrier Rollers (per side) | 1 |
| Operating Pressure (Maximum) | 3814 psi (26.3 MPa) |
| Travel Speeds (Maximum) | 1.7/3.3 mph (2.8/5.3 km/hr |
| Swing Motor | Axial Piston with Swing Brake |
| Main Hydraulic Pump | Axial Piston - Variable Displacement |
| Swing Pressure (Maximum) | 3133 psi (21.6 MPa) |
| Travel Pressure (Maximum) | 3814 psi (26.3 MPa) |
| Ground Pressure | 4.8 psi (33.0 kPa) |
| Undercarriage (standard) | Belted Rubber Track |
| Engine Type | Isuzu CP-4LE2XA3C-01 |
| Track Rollers (per side) | 5 |
| Grade Capability | 35˚ |
Overall Dimensions
| Track Length | 9'3" (2820 mm) |
|---|---|
| Track Length on Ground | 7'2" (2195 mm) |
| Track Gauge | 5'9" (1750 mm) |
| Upper Structure Width | 6'8" (2040 mm) |
| Track Width (standard shoe) | 18" (450 mm) |
| Minimum Ground Clearance | 15" (380 mm) |
| Blade Height | 16" (405 mm) |
| Tail Swing Radius | 5'11" (1800 mm) |
| Boom Length | 12'2" (3720 mm) |
| Transport Height | 8'11" (2720 mm) |
| Transport Width | 7'3" (2220 mm) |
| Transport Length | 20'1" (6121 mm) |
| Stick (Arm) Length | 6'9" (2050 mm) |
Working Range
| Maximum Digging Height | 24'3" (7390 mm) |
|---|---|
| Maximum Swing Radius | 6'4" (1940 mm) |
| Stick (Arm) Length | 6'9" (2050 mm) |
| Maximum Dumping Height | 18'0" (5490 mm) |
| Maximum Digging Depth | 14'7" (4450 mm) |
| Maximum Vertical Wall Digging Depth | 12'7" (3840 mm) |
| Boom Length | 12'2" (3720 mm) |
| Maximum Digging Reach at Ground Level | 21'4" (6505 mm) |
Features
- Extra reinforcements in the boom, arm, swing platform and undercarriage increase stability and service life
- Selectable working modes match machine performance to the application, maximizing productivity and minimizing operating costs

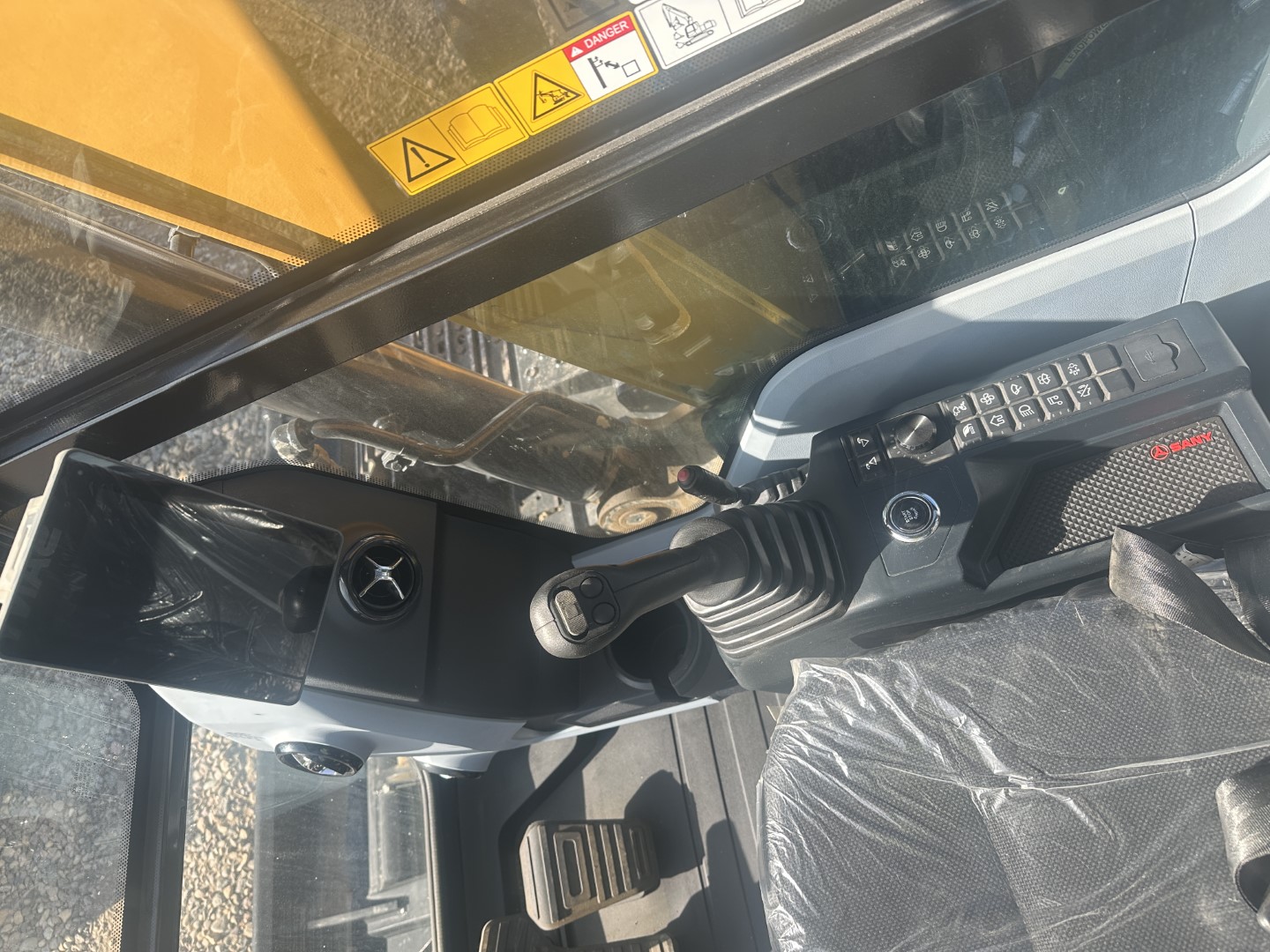

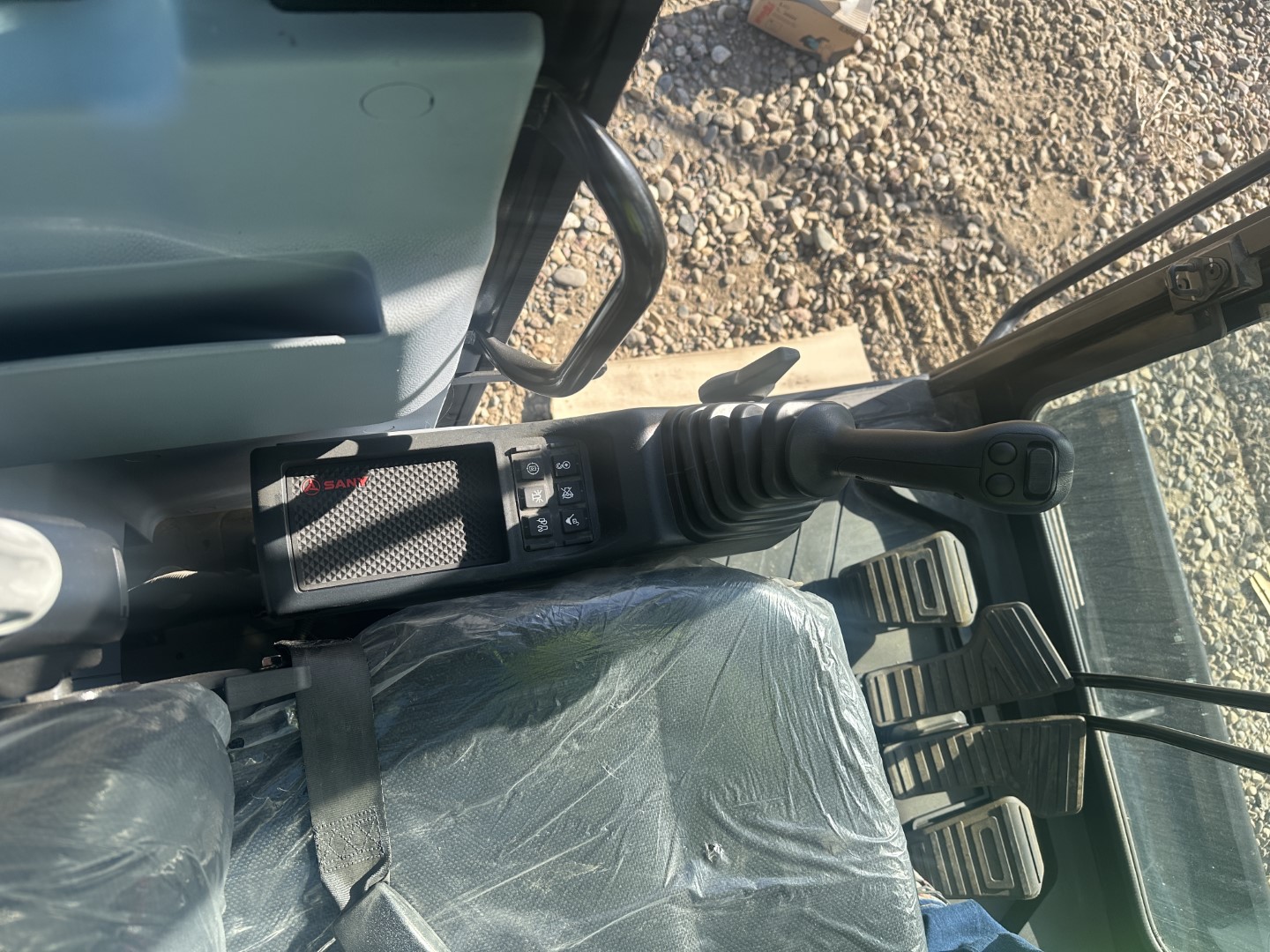

- Joystick controls and a bi-directional auxiliary hydraulic system
- Comes with Sany's Industry Leading 5 Year/5,000 Hour Warranty
