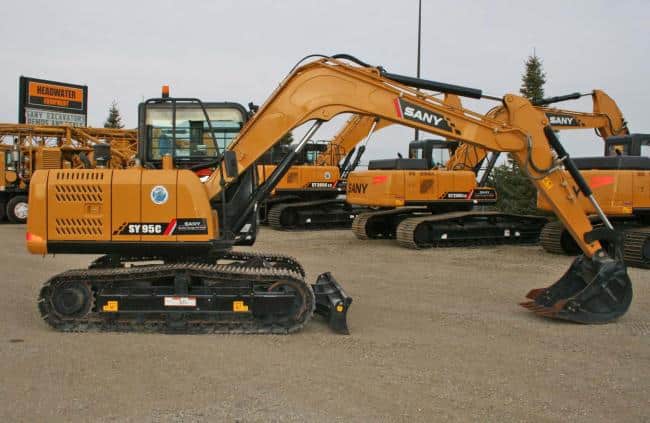

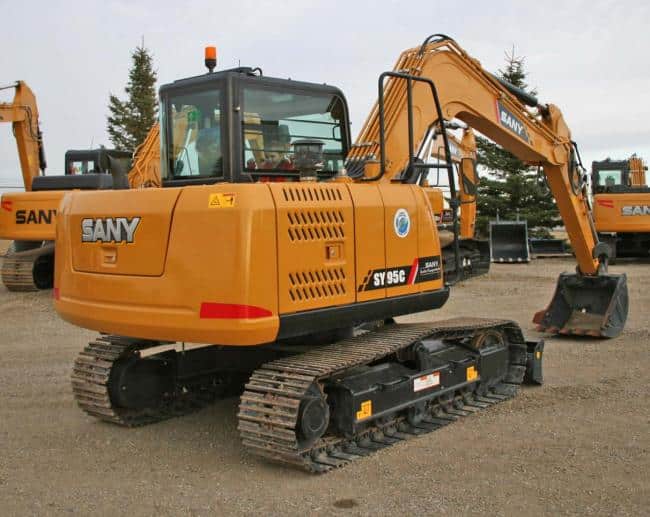

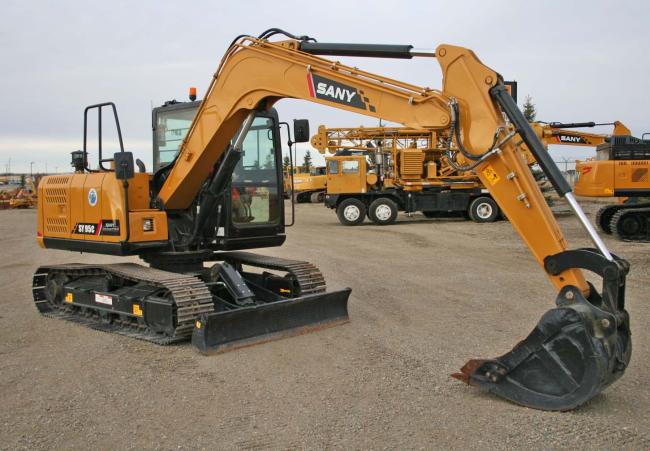

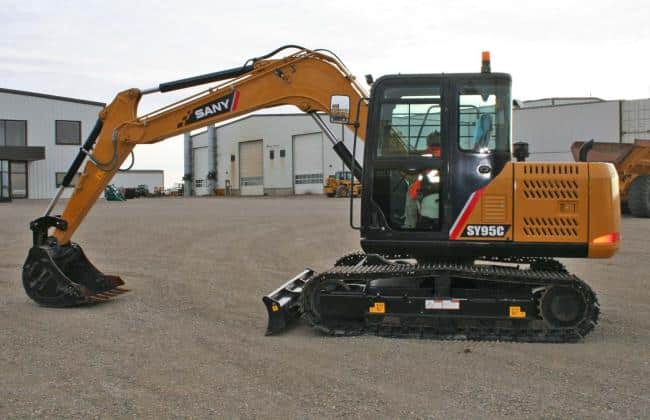

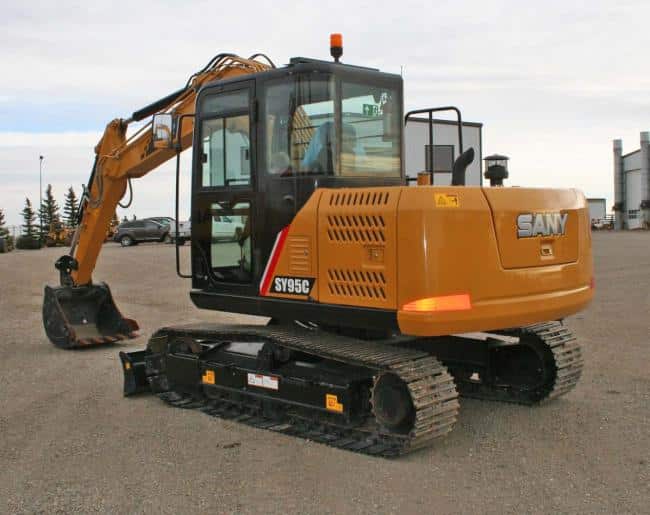

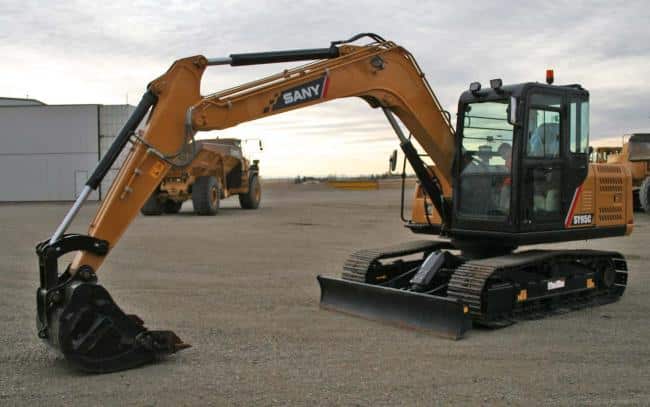

SANY SY95C
Find Out More
The SANY SY95C is a robust 9.2-tonne compact excavator packed with power and efficiency. It’s powered by a 53.7 kW (≈ 72 hp) Yanmar engine and features load-sensing hydraulics that adapt to workload, helping cut fuel usage while maintaining performance. With a digging depth of about 14 ft 2 in (≈ 4.33 m) and a strong bucket breakout force over 60 kN, it can handle demanding digging and lifting jobs. The machine also includes operator-friendly touches like a large color display, proportional auxiliary controls for attachments, LED work lights, and a compact transport width (~2.26 m) for maneuvering in tighter sites.
Overall Dimensions
| Transport Width | 7'5" (2260 mm) |
|---|---|
| Transport Height | 10'6" (3200 mm) |
| Transport Length | 21'6" (6560 mm) |
| Boom Length | 13'1" (4000 mm) |
| Stick (Arm) Length | 6'7" (2000 mm) |
| Track Width (standard shoe) | 18" (450 mm) |
| Track Gauge | 5'11" (1810 mm) |
| Track Length on Ground | 7'8" (2340 mm) |
| Track Length | 9'9" (2980 mm) |
| Minimum Ground Clearance | 14" (360 mm) |
| Upper Structure Width | 7'1" (2160 mm) |
| Tail Swing Radius | 6'2" (1885 mm) |
| Blade Height | 17" (420 mm) |
Technical Specifications
| Operating Weight | 20,238 lbs (9180 kg) |
|---|---|

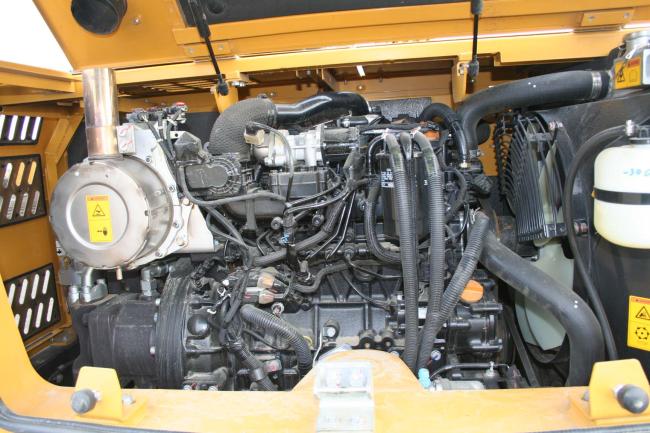

| Engine Type | Yanmar 4TN98CT-VSY |
| Gross Power | 72 HP (53.7 kW) |
| Engine Displacement | 201.4 in³ (3.3 L) |
| Hydraulics | Load Sensing with Pilot Control |

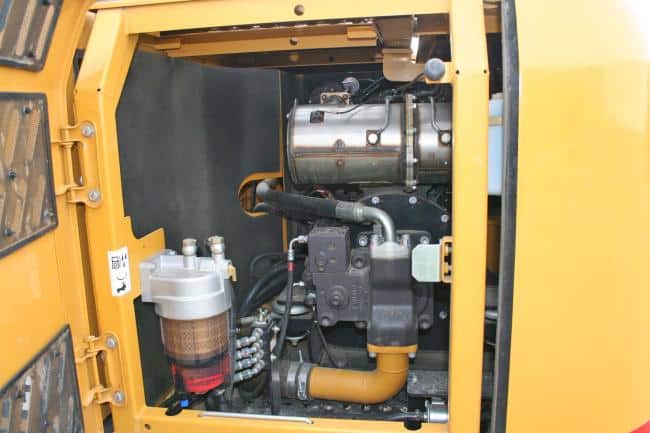

| Main Hydraulic Pump | Axial Piston - Variable Displacement |
| Operating Flow (Maximum) | 52.7 gal/min (199.5 L/min) |
| Operating Pressure (Maximum) | 3814 psi (26.3 MPa) |
| Swing Motor | Axial Piston with Swing Brake |
| Swing Pressure (Maximum) | 3118 psi (21.5 MPa) |
| Swing Speed (Maximum) | 11 rpm |
| Travel Motor | Axial Piston with Park Brake |
| Travel Speeds (Maximum) | 1.8/3.1 mph (2.9/5.0 km/hr) |
| Travel Effort (Maximum) | 18,659 lbf (83.0 kN) |
| Travel Pressure (Maximum) | 3814 psi (26.3 MPa) |
| Grade Capability | 35˚ |
| Ground Pressure | 5.6 psi (38.6 kPa) |
| Undercarriage (standard) | Steel Track |
| Track Shoe Width (standard) | 18" (450 mm) |
| Track Rollers (per side) | 5 |
| Carrier Rollers (per side) | 1 |
Working Range
| Boom Length | 13'1" (4000 mm) |
|---|---|
| Stick (Arm) Length | 6'7" (2000 mm) |
| Maximum Dumping Height | 17'1" (5210 mm) |
| Maximum Digging Depth | 14'2" (4330 mm) |
| Maximum Digging Reach at Ground Level | 21'10" (6660 mm) |
| Maximum Vertical Wall Digging Depth | 10'1" (3080 mm) |
| Maximum Digging Height | 23'10" (7260 mm) |
| Maximum Swing Radius | 6'6" (1990 mm) |
Features
- Optimized load sensing hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%
- Comes with Sany's Industry Leading 5 Year/5,000 Hour Warranty
- Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications
- Joystick controls and a bi-directional auxiliary hydraulic system
