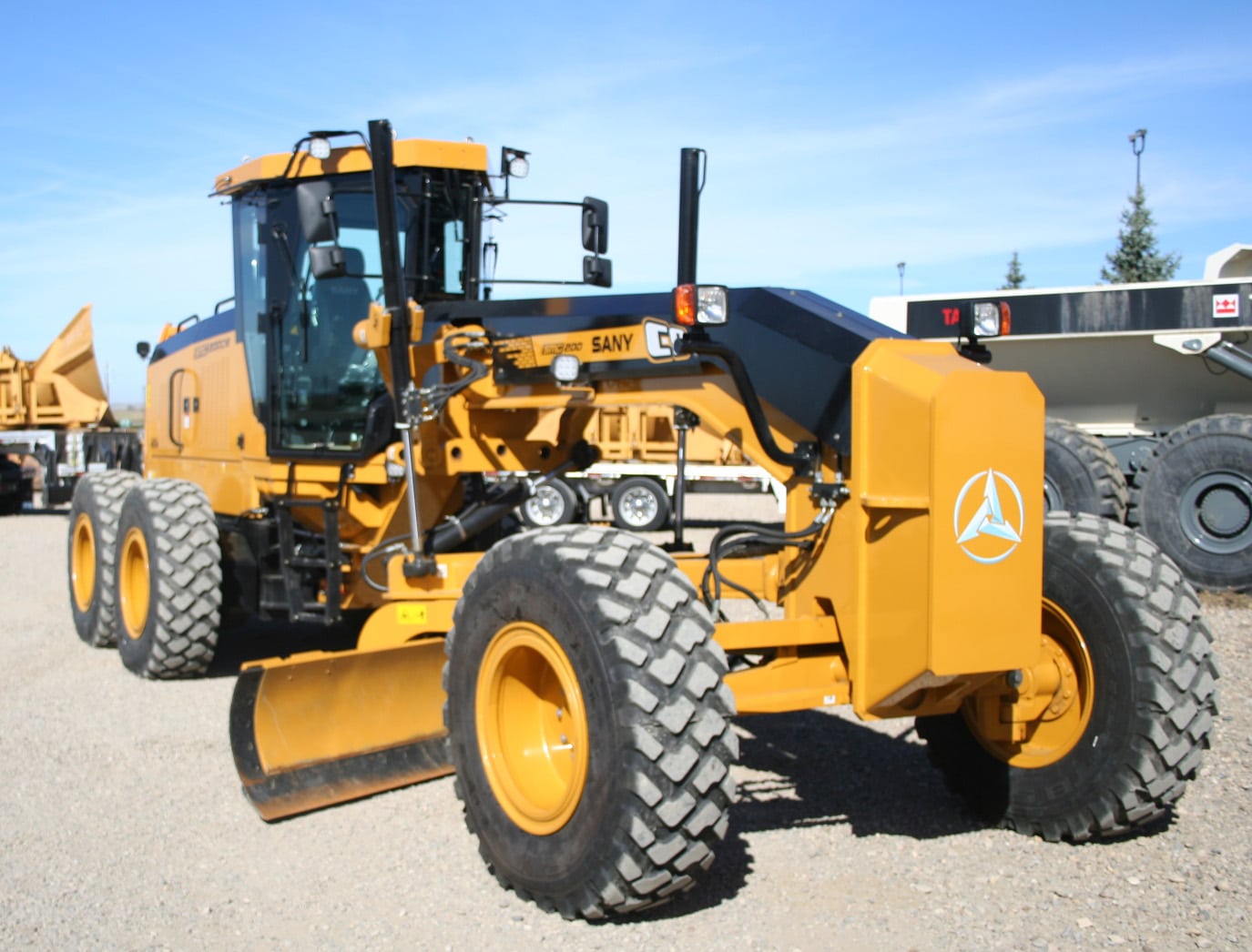

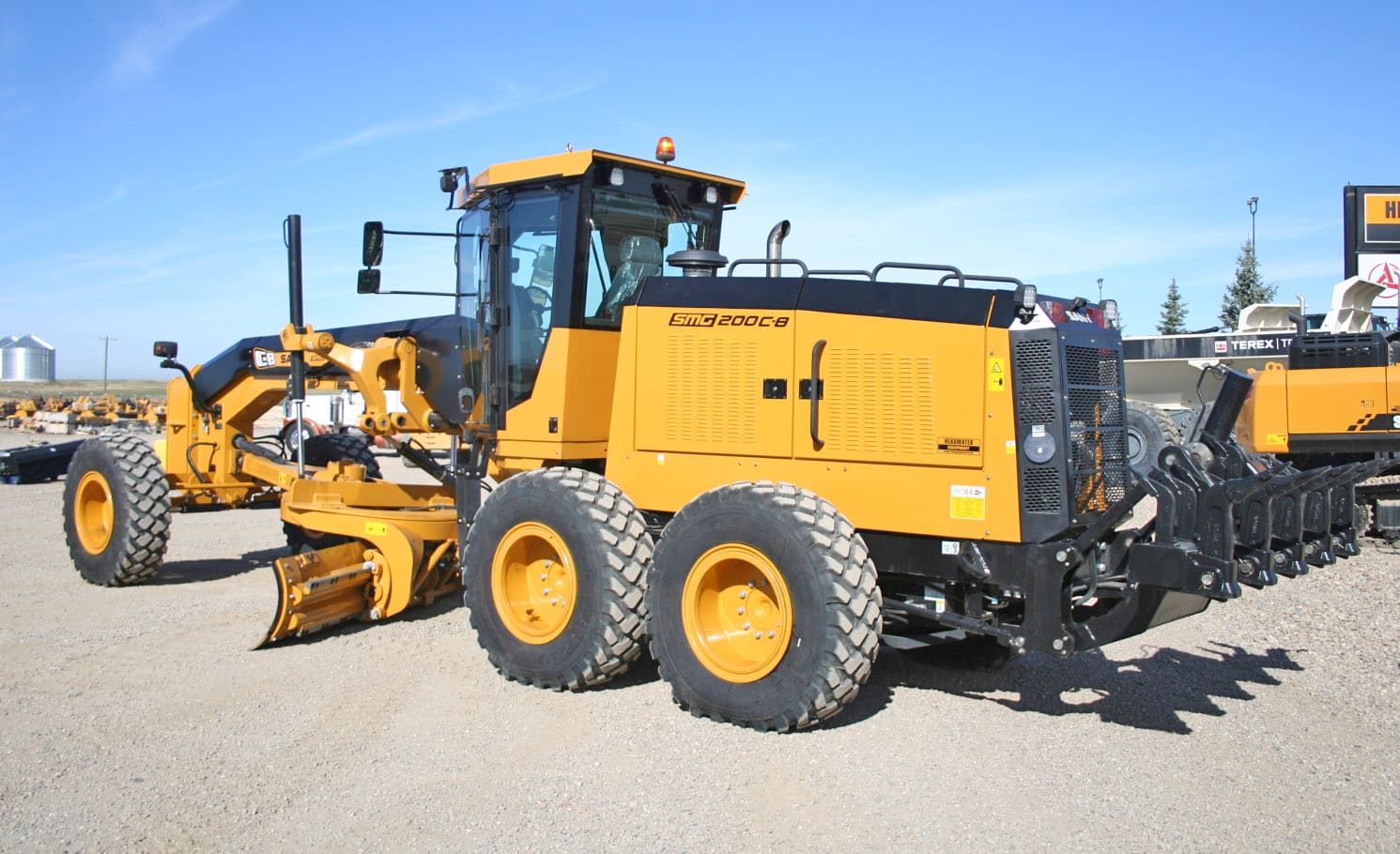

SANY SMG200C-8
Find Out More

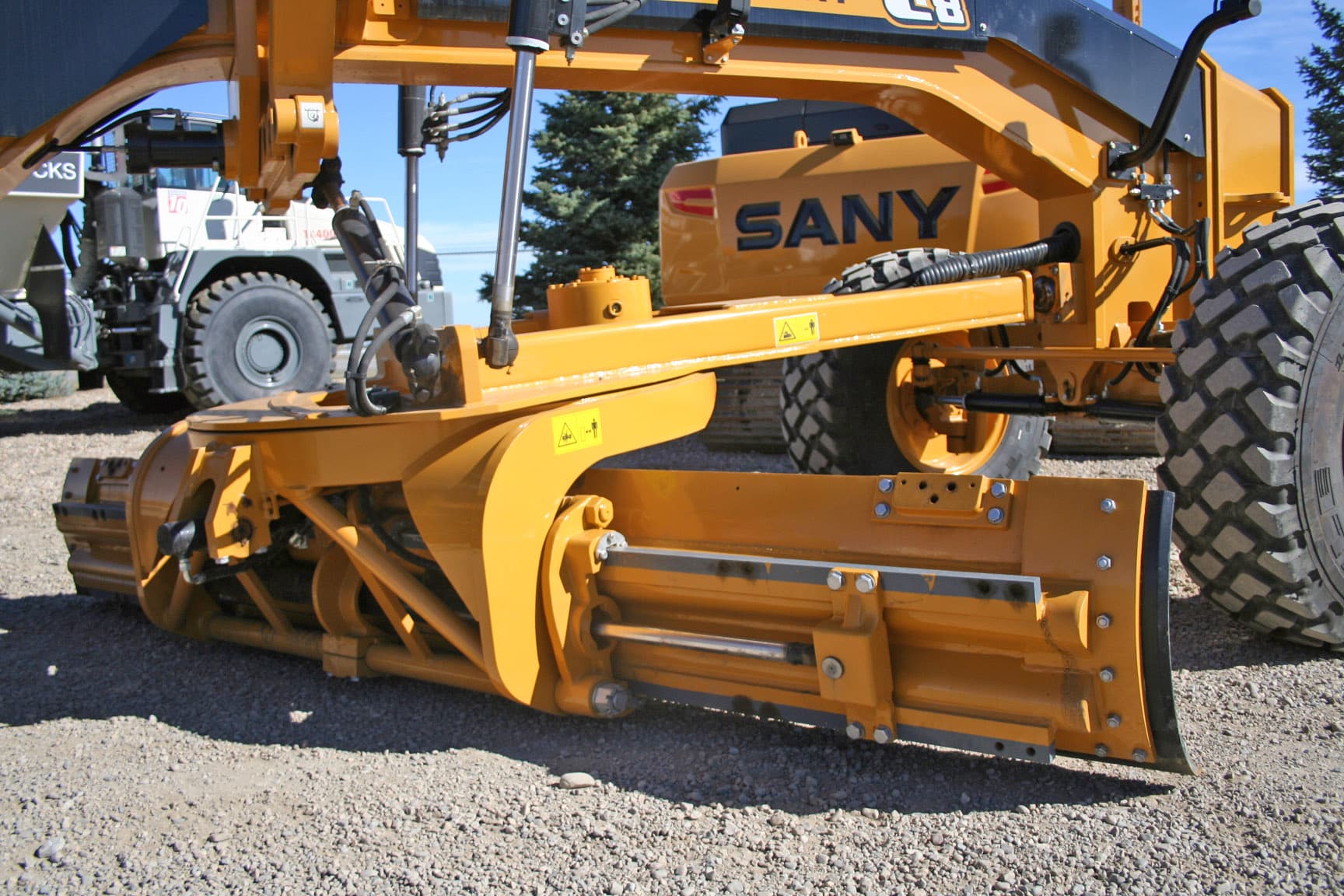

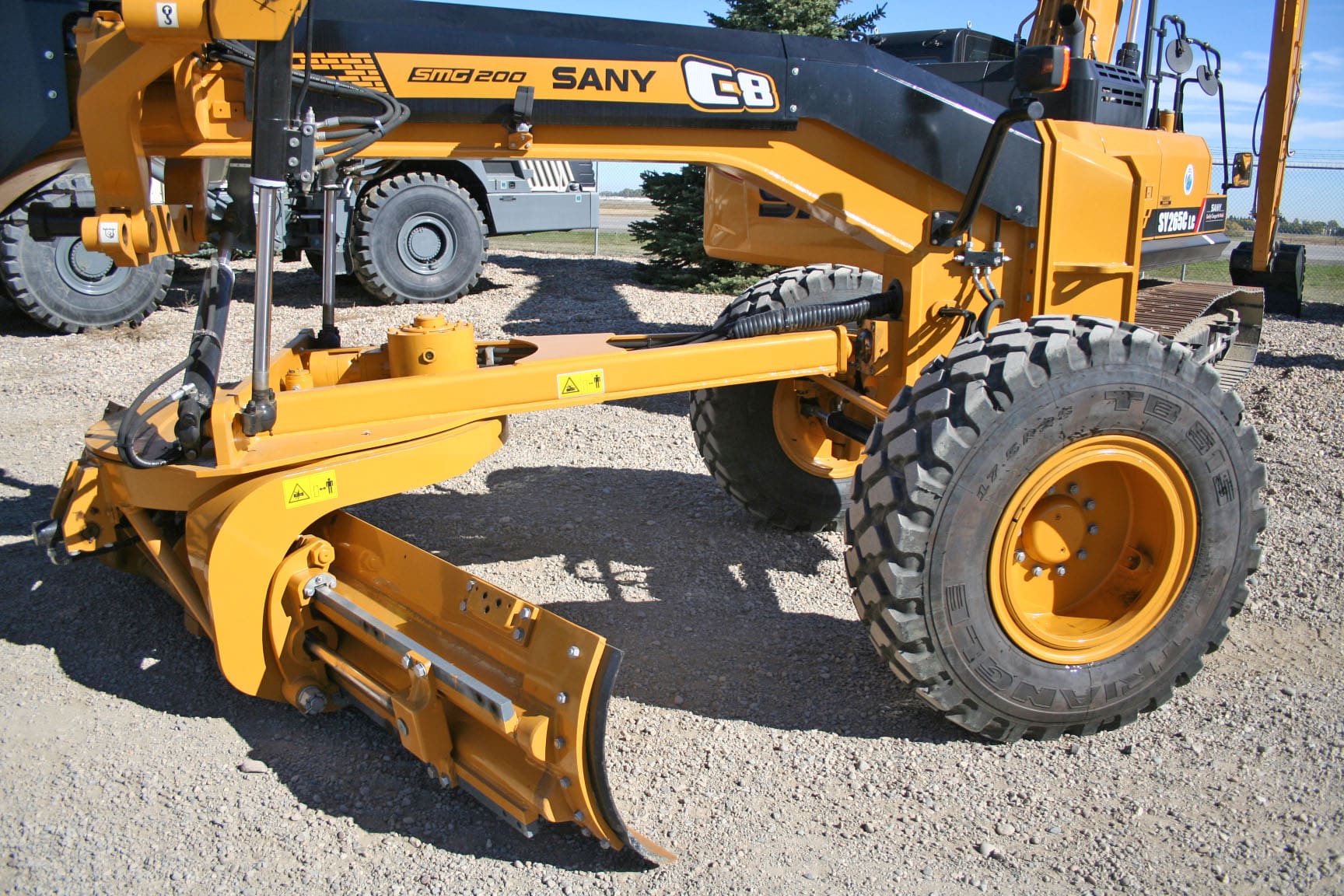

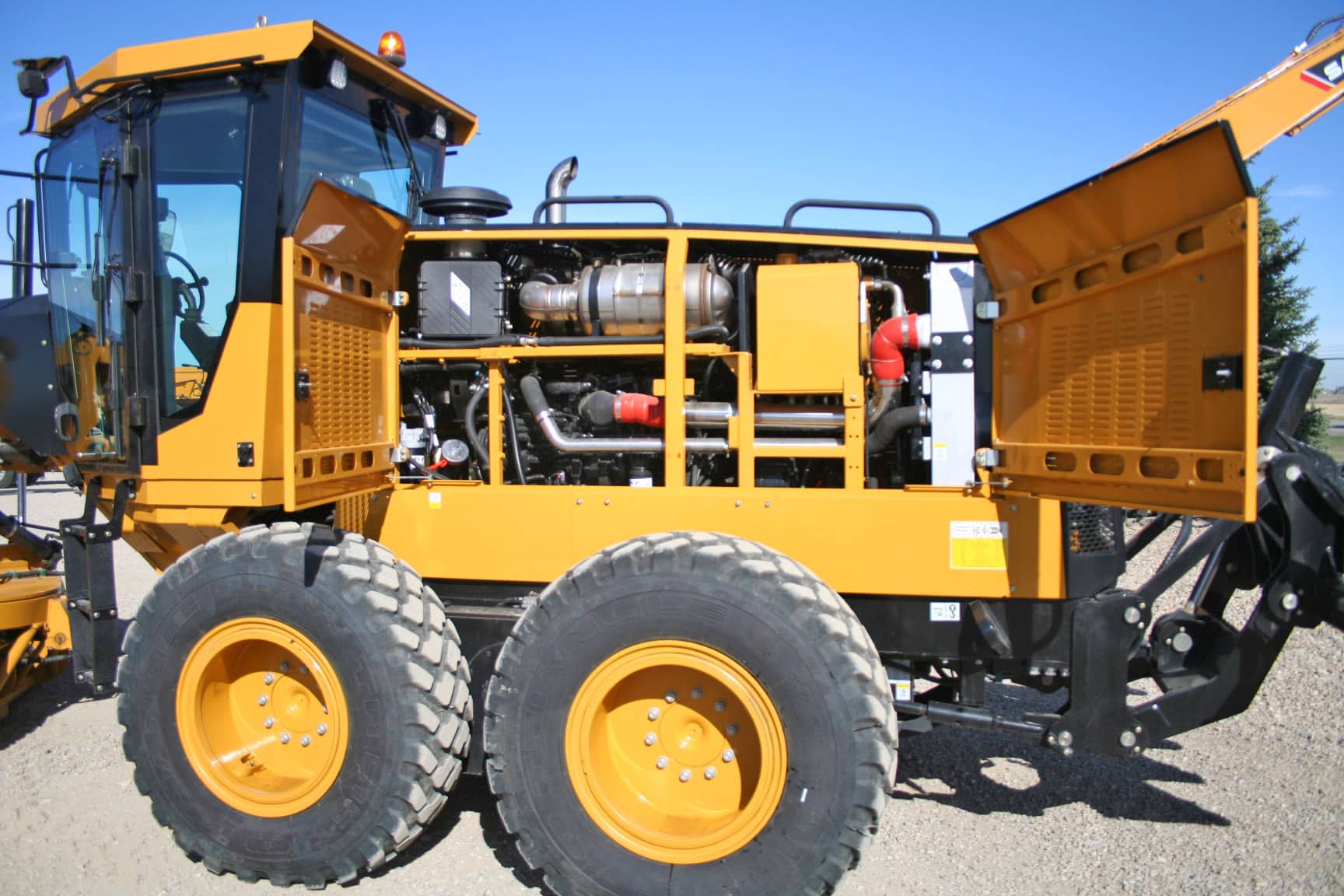

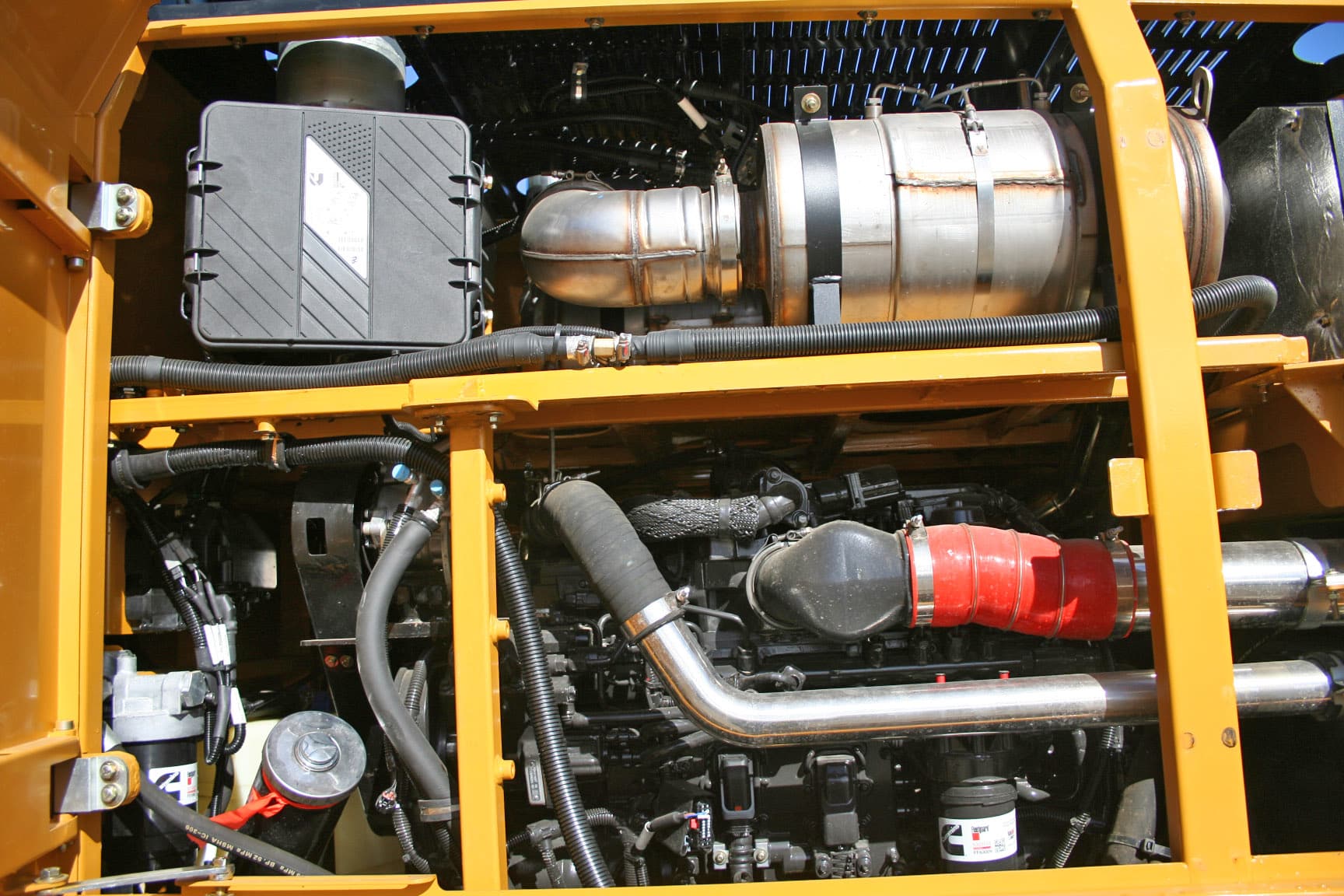

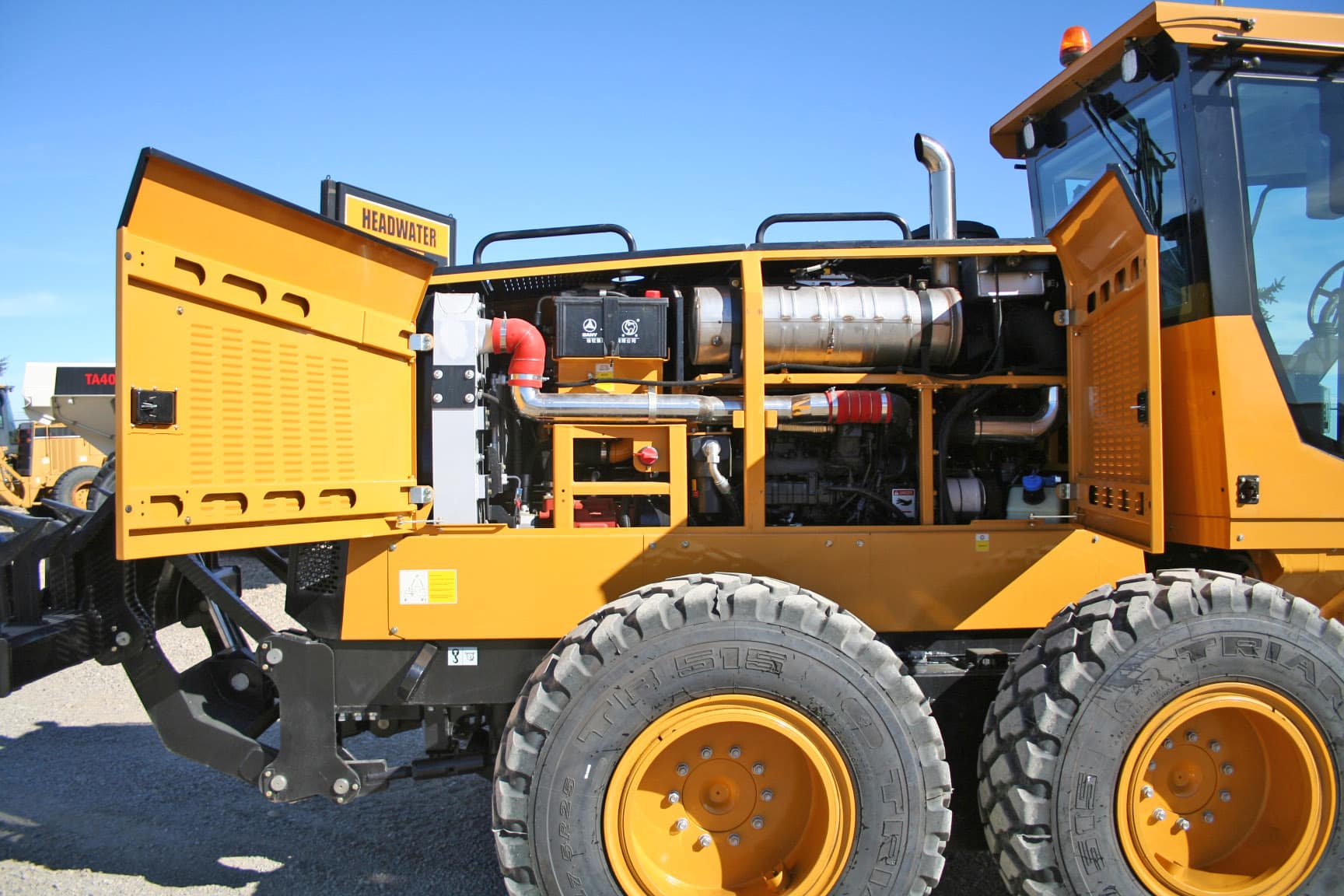

The SANY SMG200C-8 grader is focused on meeting the needs of municipal customers and rental companies alike with dependability and high performance. Grader operation is simple, where two joysticks give the operator all the control and finesse needed to clean out a ditch then charge down the road to smooth out the washboard. This reliable piece of road construction machinery offers excellent visibility on the moldboard and an intuitive user design, and is loaded with top-shelf components like the efficient and dependable Cummins engine, Kawasaki pumps, and Danfoss controls.

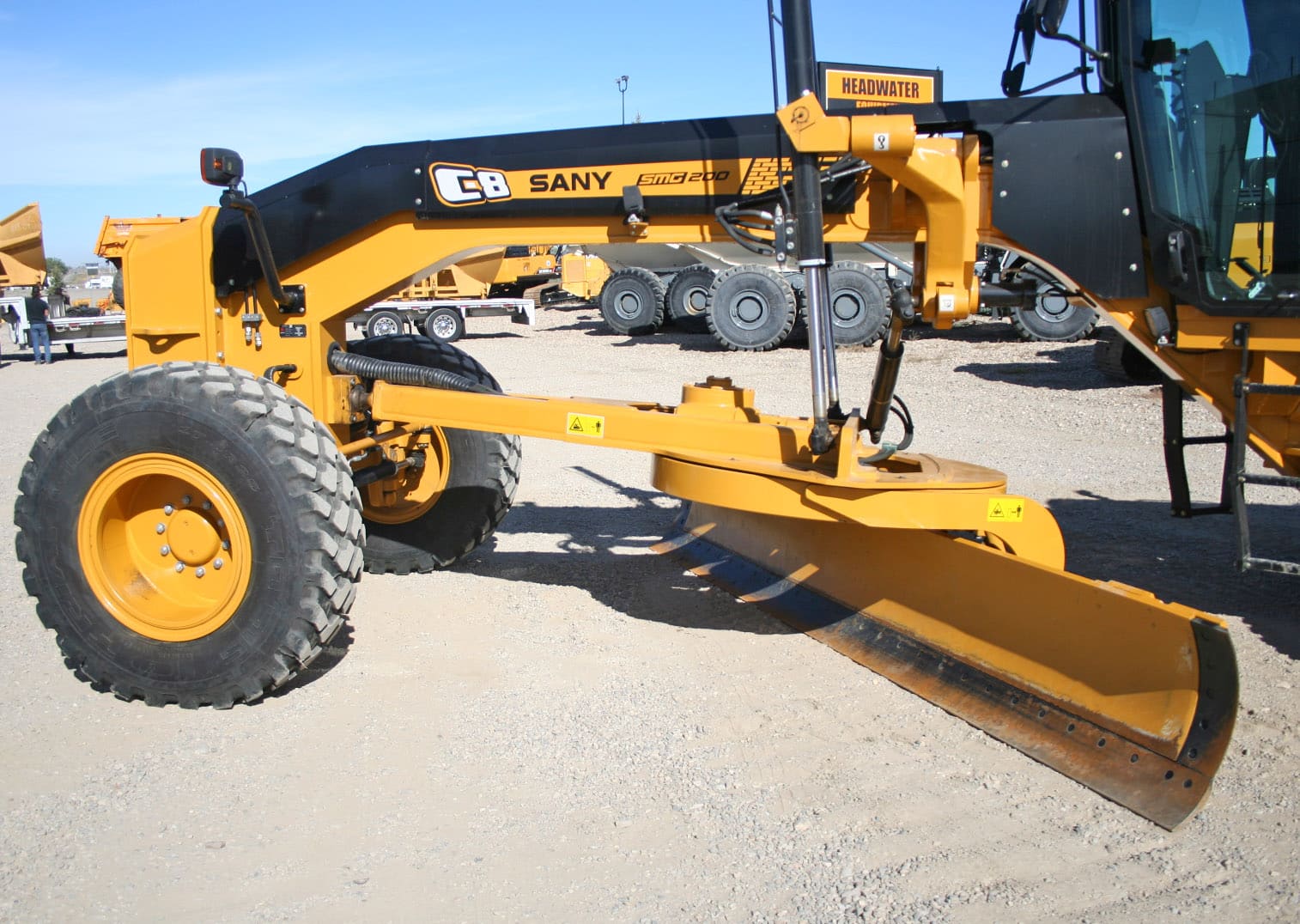

| Operating - Moldboard: | 4,270 mm | 14 ft |
|---|---|
| Transmission - Number of Speeds: | 8-Forward |
| Operating - Axle Oscillation: | 16° |
| ropstype: | Enclosed |
| Engine - Displacement: | 8.9 L | 543.1 in3 |
| Operating - Moldboard Height: | 620 mm | 24.41 in |
| Overall Dimensions - Width Over Std Tires: | 2,725 mm | 107.28 in |
| Powertrain - Drive Configuration: | 6 x 4 |
| Weight - Operating Weight - Maximum: | 20,760 kg | 45,768 lb |

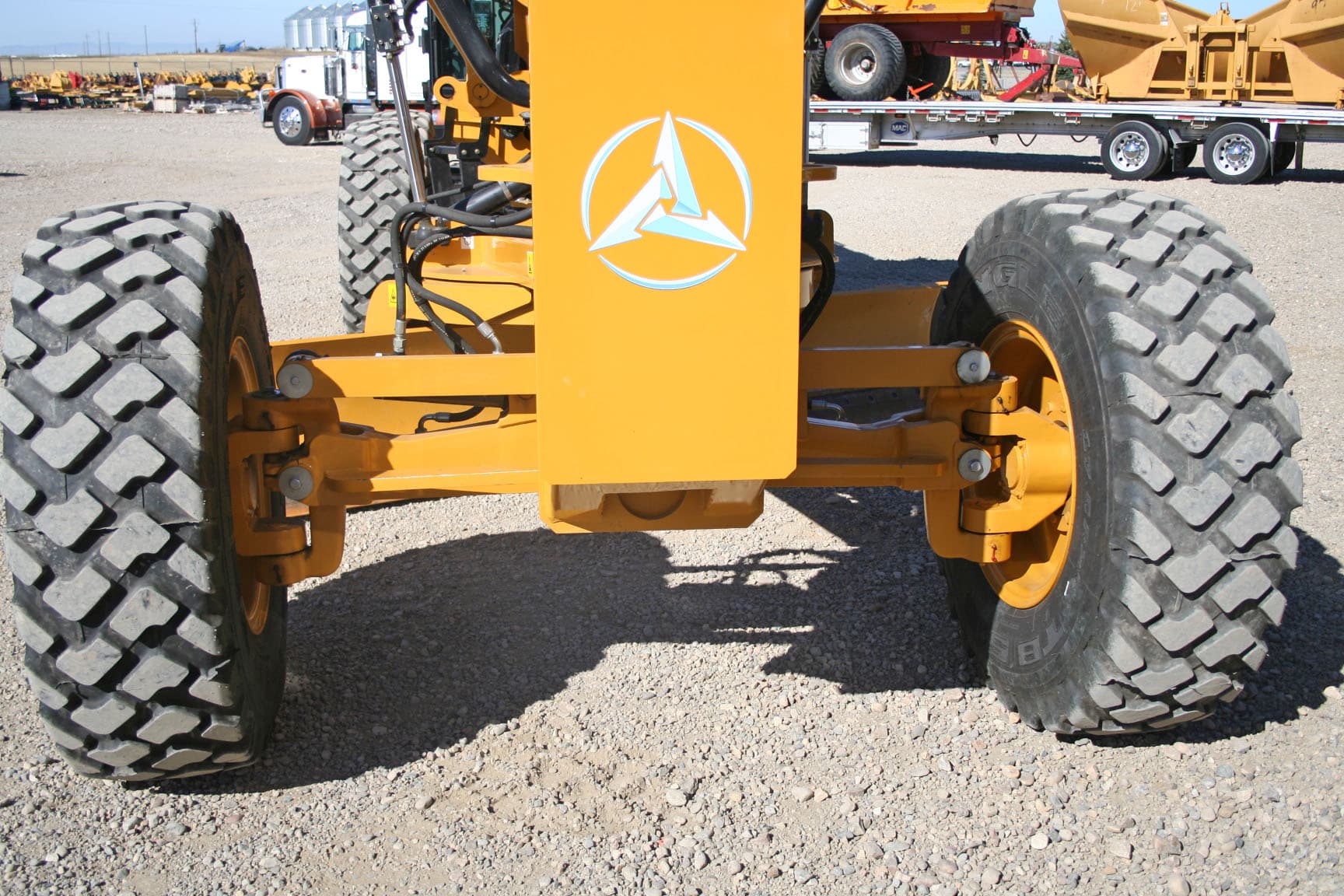

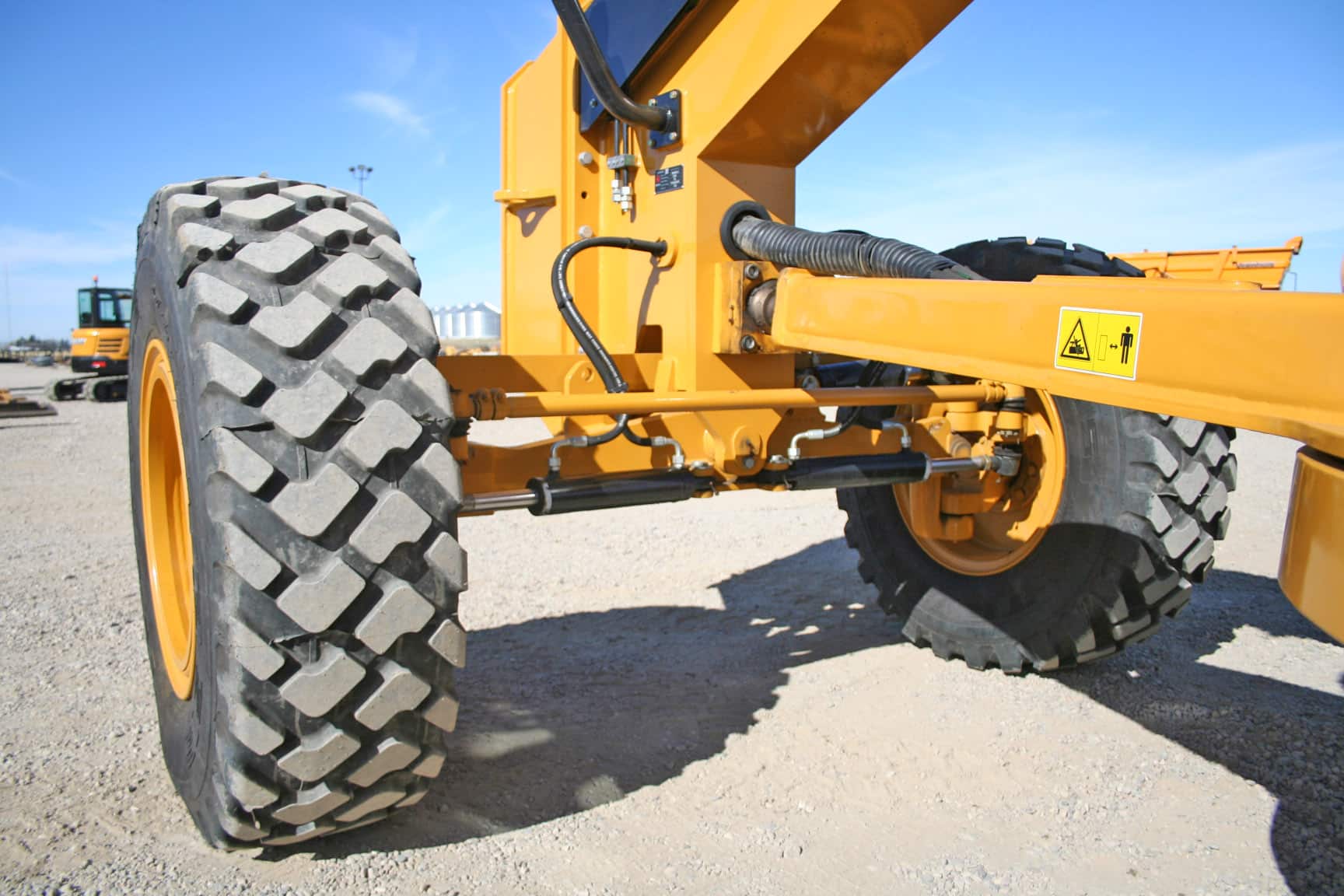

| Operating - Front Wheel Lean: | 17° |
| Operating - Fuel Tank: | 340 L | 89.82 gal |
| Powertrain - Tire Size - Standard: | 17.5-25 |
| Weight - Blade Down Pressure: | 9,038 kgf | 19,925 lbf |
| Engine - Turbo Charged with Intercooler: | Yes |
| Operating - Telematics Available: | Yes |
| Operating - Turning Radius - Minimum: | 7.5 m | 295.28 in |
| Overall Dimensions - Height Over ROPS: | 3,498 mm | 137.72 in |
| Overall Dimensions - Wheelbase (F/R): | 6,300 mm | 248.03 in |
| Operating - Moldboard - Lift Above Ground: | 480 mm | 18.9 in |
| Powertrain - Traction Aid: | Manual Differential Lock |
| Powertrain - Number of Axles: | 2 |
| Powertrain - Service Brake Type: | Wet Multiple-Disc |
| Transmission - Transmission Type: | Direct-Drive, Power Shift |
| Overall Dimensions - Overall Length: | 9,187 mm | 361.69 in |
| Engine - Engine Net Power: | 186 kW | 253 hp |

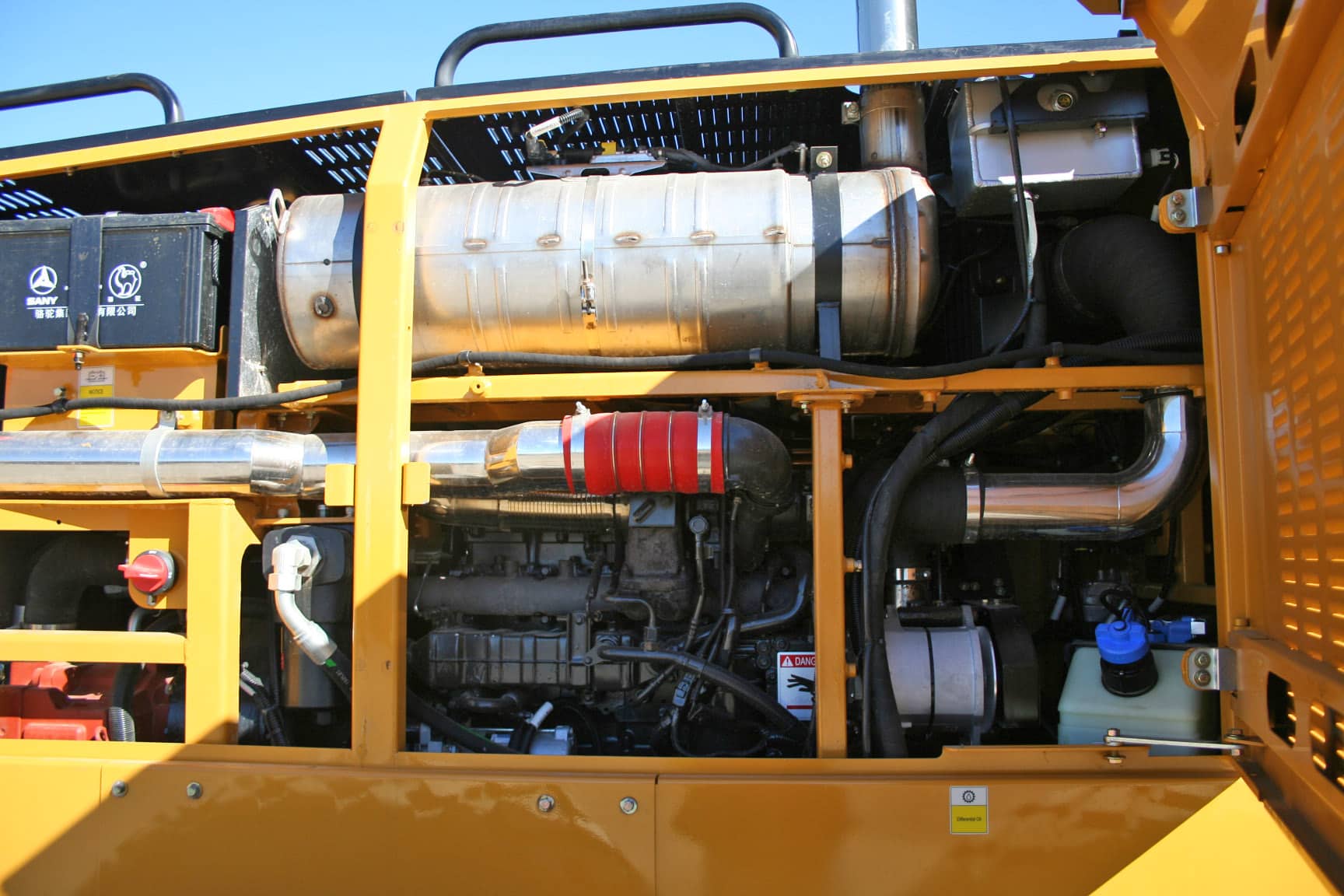

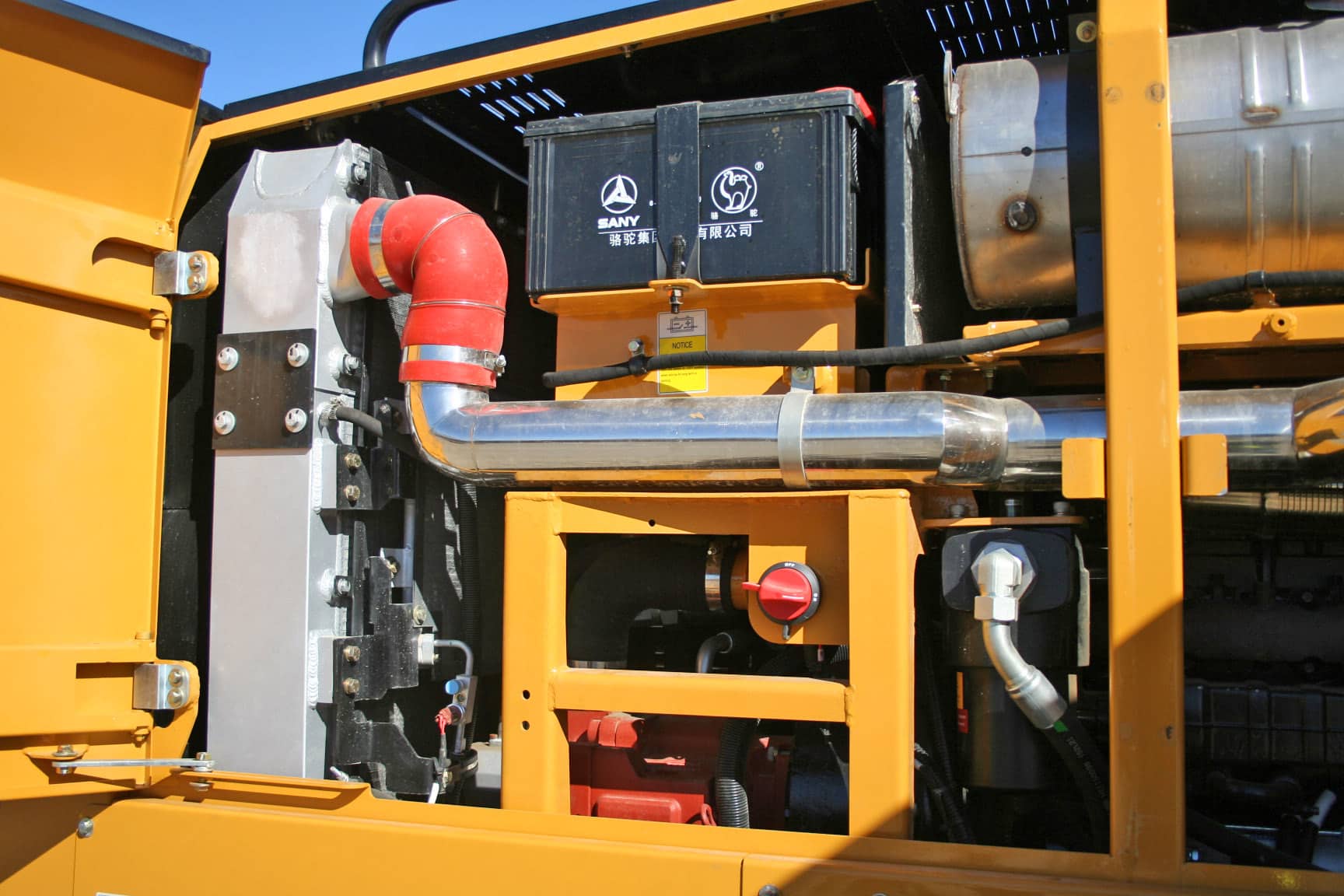

| Engine - Engine Model: | Cummins QSL9-C250 |
| Operating - Moldboard - Cutting Depth: | 715 mm | 28.15 in |
| Overall Dimensions - Width - Moldboard: | 4,270 mm | 14 ft |
| Operating - Frame Articulation: | 22° |
| Weight - Loading - Rear Axle / Tandem: | 15,335 kg | 33,808 lb |
| Weight - Operating Weight: | 20,460 kg | 45,107 lb |
| Operating - Transport Width: | 2,725 mm | 107.28 in |
| Engine - Torque Rated Speed: | 1,500 rpm |
| Operating - Frame Type: | Articulated |
Features

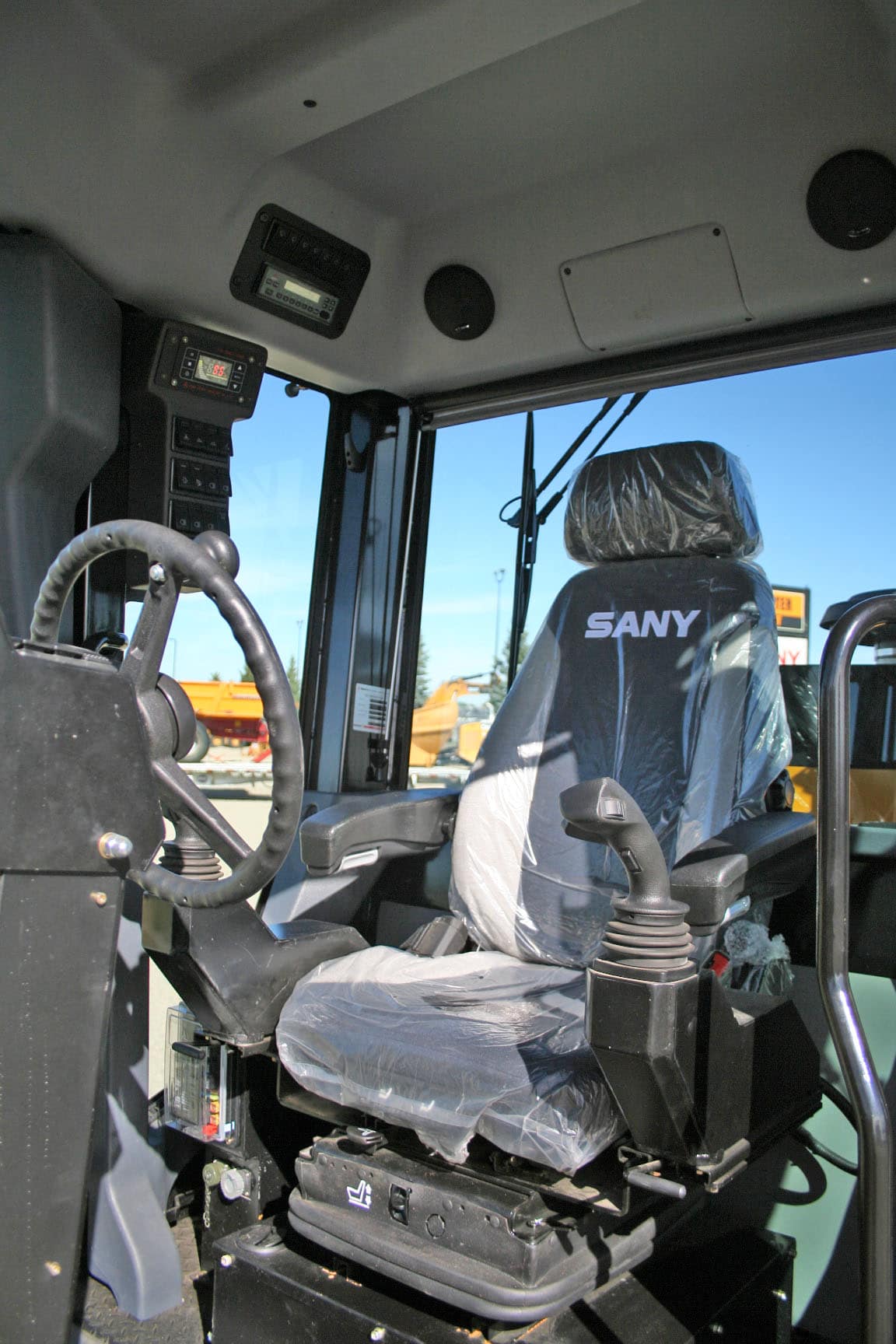

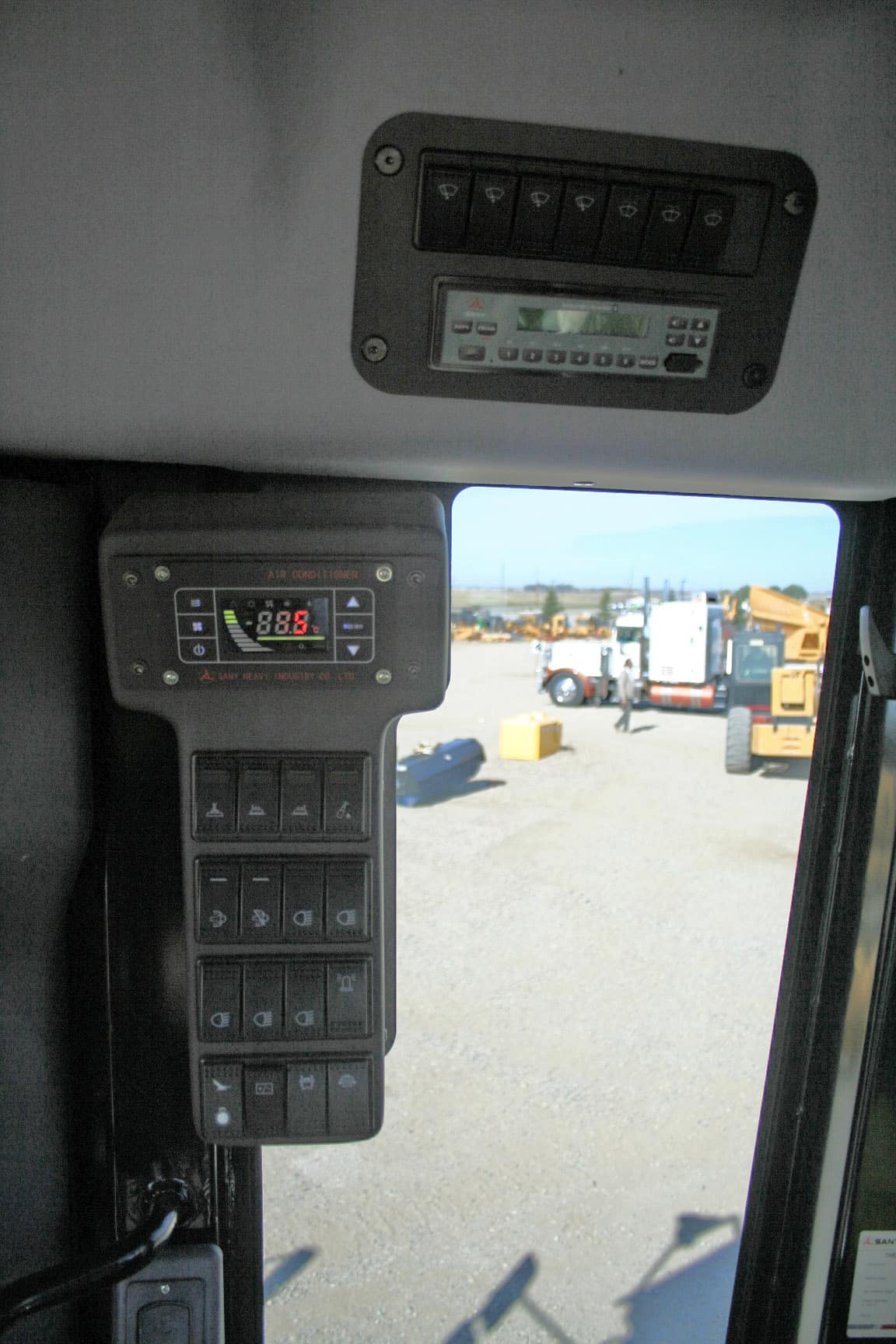

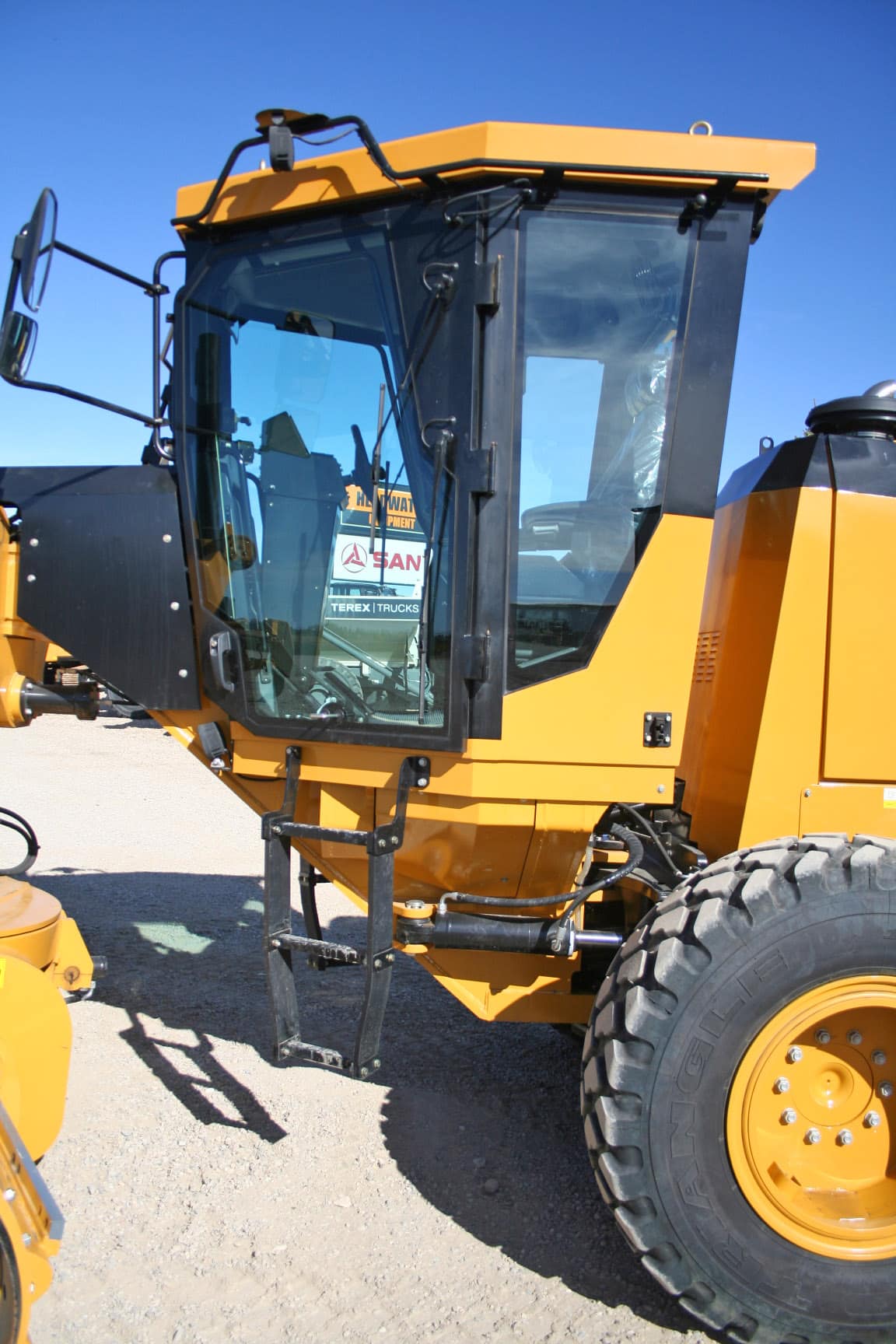

- Air-conditioned cab and heated air ride seat standard for operator comfort

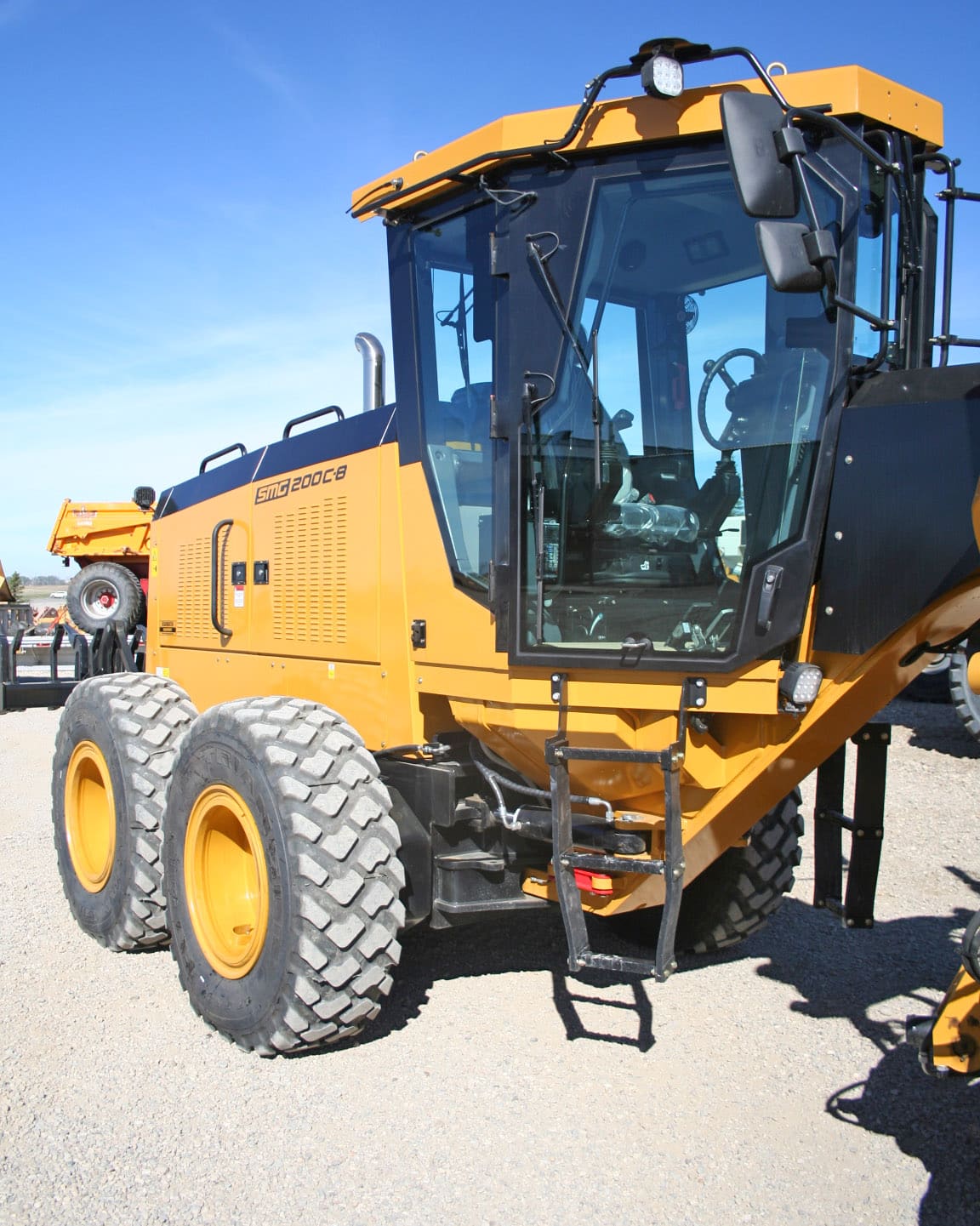

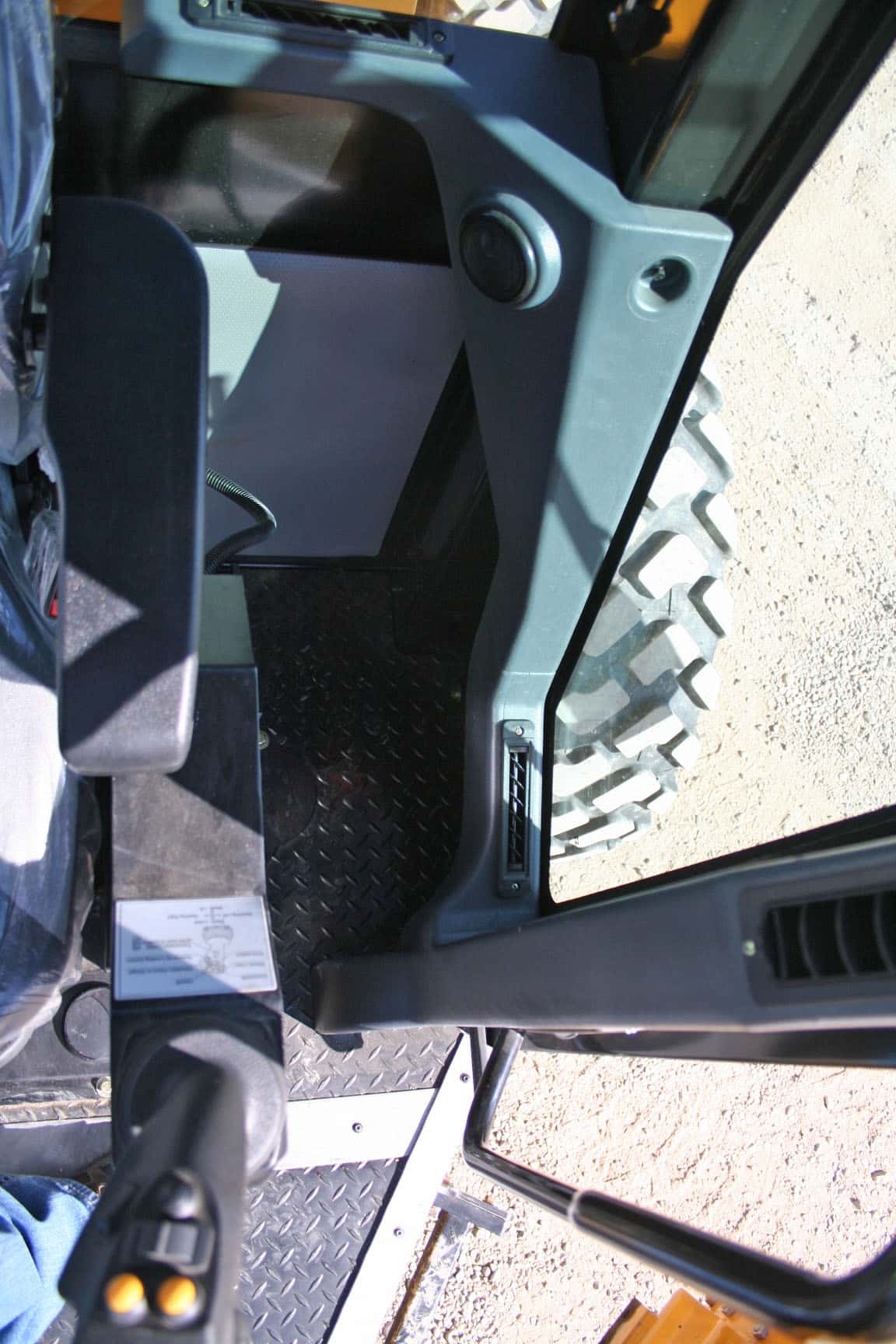

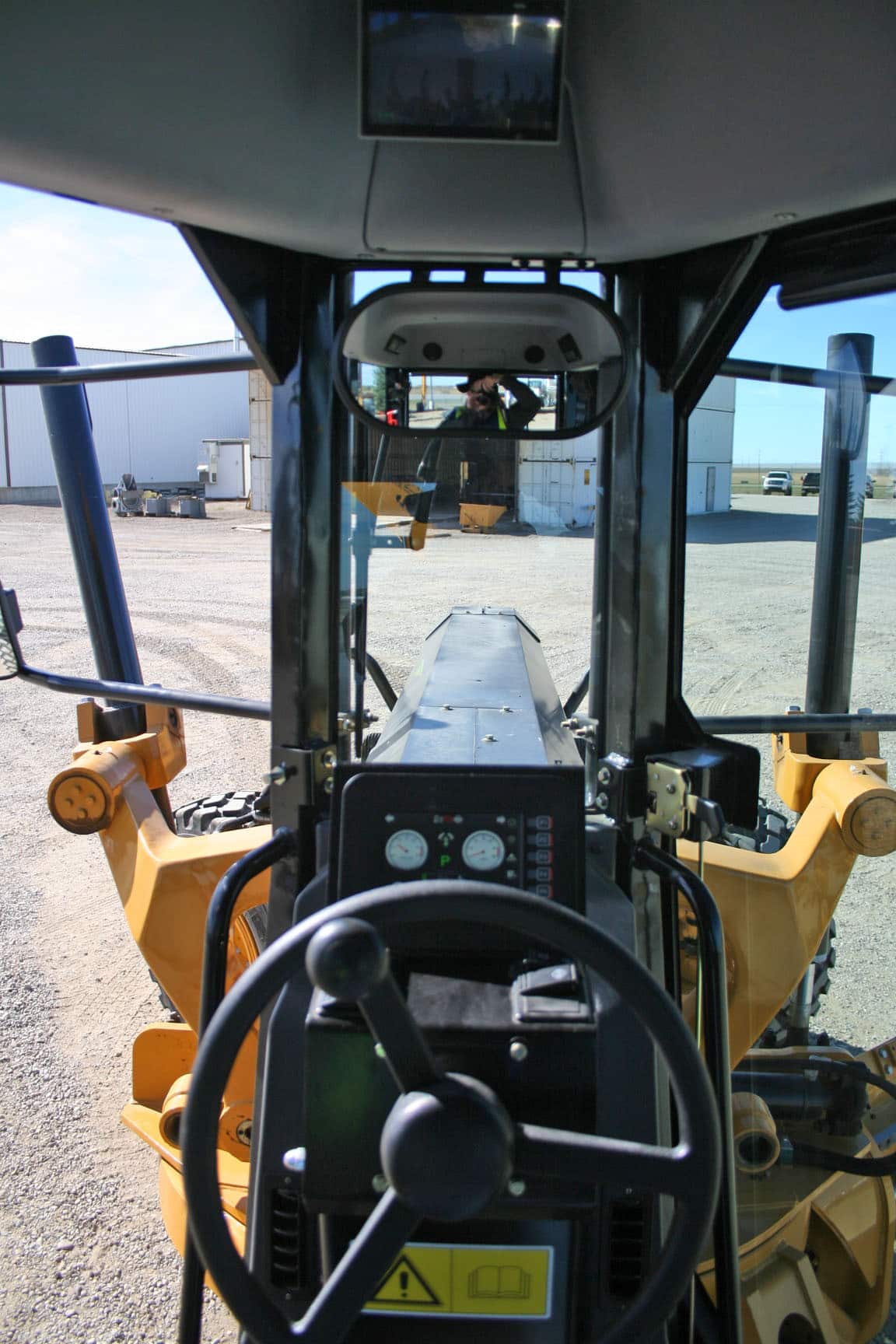

- Open cab design with rear-view camera maximizes line of sight and visibility
- 22 Degree Frame articulation with 7.5m turning radius

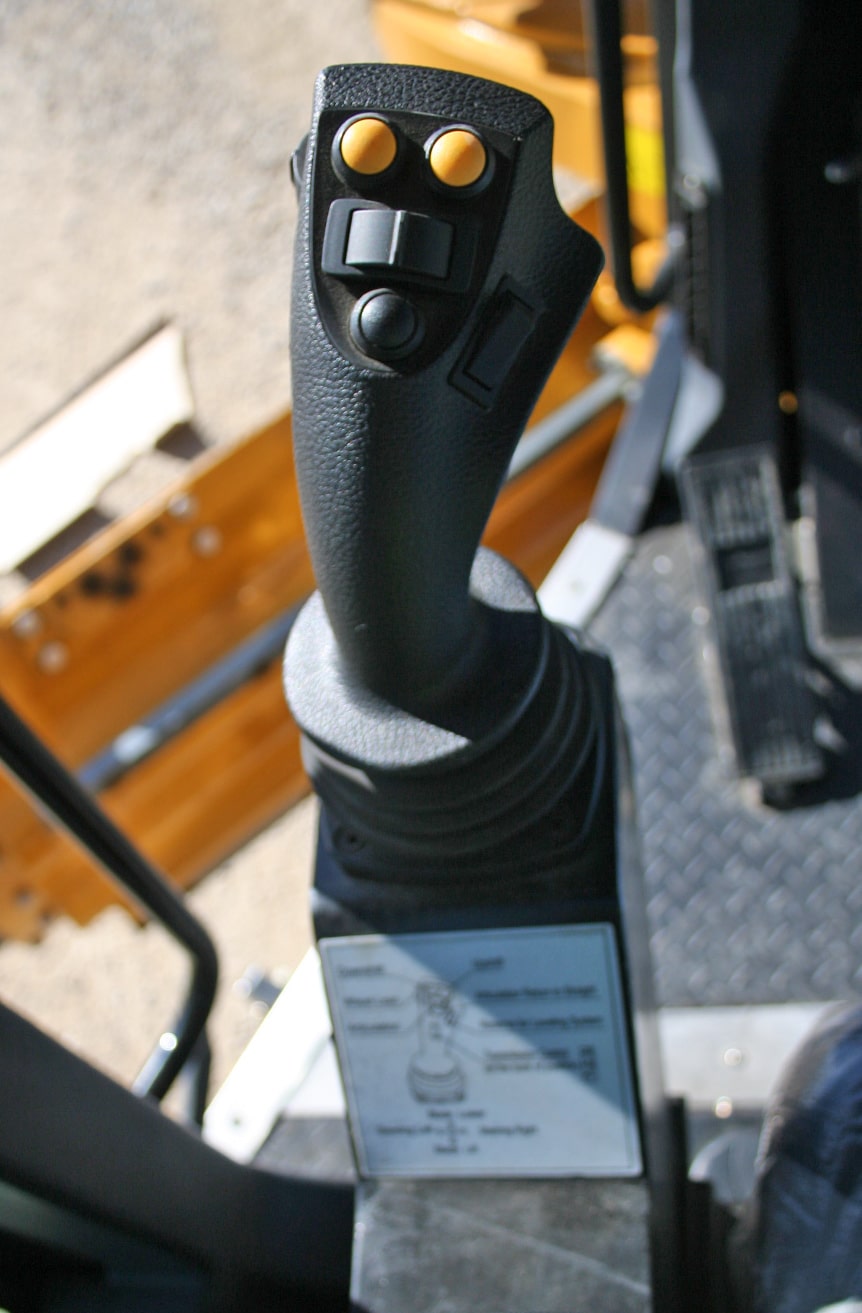

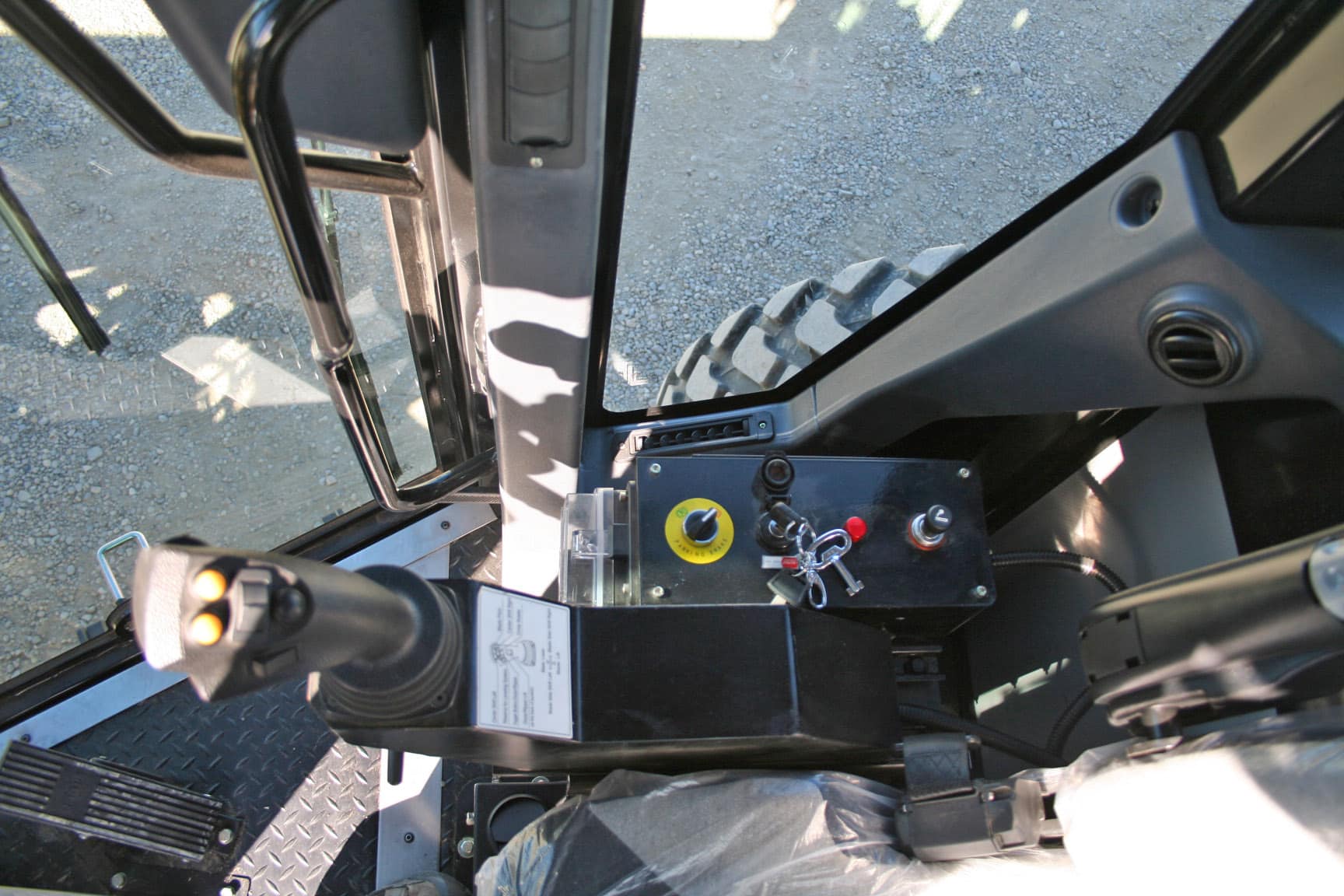

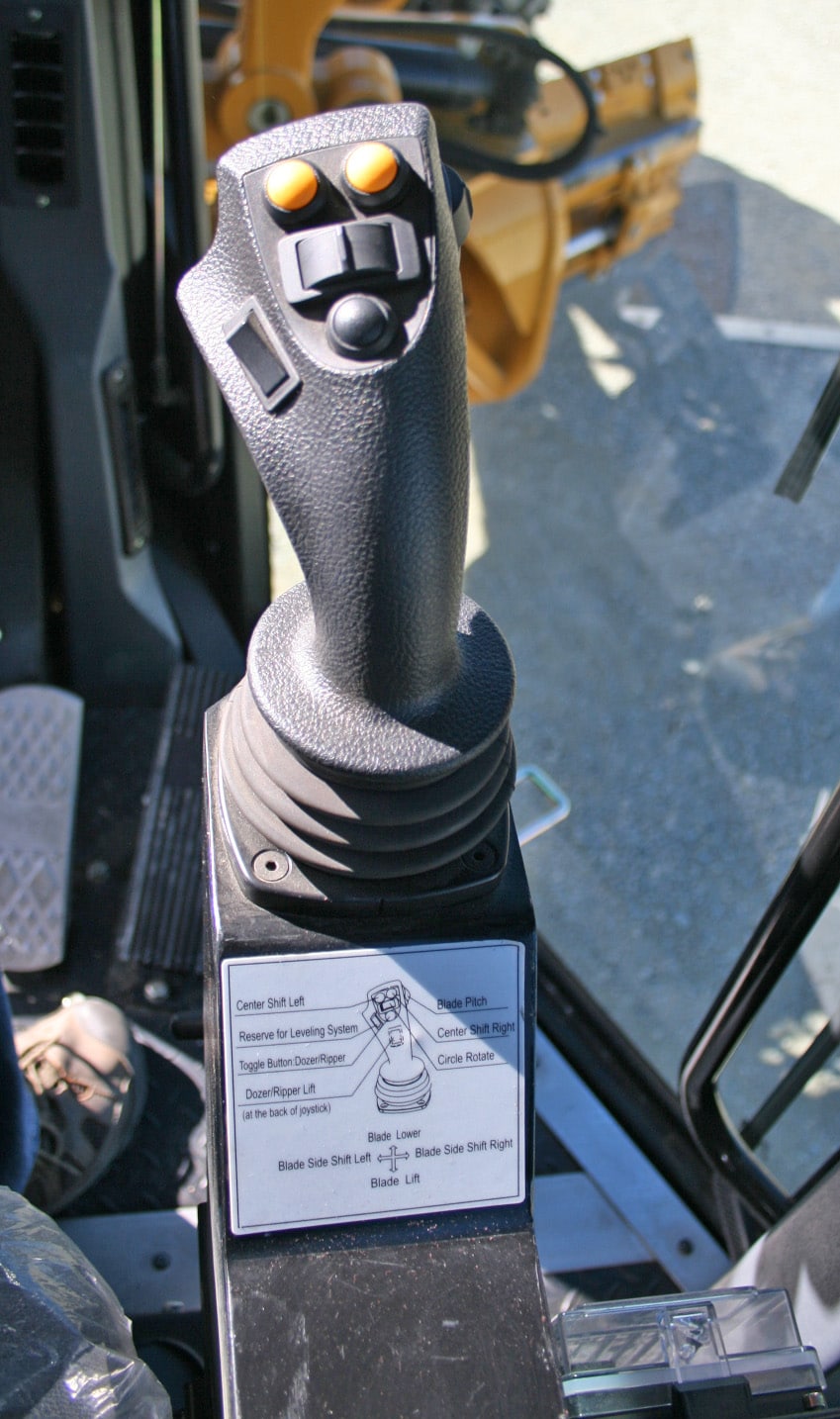

- Joystick controls for grading and steering wheel for roading offer simple-to-learn operation

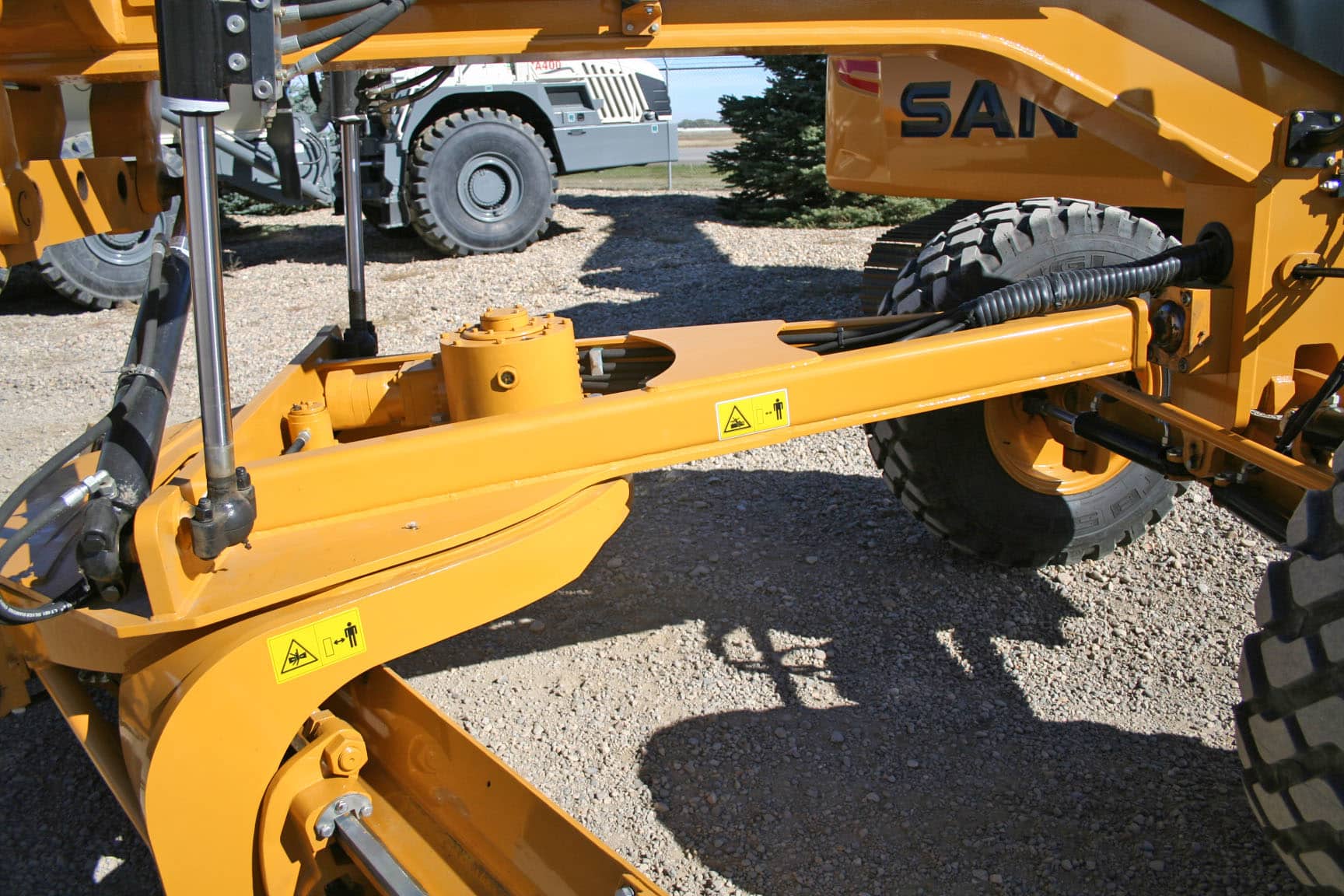

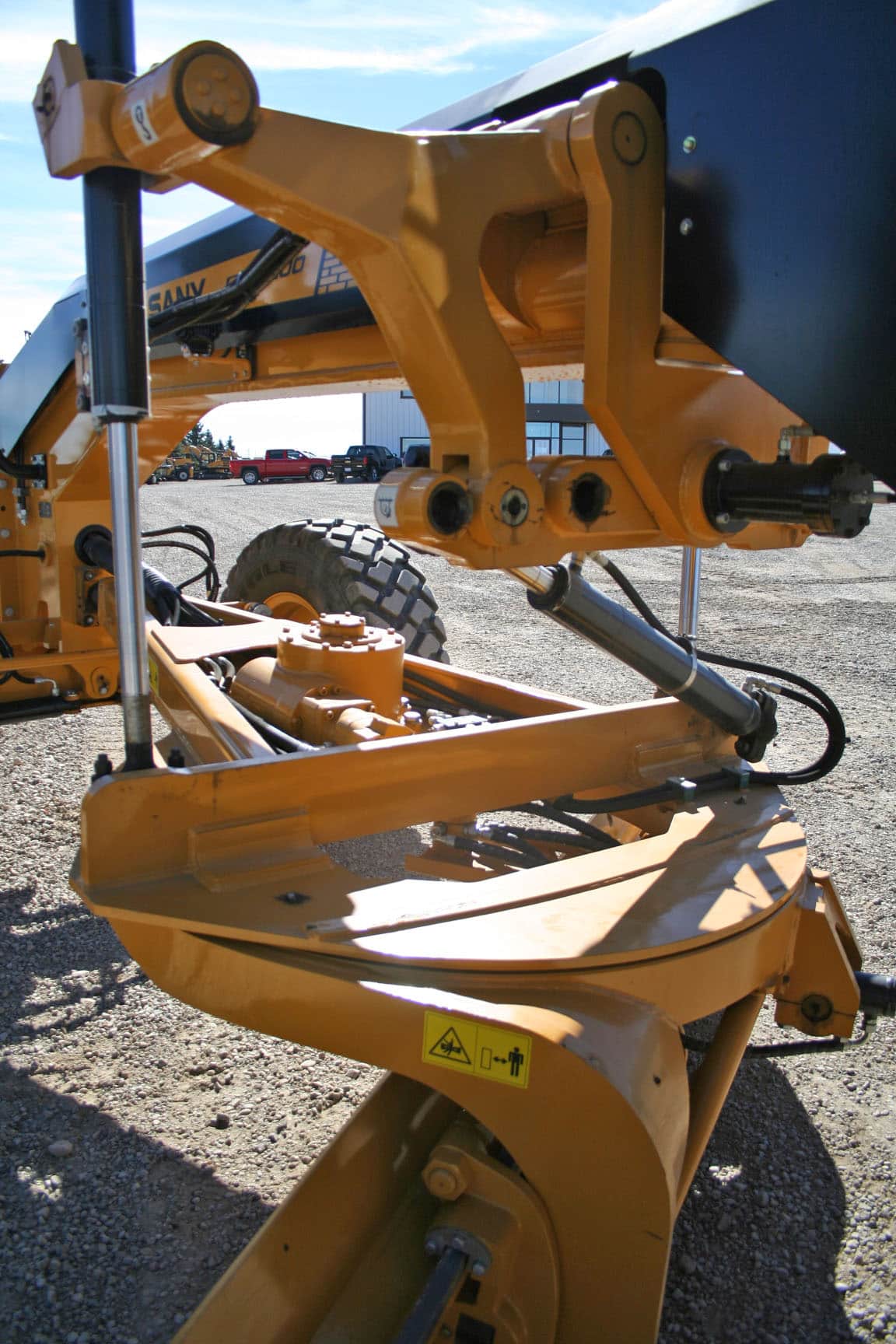

- Enclosed circle comes standard for a long machine life and low maintenance

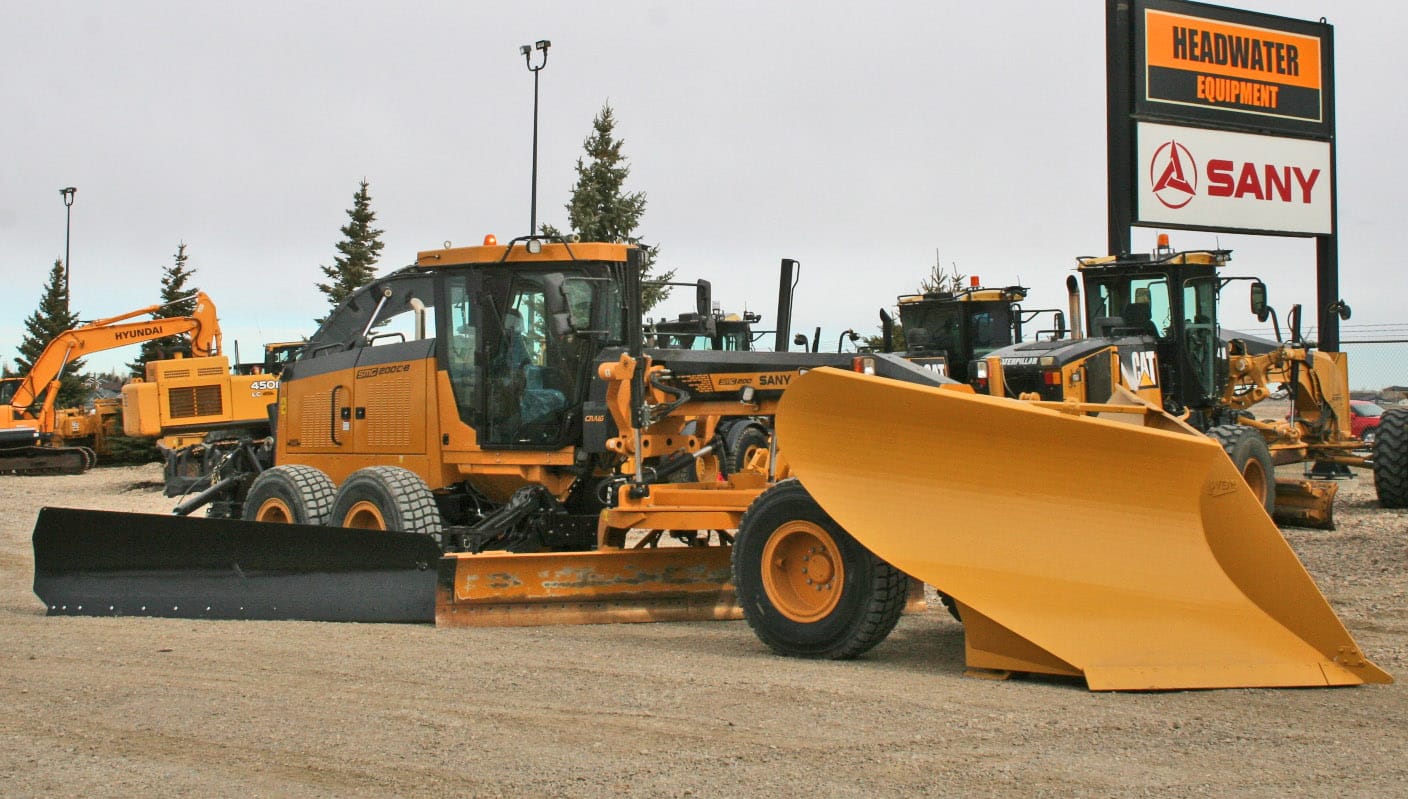

- Craig Snow Gear Available - purpose built Craig Postless wing, front lift group and Plow options available
- 14' Moldboard extensions available
