SANY SW305K
Find Out More

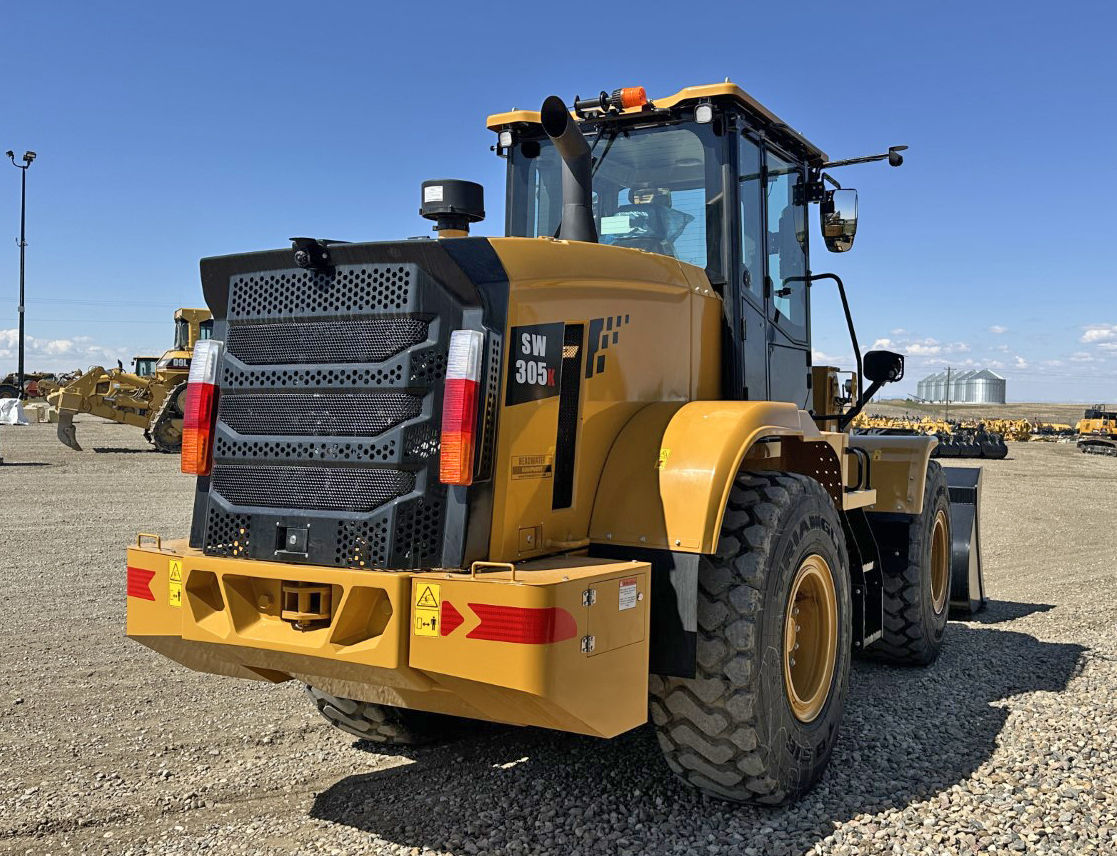

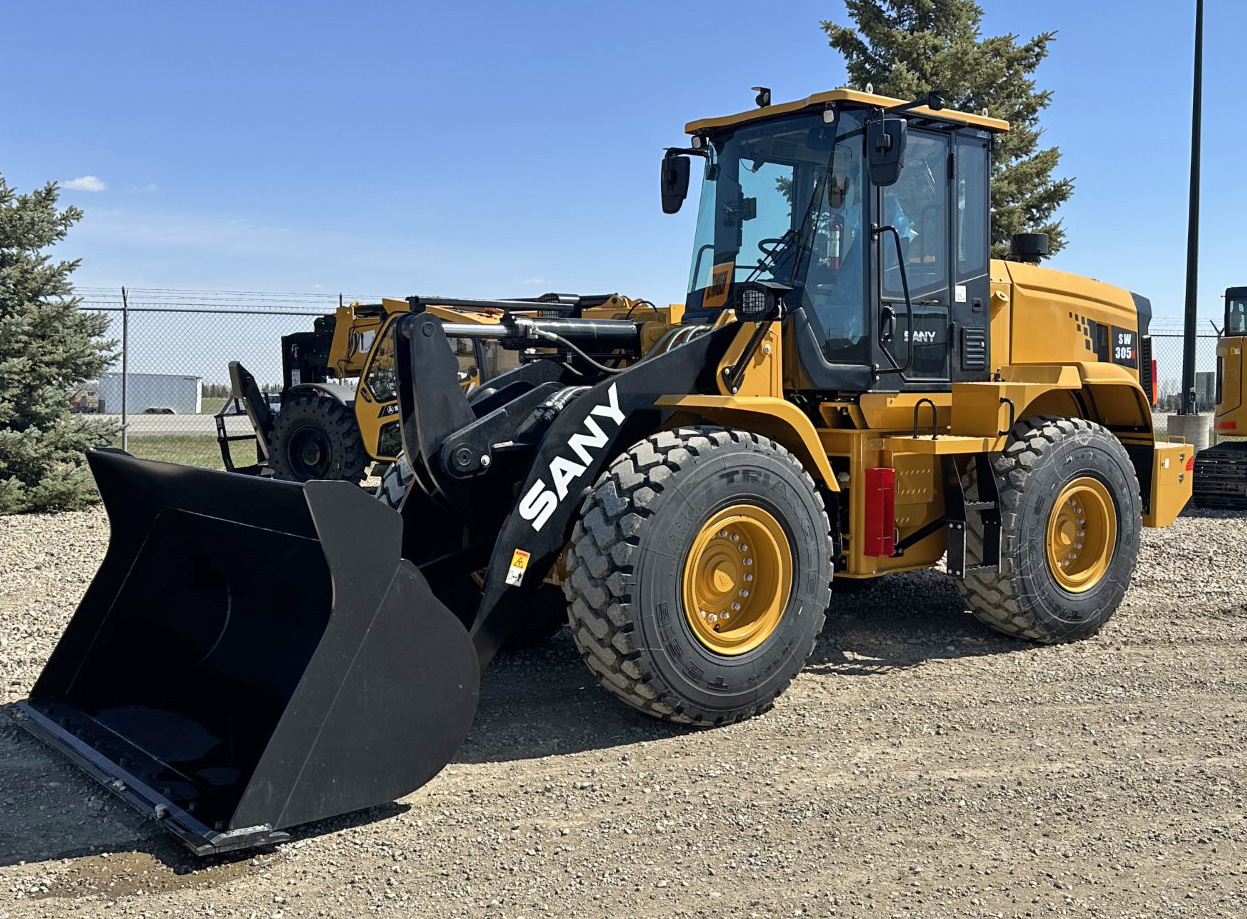

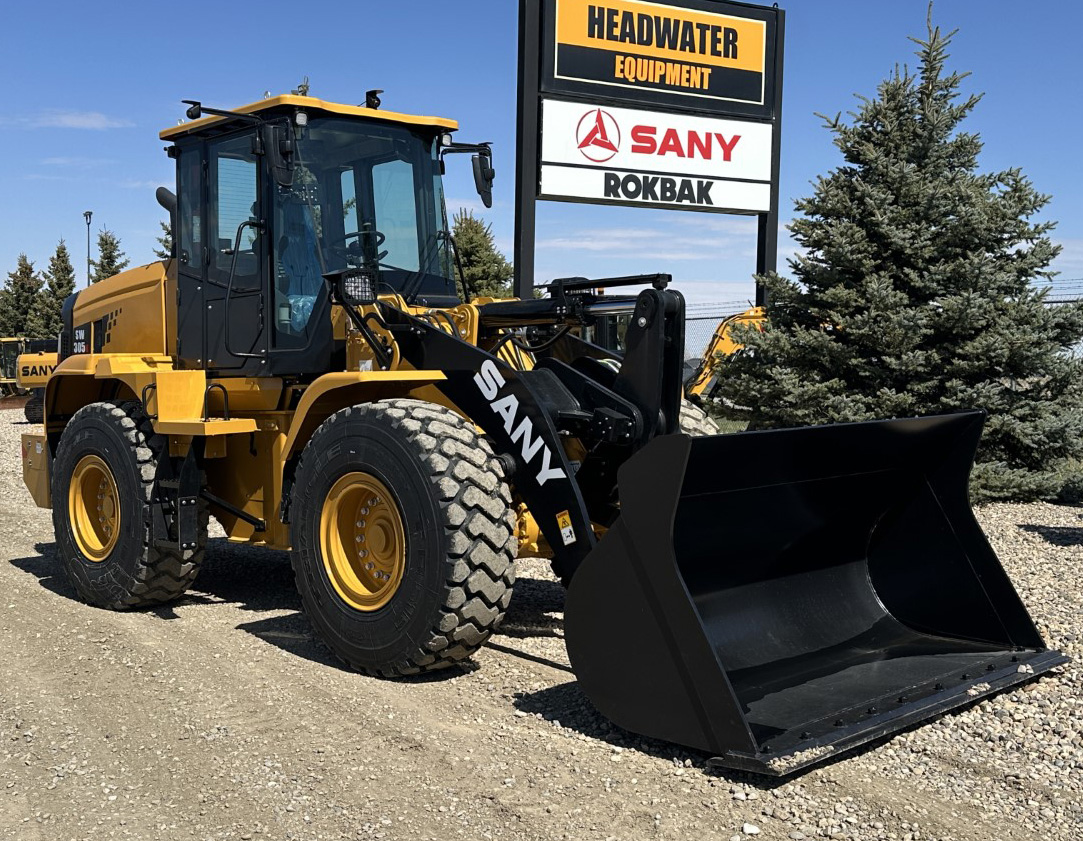

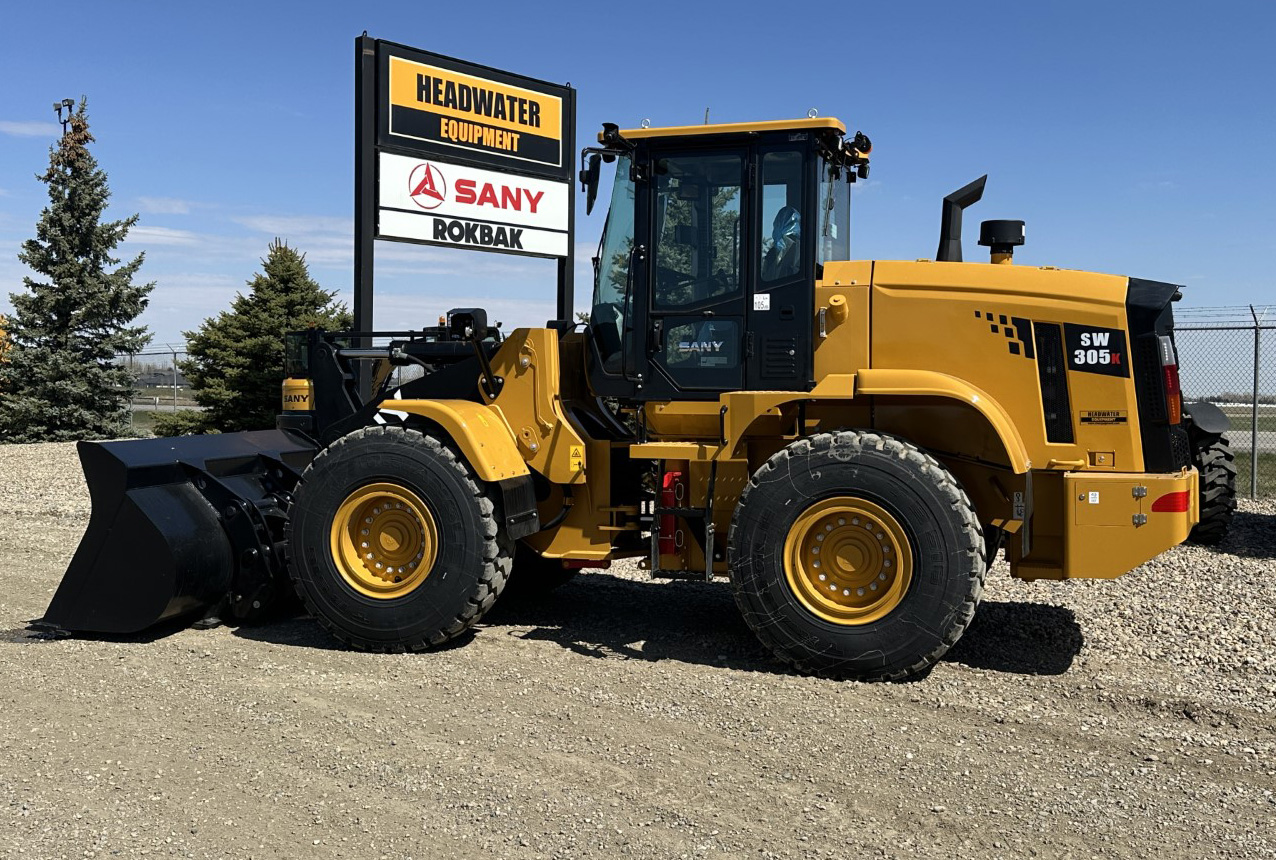

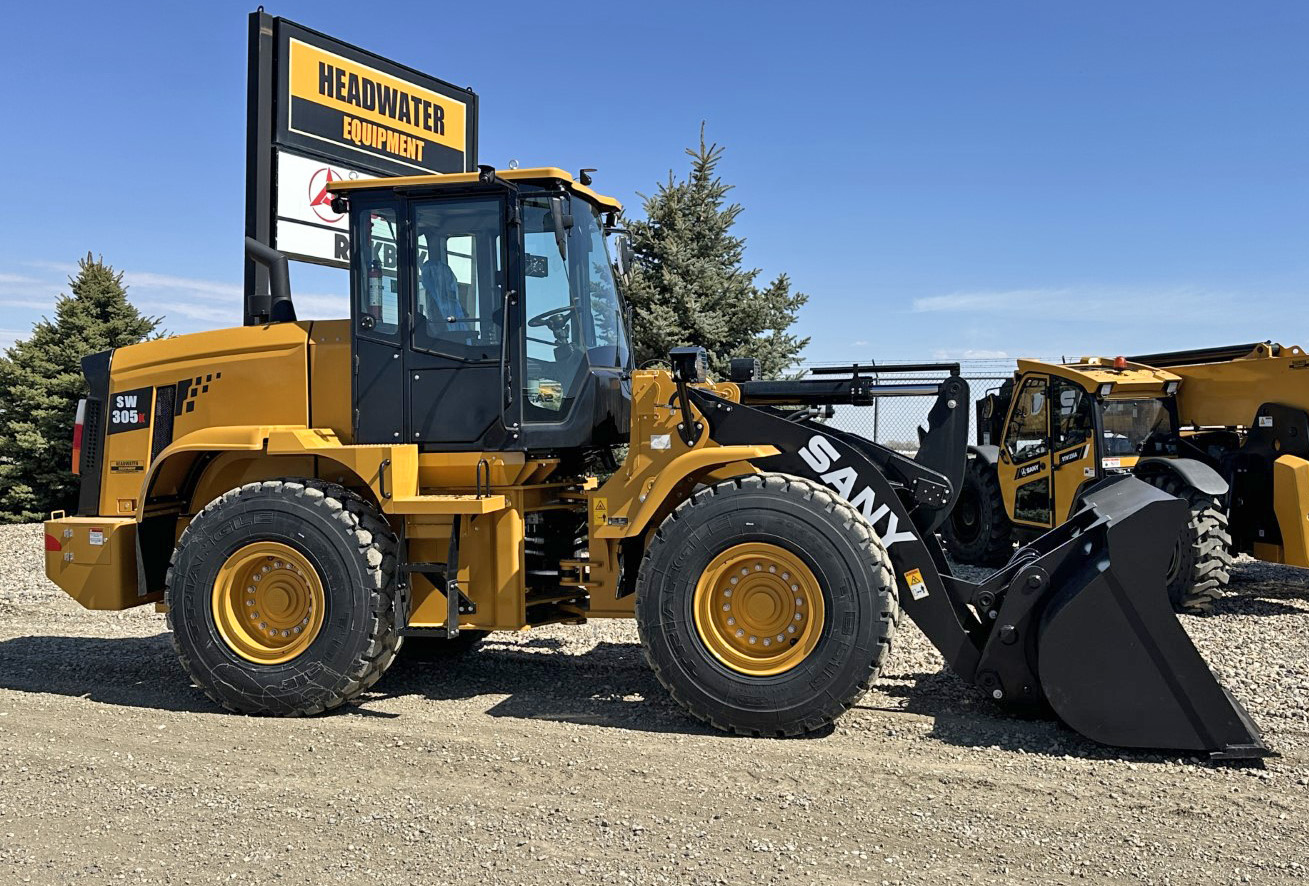

The Sany SW305K is built as a “best-of-both-worlds” loader, combining a heavy-duty structural frame with a premium global powertrain.
Here is the quick rundown of its core components and standard features:

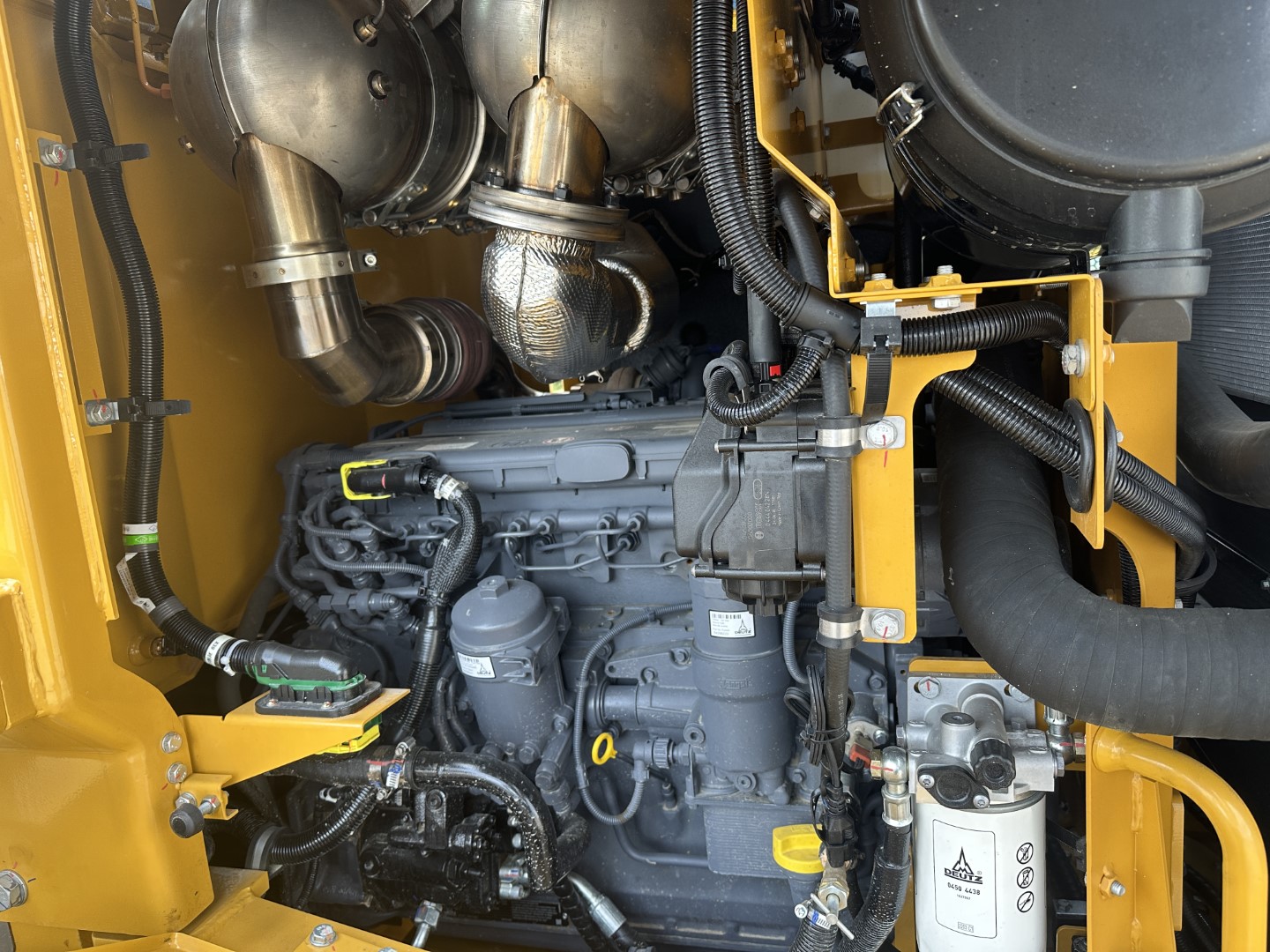

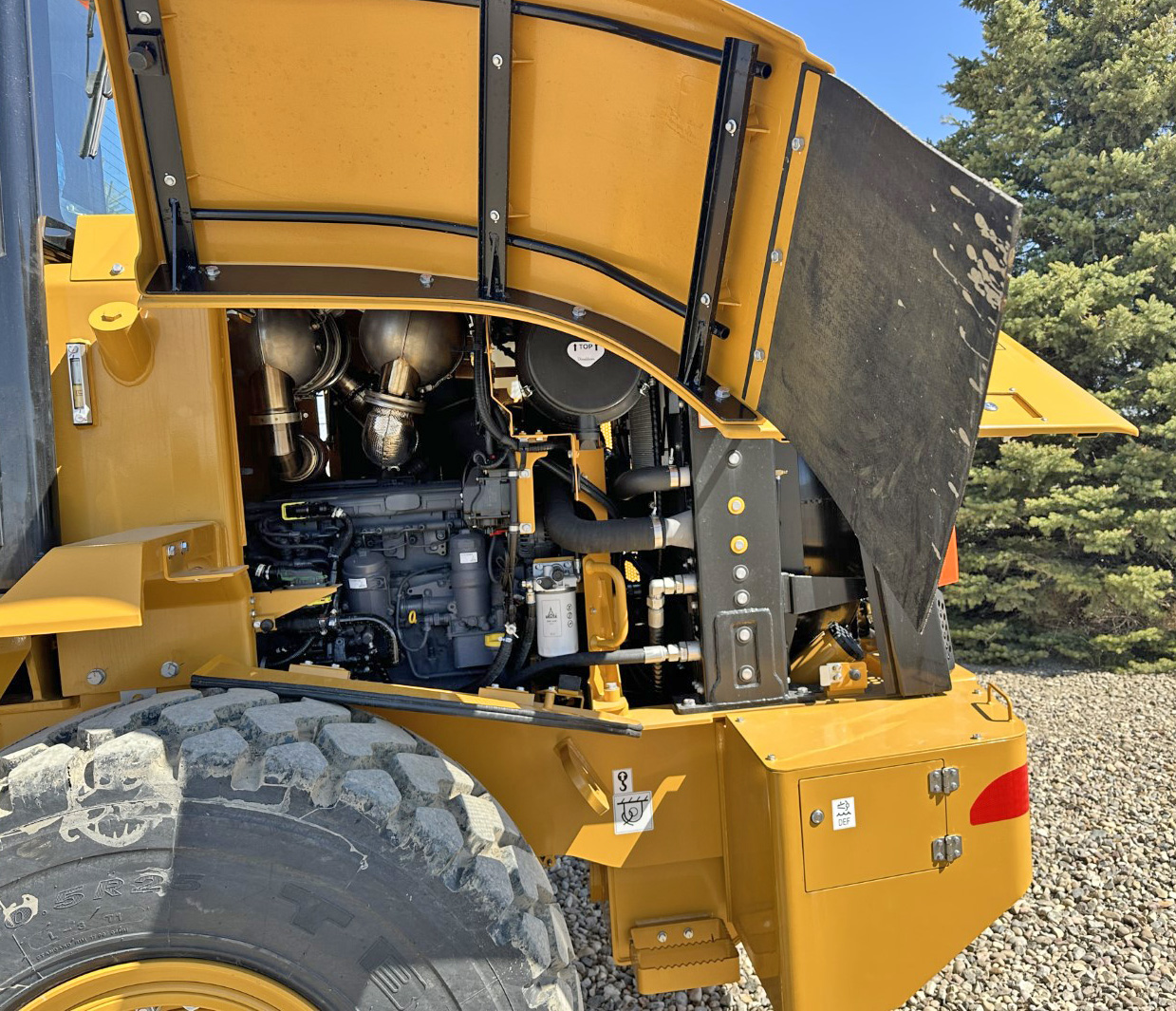

- Premium Drivetrain: Features a Deutz TCD 6.1 Tier 4F engine paired with a ZF 4WG190 Powershift transmission and heavy-duty ZF limited-slip axles.
- High-End Hydraulics: Uses Kawasaki load-sensing pumps for smooth, simultaneous lift and tilt functions.

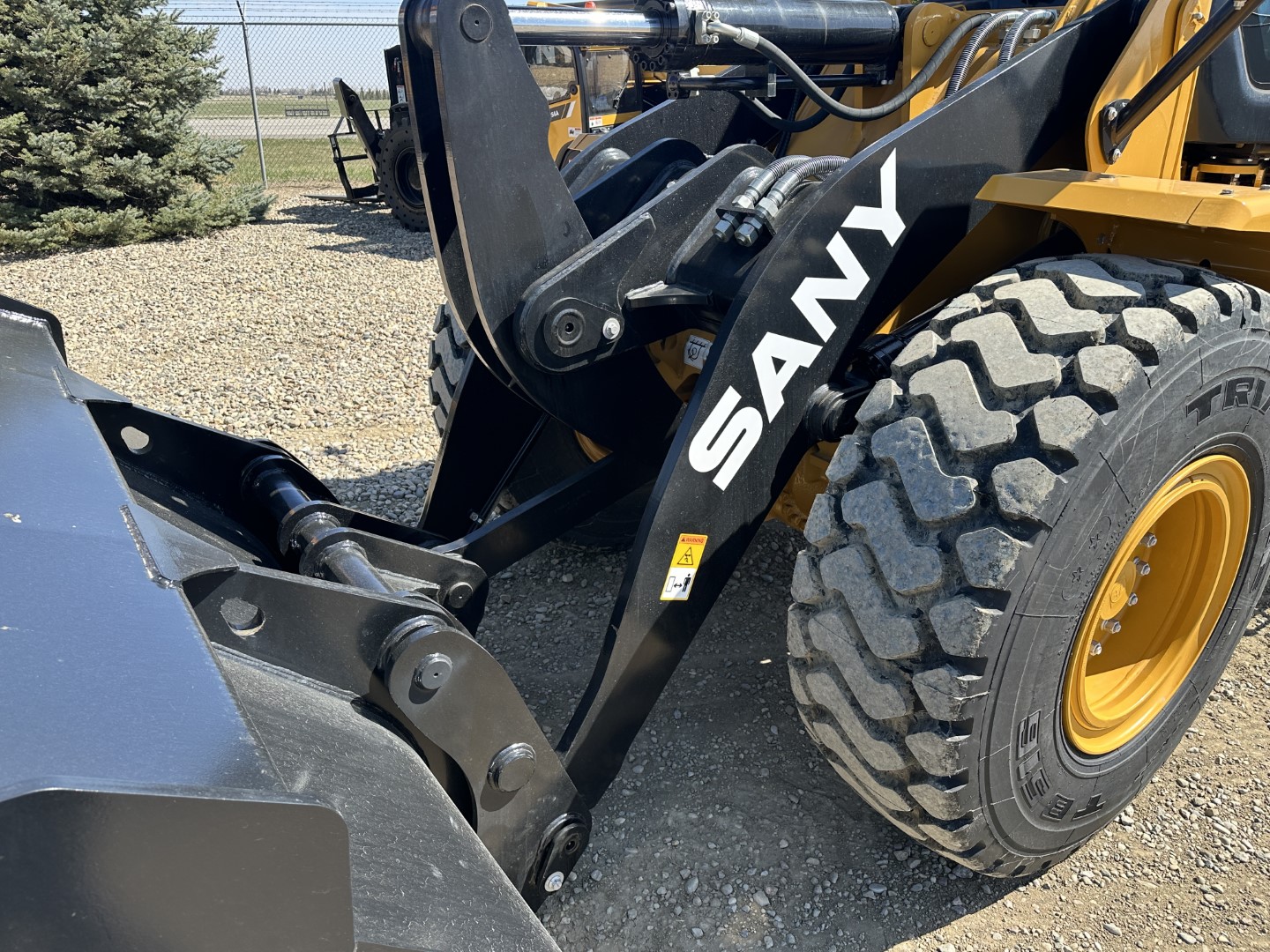

- Versatile Interface: Comes standard with a hydraulic quick coupler and third-function hydraulics, making it ready for a wide range of attachments (buckets, forks, grapples).

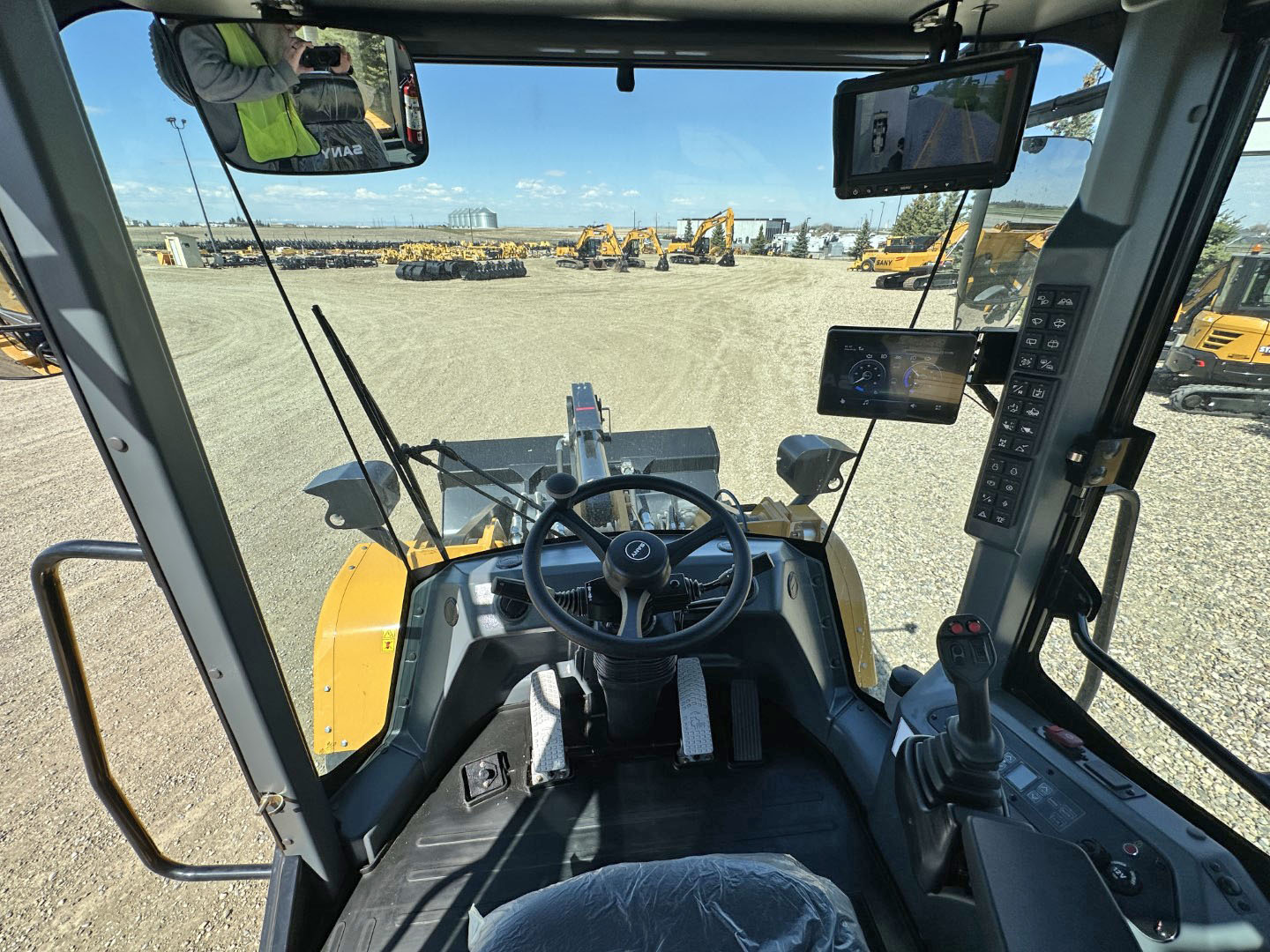

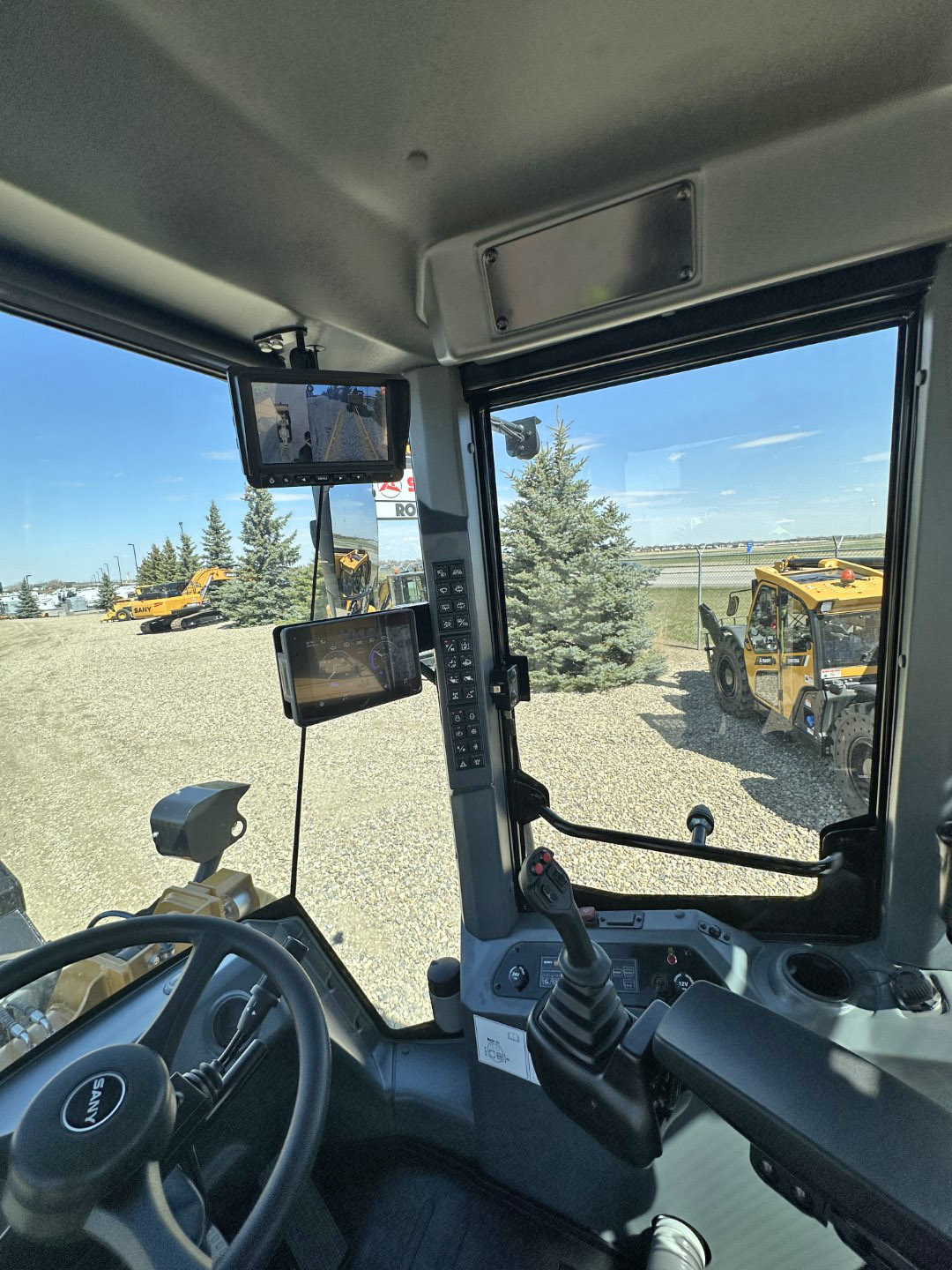

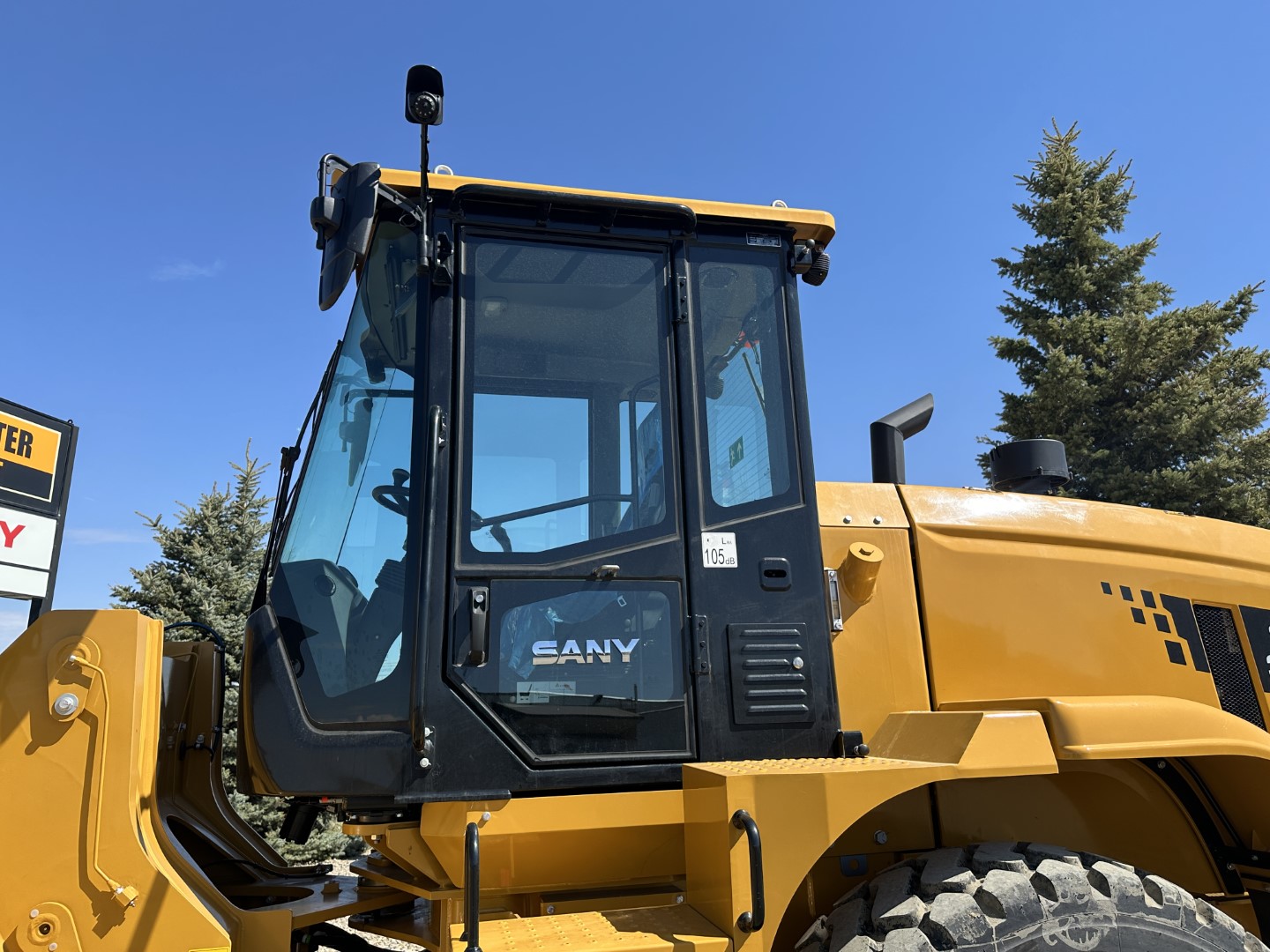

- Operator Comfort: The cab is fully equipped with a 360° camera system, air-suspension seat, and a large touchscreen display for real-time machine diagnostics.

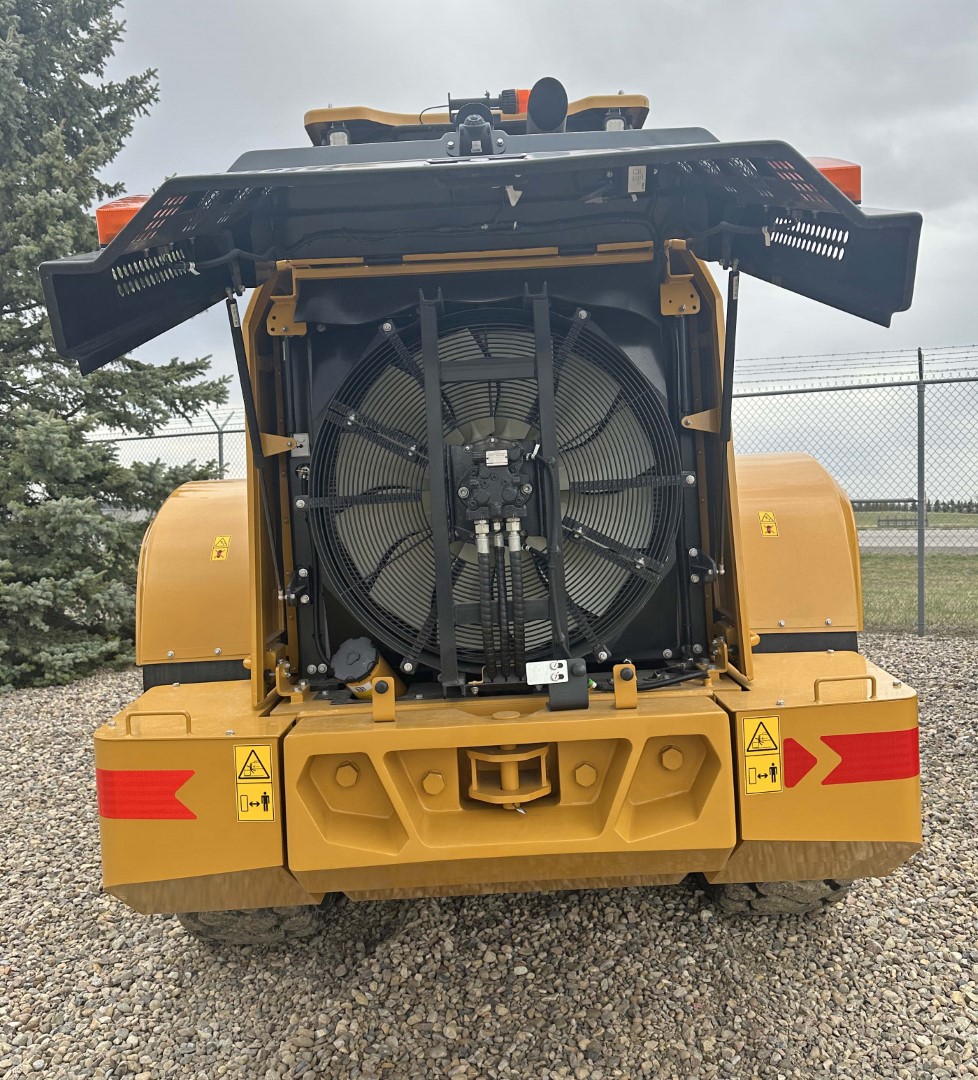

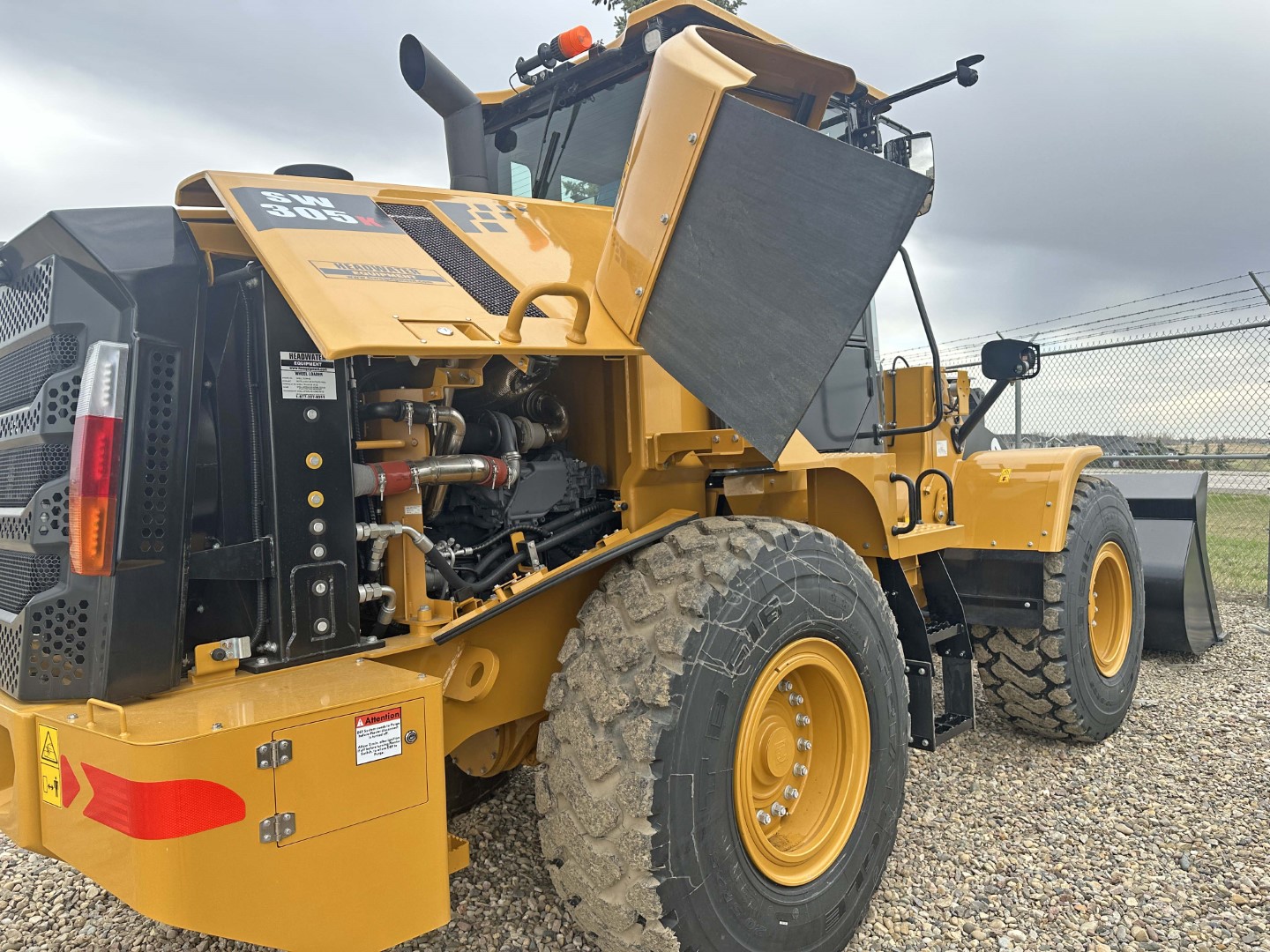

- Ease of Service: Includes a side-tilting cab for easy access to the transmission and a reversible hydraulic fan for automated radiator cleaning in dusty environments.
Technical Specifications
| Engine Model | Deutz TCD6.1 |
|---|---|
| Max Gross Power | 184 HP |
| Net Engine Power | 167 HP |
| Engine Displacement | 6.1 L |
| Max Gross Torque | 875 ft lbs |
| Engine Crankcase | 4.1 gal |

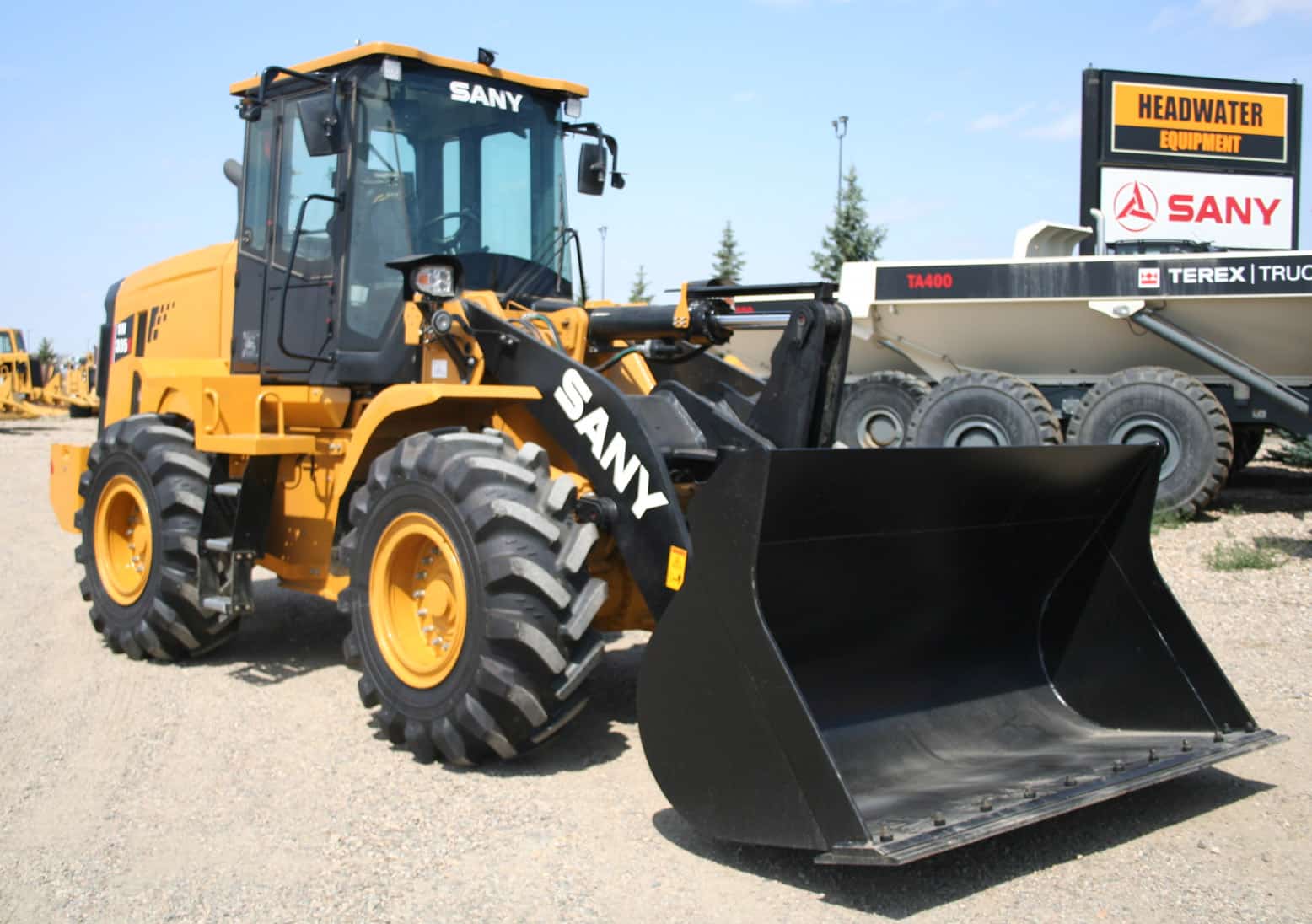

| Tire Size | Standard Rubber 20.5R25 - Hippo Tires Available! |
| Transmission Shift Modes | Automatic, Manual, Kick Down |
| Transmission Reverse Gear 1-4 | 4 - 16.2 mph |
| Transmission Forward Gear 1-4 | 4 - 24 mph |
| Transmission | 10.6 gal |
| Hydraulic System Max Pressure | 3,916 PSI |
| Hydraulic System Max Flow | 58 GPM |
| Total Cycle Time | 9.5 sec |
| Hydraulic Cycle Times Raise | 5.2 sec |
| Hydraulic Cycle Times to Dump | 1.3 sec |
| Hydraulic Cycle Times Float Down | 3.0 sec |
| Hydraulic Tank | 34 gal |
| Parking Brake | Disk Brake |
| Service Brakes | Wet Disk |
| Front Axle | Traction Aid | Fixed | Manual Differential Lock |
| Rear Axle | Traction Aid | Oscillating | Open Differential |
| Front Axle | 9.2 gal |
| Rear Axle | 9.2 gal |
| Fuel Tank | 60 gal |
| DEF Tank | 2.6 gal |
| Cooling System | 8.7 gal |
Working Range
| Bucket Capacity | 3.0 yd3 |
|---|---|
| Breakout Force | 27,143 lbs |
| Reach (full lift 45º dump) | 3' 3" |
| Clearance (full lift 45º dump) | 8' 10" |
| Tipping Load Straight | 19,621 lbs |
| Dump Clearance at Max. Lift | 2689 mm | 8' 10" |
| Max. Dump Height | 5214 mm | 17' 1" |
| Clearance Circle to Counterweight | 5365 mm | 17' 7" |
| Dig Depth, Level Bucket | 122 mm | 4.8" |
| Hinge Pin Height at Max. Lift | 3845 mm | 12' 7" |
| Tipping Load @ Full Term | 17,007 lbs |
| Reach at Max. Lift and 45º Discharge | 993 mm | 39" |
| Dump Angle at Max. Lift and Dump | 45º |
| Roll Back at Max. Lift | 61º |
| Roll Back at Ground | 42º |
| Roll Back at Carry Height | 49º |
| Articulation Angle | +/- 40º |
| Clearance Circle to Outside of Tires | 5382 mm | 17' 8" |
| Max. Circle | 5969 mm | 19' 7" |
Overall Dimensions
| Operating Weight | 32,222 lbs |
|---|---|
| Width of the Bucket | 2545 mm | 8' 4" |
| Shipping Length with Bucket | 7511 mm | 24' 8" |
| Shipping Length without Attachments | 6226 mm | 20' 5" |
| Height to Top of Cab | 3405 mm | 11' 2 |
| Wheelbase | 3000 mm | 9' 10" |
| Chassis/Machine Width | 2045mm | 6' 8" |
| Height to Axle Centerline | 695 mm | 2'3" |
| Center Line of Rear Axle to Edge of Counterweight | 1911 mm | 6' 3" |
| Center Line of Front Axle to Center Pivot | 1480 mm | 4' 10" |
| Tail Angle to the Rear Wheel | 28º |
Features
- Comes with Sany's Industry Leading 5 Year/5,000 Hour Warranty
- Boom Suspension System with Bucket self-leveling and return to dig

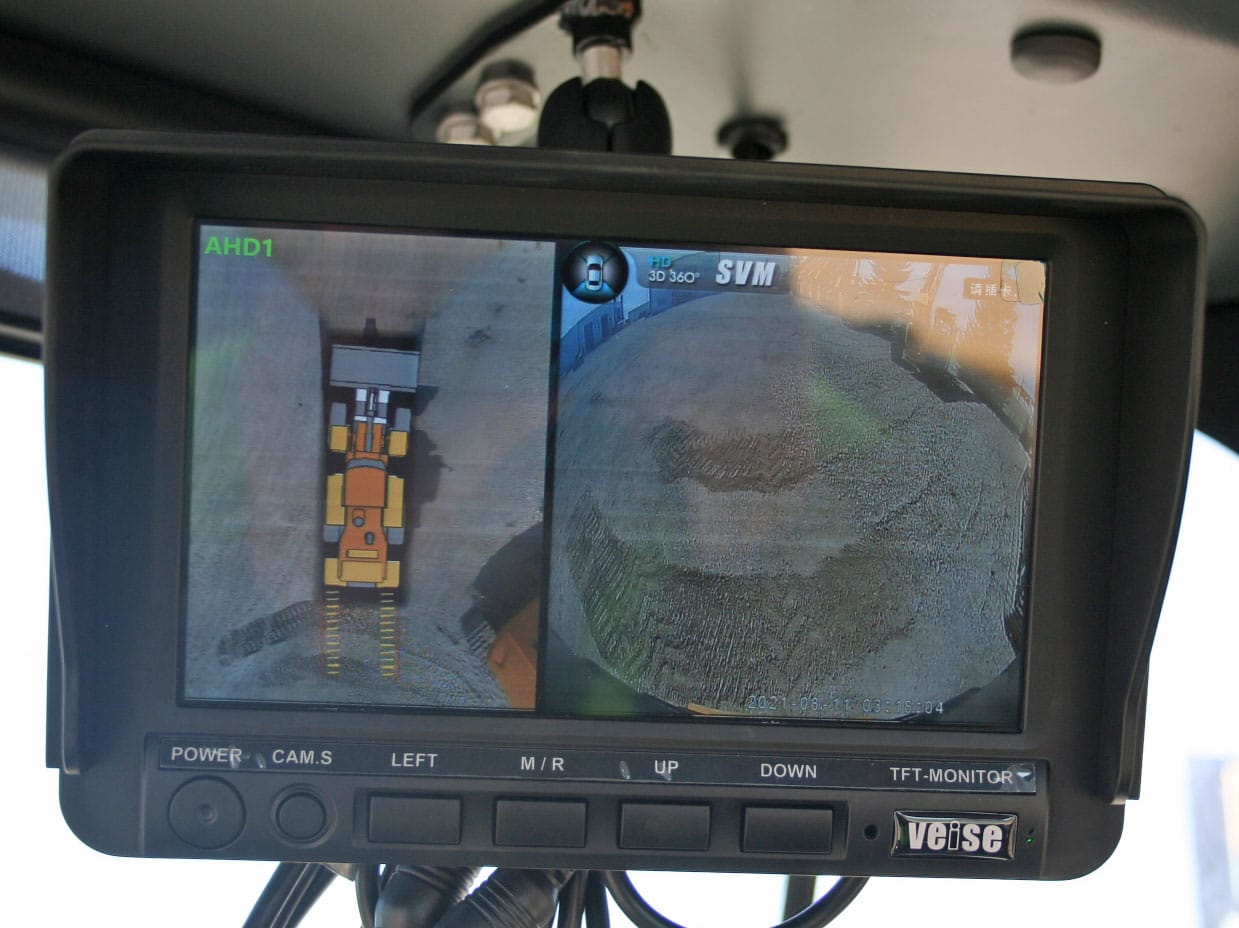

- 360-degree camera with birds eye view display
- No Charge Sany Live Telematics - Real time productivity tracking, maintenance events, location and geo fencing options
- Manual differential lock - Wet disk brakes
- Single Joystick control and Third Function Hydraulics
- Standard Rubber size 20.5 - 25 -- Optional Hippo Tires available
