SANY STH1056A

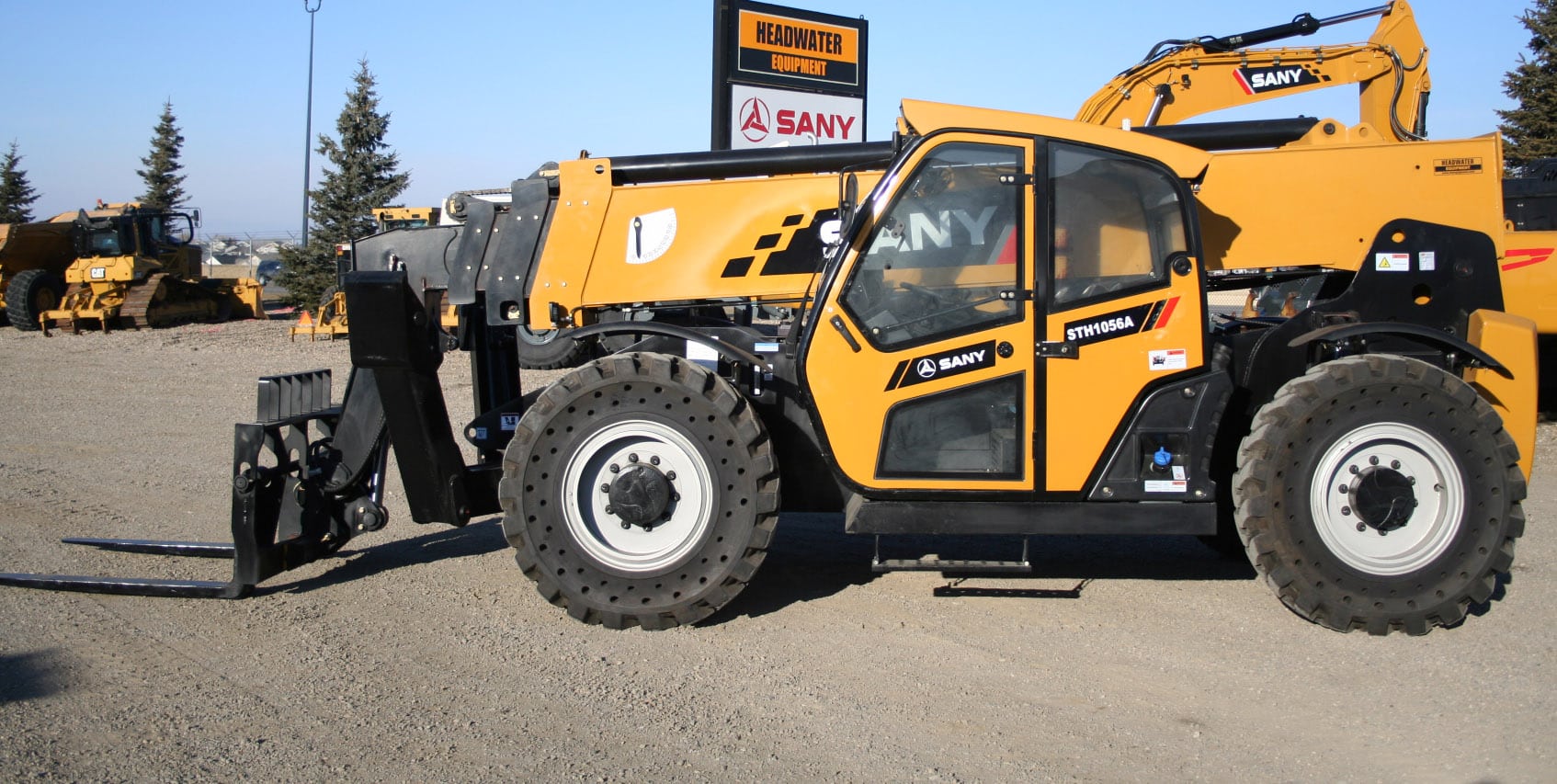

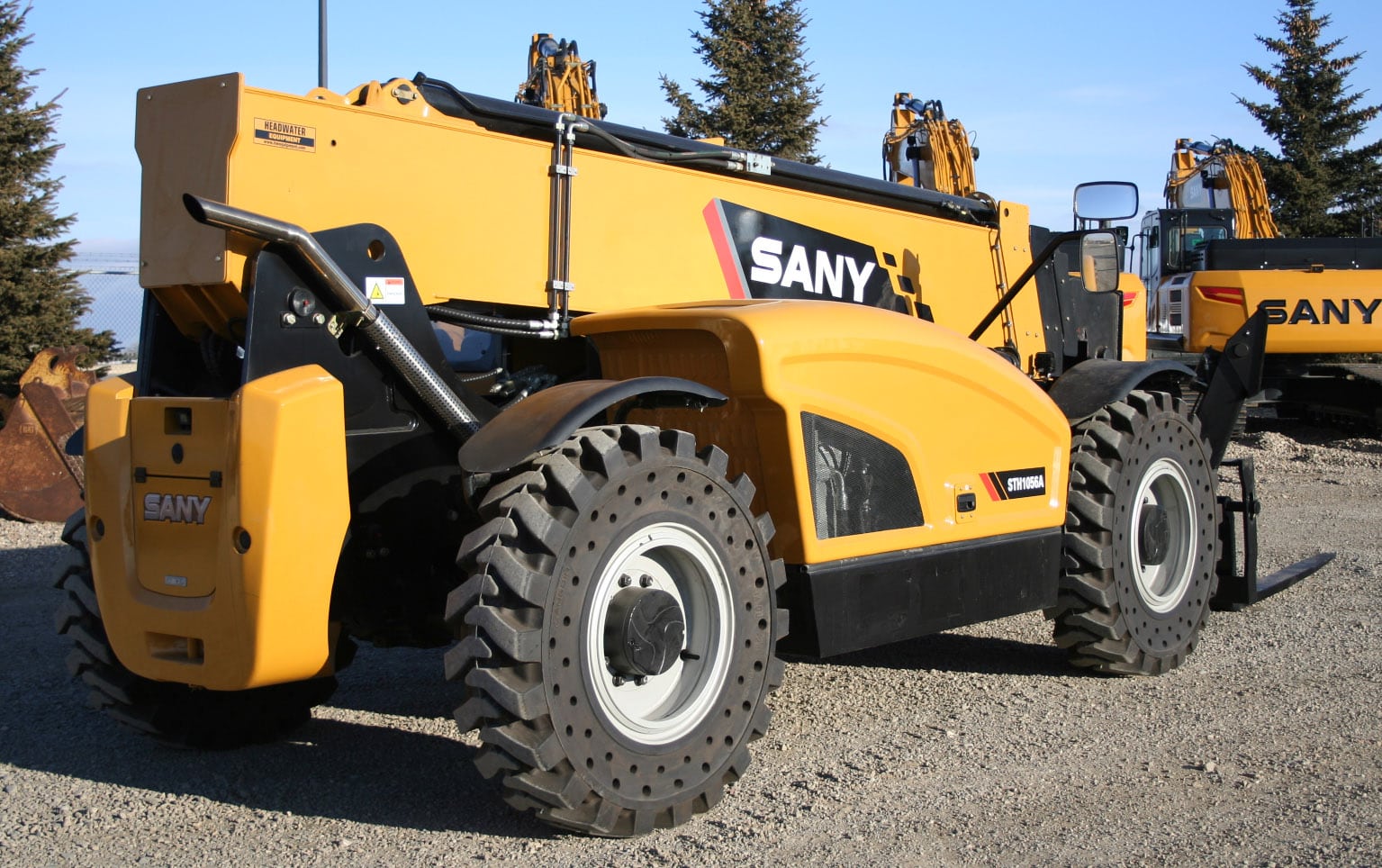

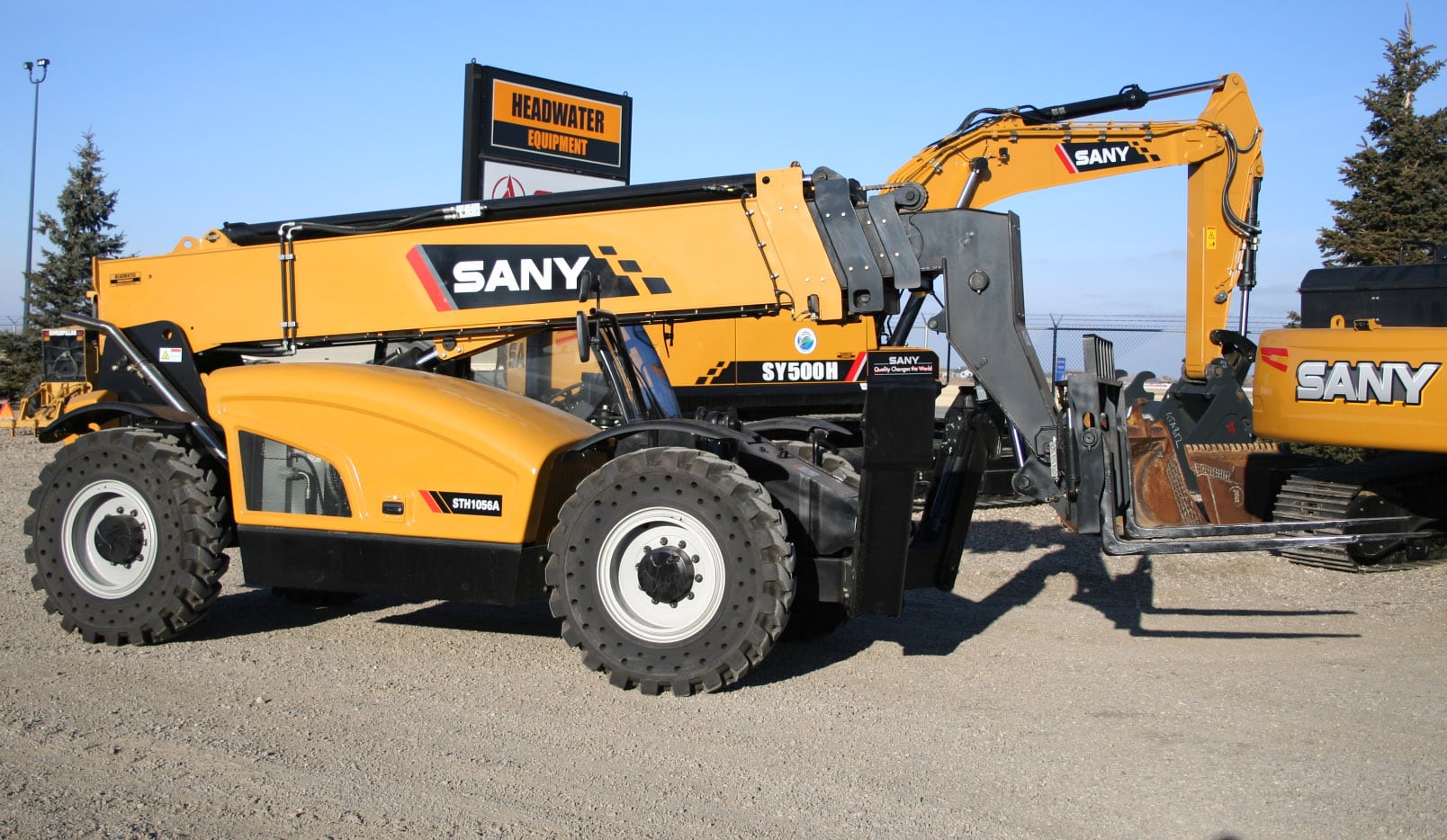

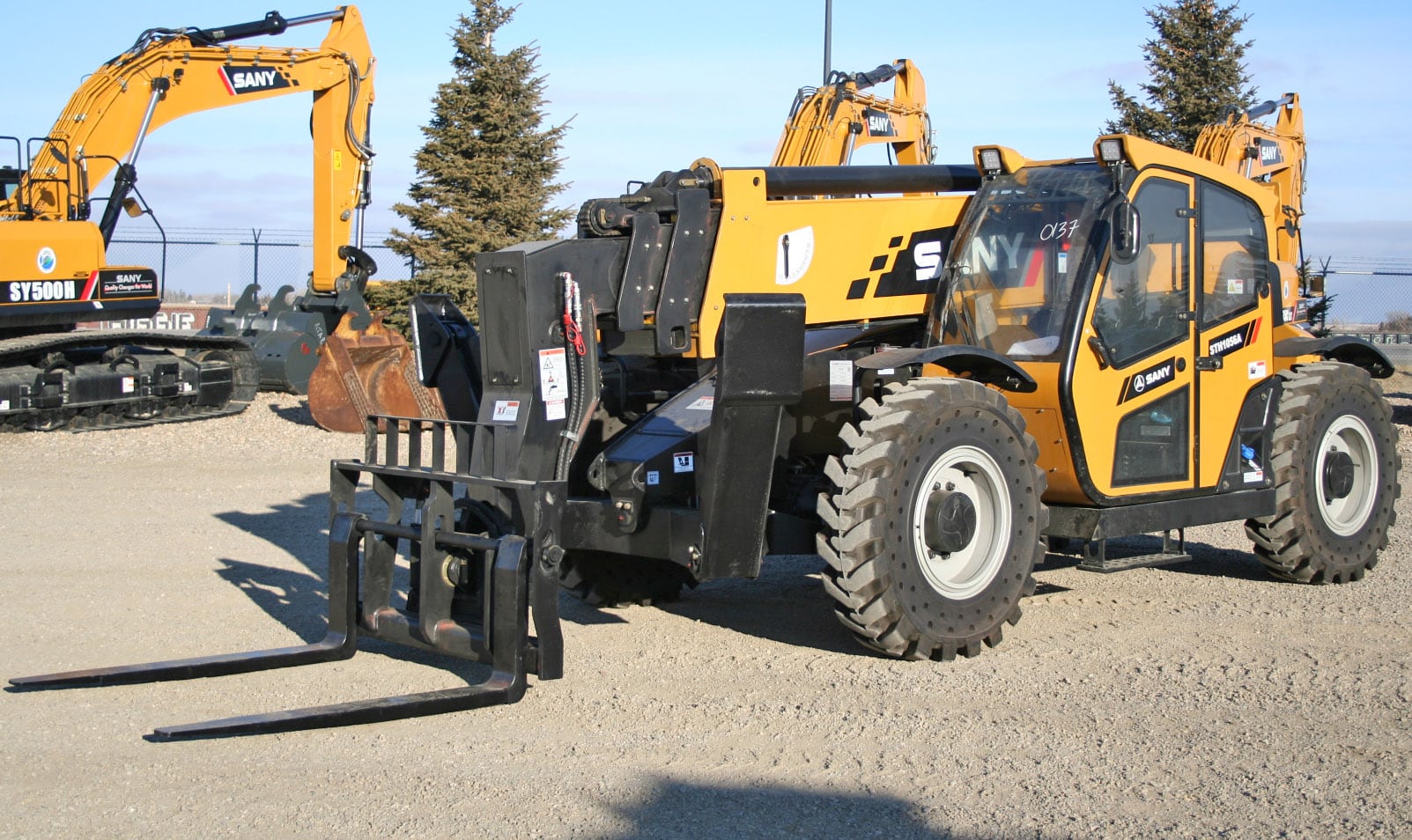

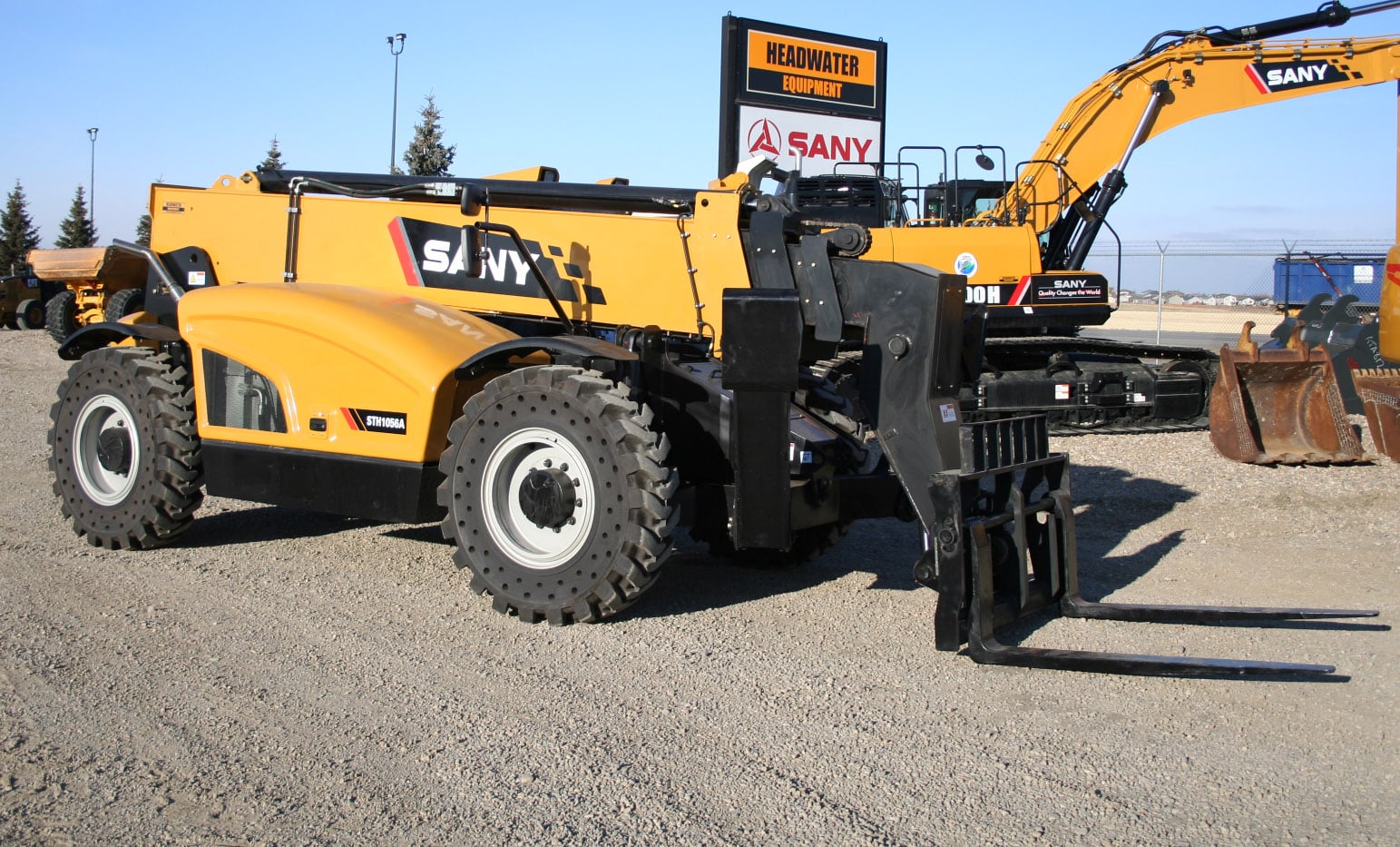

The SANY STH1056A telehandler has been 100% designed, built, and tested for your toughest jobs. To ensure that you can count on years of trouble-free operation, we’ve pushed this machine to the limit with durability testing including over 10,000 laps around our rough terrain test course and over 20,000 cycles on the lift structure at full rated load. The STH1056A telehandler also offers excellent visibility as the operator can see all 4 tires from the seated position with no unobstructed views behind the machine. Standard features include wide-angle rearview camera and reverse sensing system, LED work lights, flashing beacon, and lift hook. You can also choose from an array of extra options such as an open or fully enclosed cab with heat and AC, a selection of fork carriages and fork combinations, and your choice of 74 hp with no DEF requirements or 130 hp allowing you to configure the STH1056A to perform for your needs.
PERFORMANCE - Boom (Extend/Retract): | 15 sec | 16 sec |
---|---|
PERFORMANCE - Outside Turning Radius (4WS): | 4.30 m | 14' 11" |
COMPONENTS - Hydraulic Pump: | Kawasaki Load Sense Piston Pump |
COMPONENTS - Axles F/R: | Dana 223 | Dana 212 |
CAPACITIES - Fuel Tank Capacity: | 135 L | 36 gal |
PERFORMANCE - Boom (Raise/Lower): | 11 sec | 14 sec |
OVERALL DIMENSIONS - Maximum Lift Height: | 17.13 m | 56' 2" |
PERFORMANCE - Maximum Drive Speed: | 32 kph | 20 mph |
OVERALL DIMENSIONS - Weight: | 15 100 kg | 33,290 lb |
CAPACITIES - Torque: | 488 Nm | 360 lbf |
CAPACITIES - Electrical System: | 24 volt |
OVERALL DIMENSIONS - Height, Stowed: | 2.55 m | 8' 4" |
OVERALL DIMENSIONS - Width: | 2.56 m | 8' 5" |
PERFORMANCE - Auxiliary Hydraulic Pressure: | 17 MPa | 2,466 psi |
OVERALL DIMENSIONS - Maximum Forward Reach: | 13.08 m | 42' 11" |
PERFORMANCE - Maximum Lift Capacity: | 4 536 kg | 10,000 lb |
PERFORMANCE - Lift Capacity at Maximum Height: | 2 267 kg | 5,000 lb |
CAPACITIES - Hydraulic Tank Capacity: | 124 L | 33 gal |
ropstype: | Open |
PERFORMANCE - Frame Leveling: | +/- 10 degrees |
PERFORMANCE - Lift Capacity at Maximum Reach: | 1 361 kg | 3,000 lb |
COMPONENTS - Engine: | Deutz |
CAPACITIES - Hydraulic System Capacity: | 159 L | 42 gal |
PERFORMANCE - Auxiliary Hydraulic Flow: | 63 L/min | 17 GPM |
OVERALL DIMENSIONS - Wheelbase: | 3.49 m | 11' 5" |
OVERALL DIMENSIONS - Length, Stowed (Without Forks): | 6.28 m | 20' 7" |
COMPONENTS - Hydraulic Manifold: | Parker |
OVERALL DIMENSIONS - Ground Clearance (Center): | 0.46 m | 1' 6" |
OVERALL DIMENSIONS - Ground Clearance (Axle): | 0.46 m | 1' 6" |
COMPONENTS - Transmission: | Dana VDT12000 |
PERFORMANCE - Standard Tire Size: | 400/75-28 |
Features
- Reverse sensing system

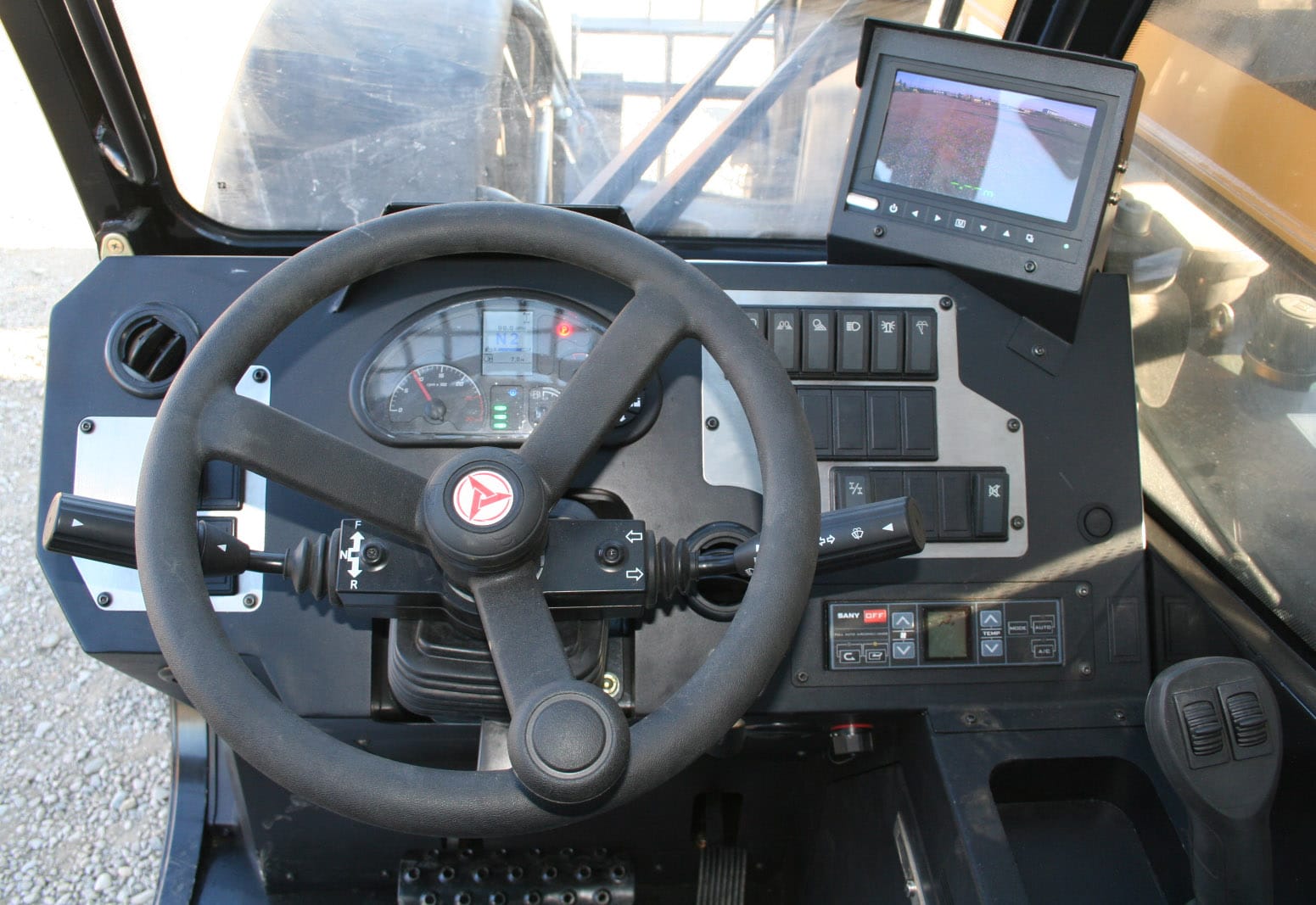

- Wide-angle rear camera gives unobstructed view behind the machine

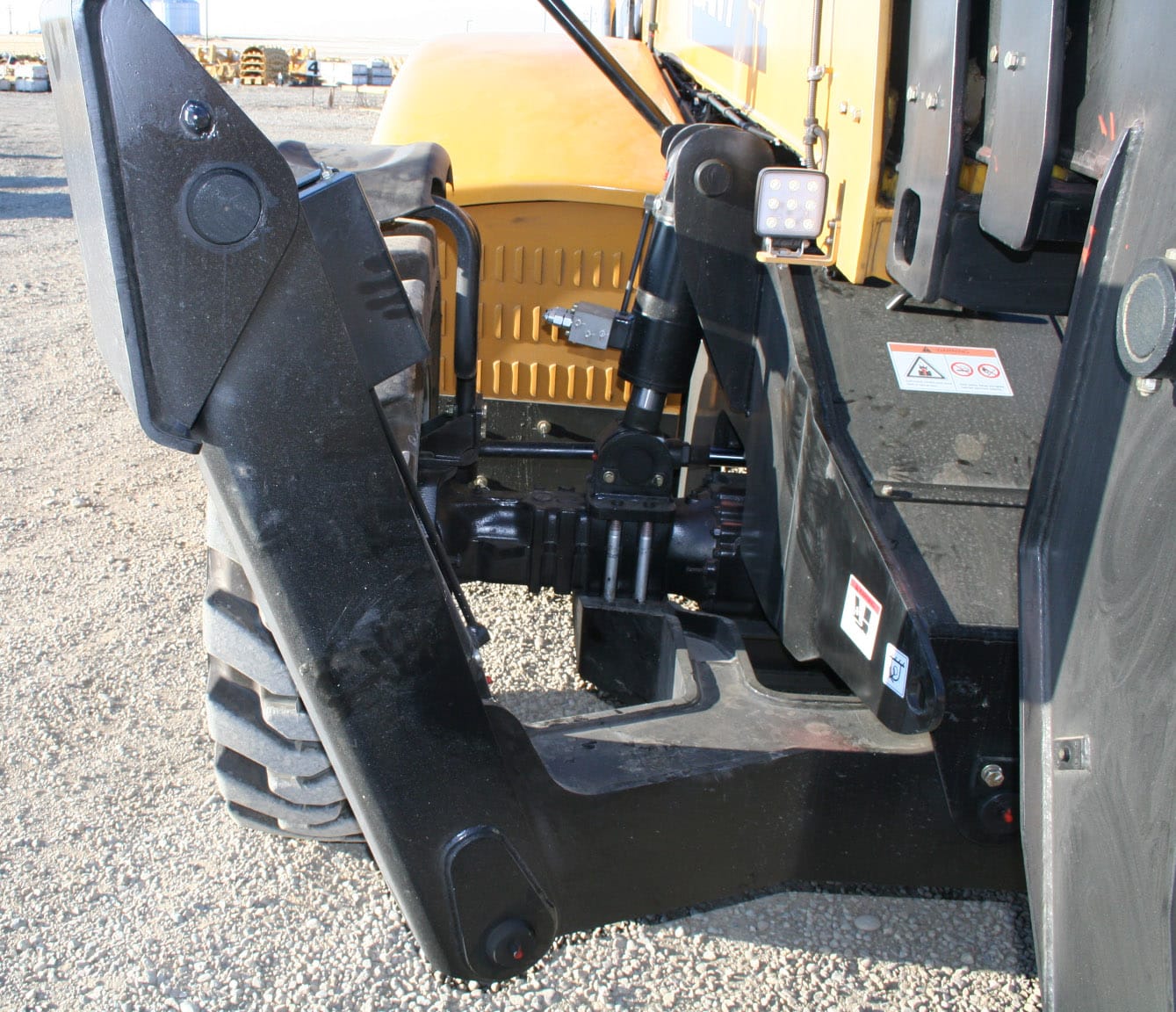

- Axle-mounted stabilizers allow for smoother frame leveling when deployed
- Cummins engine, Dana axles and transmission, Parker hydraulics, and a Kawasaki load sense piston pump

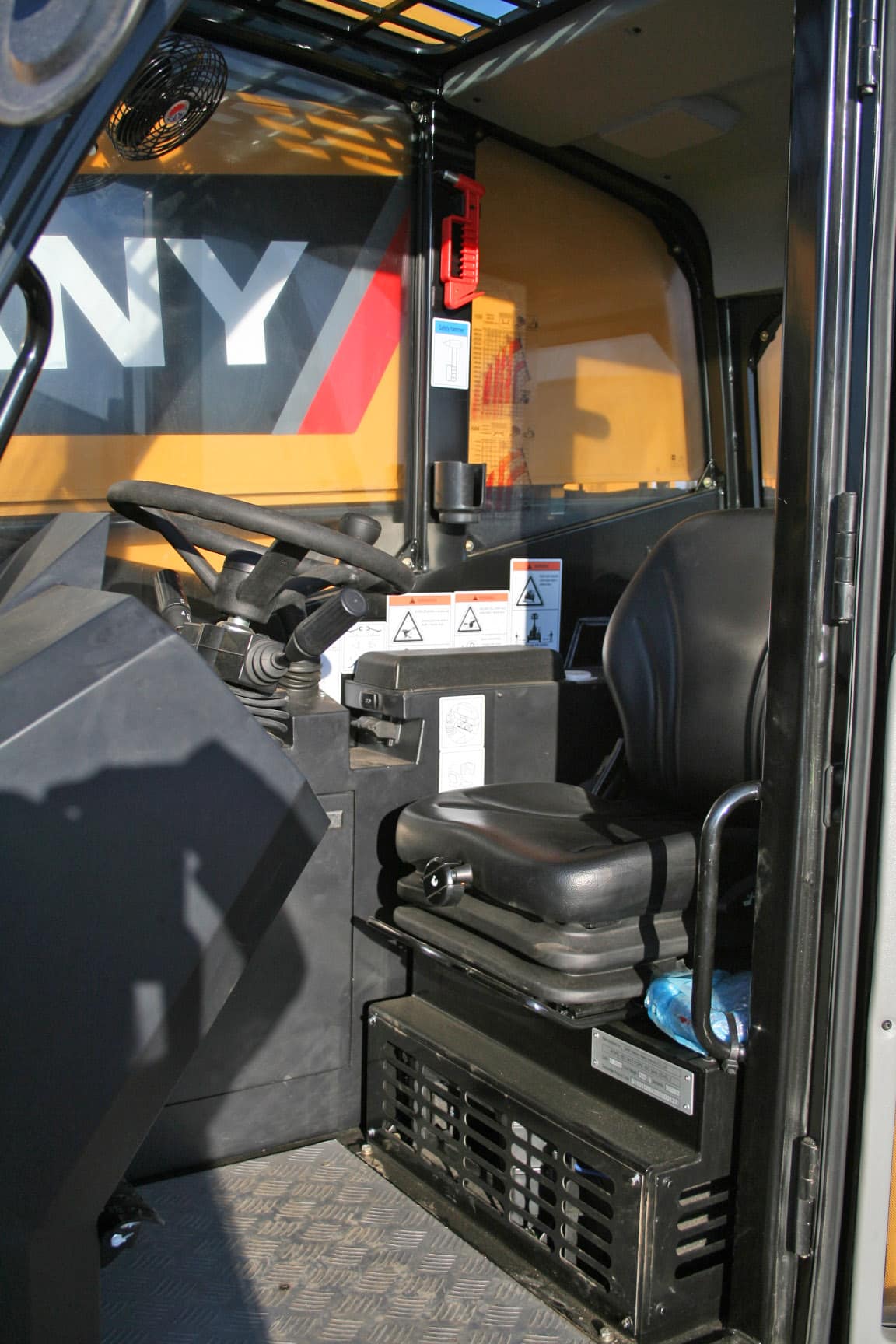

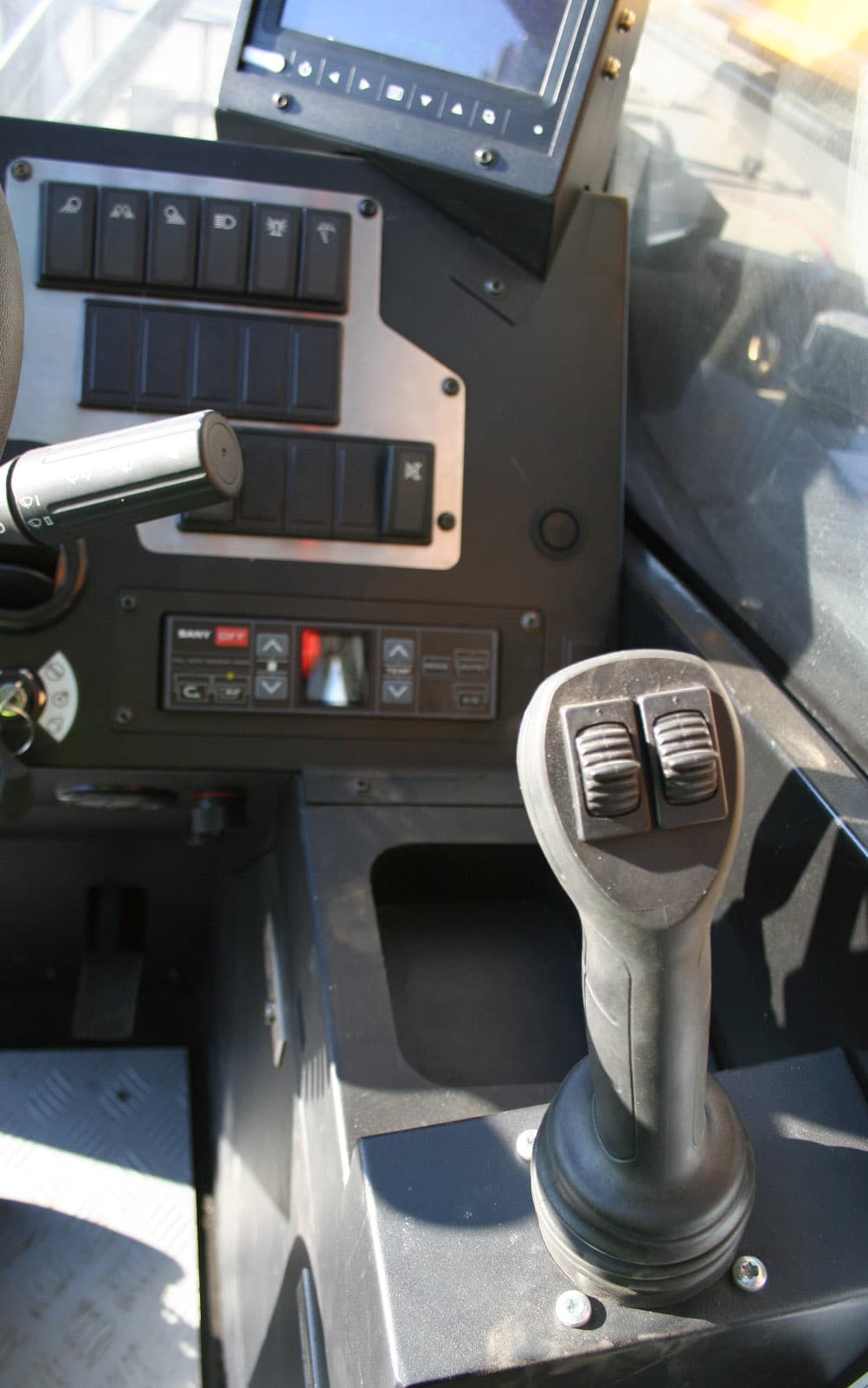

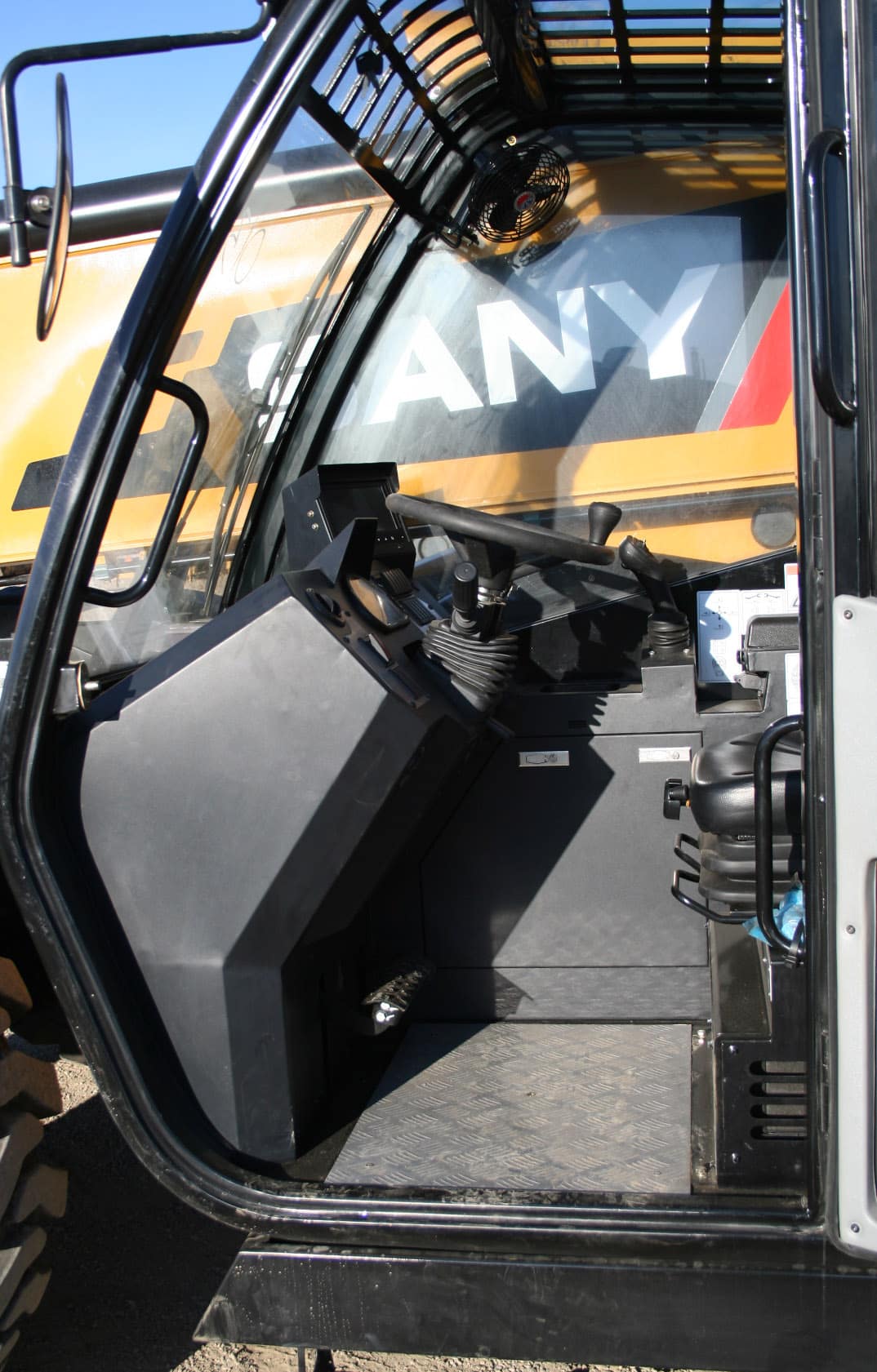

- Large, spacious cab offers improved operator comfort and reduced fatigue

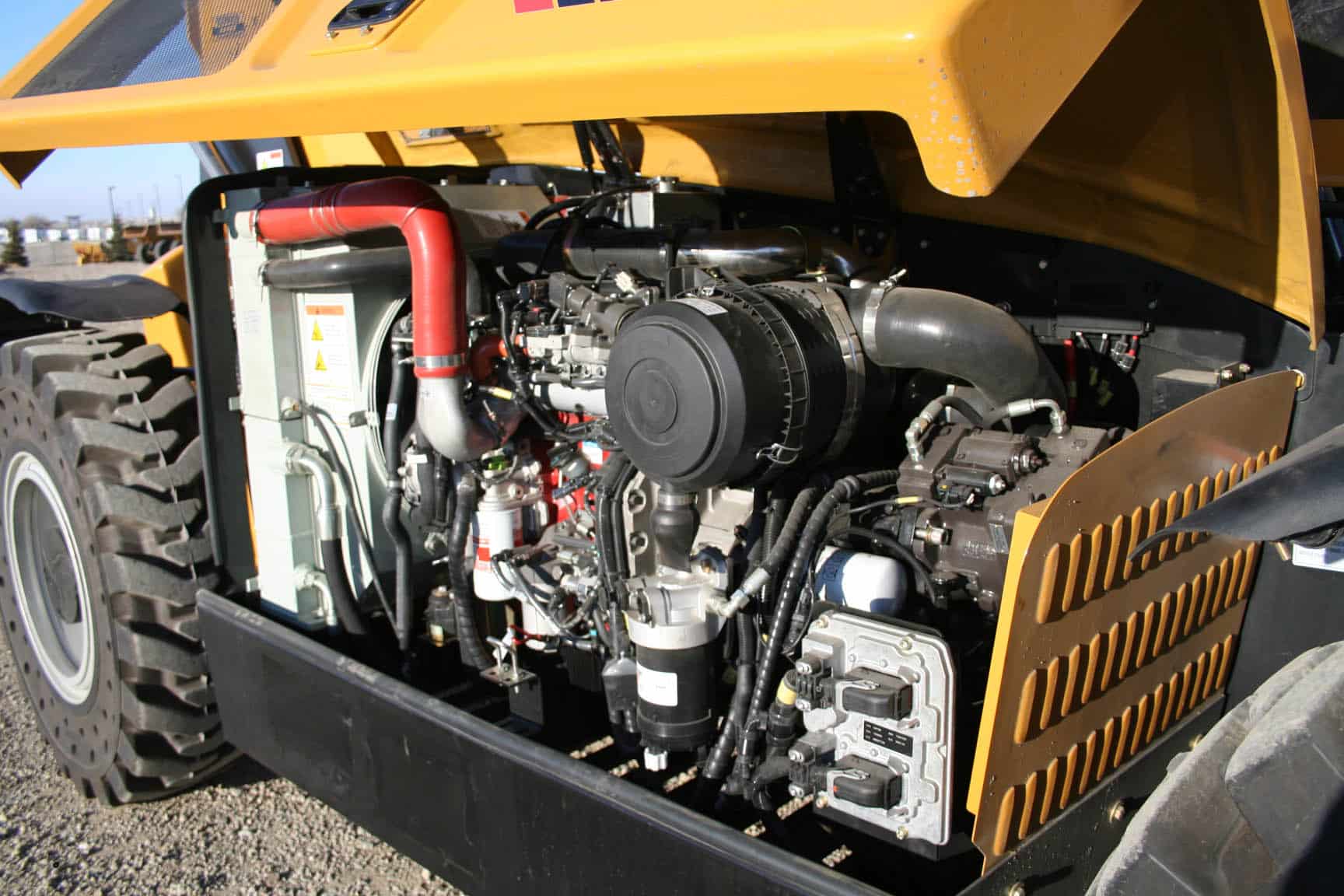

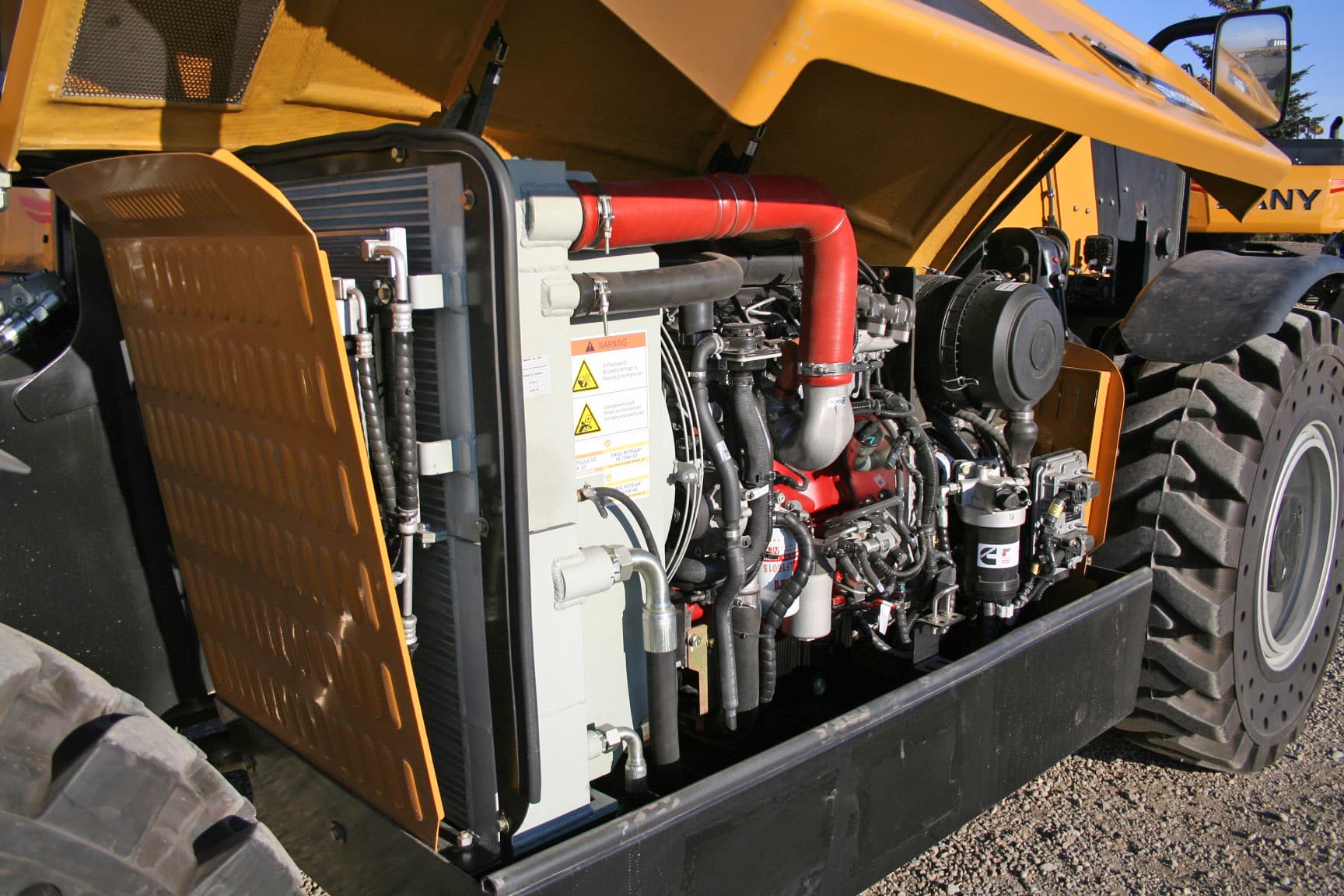

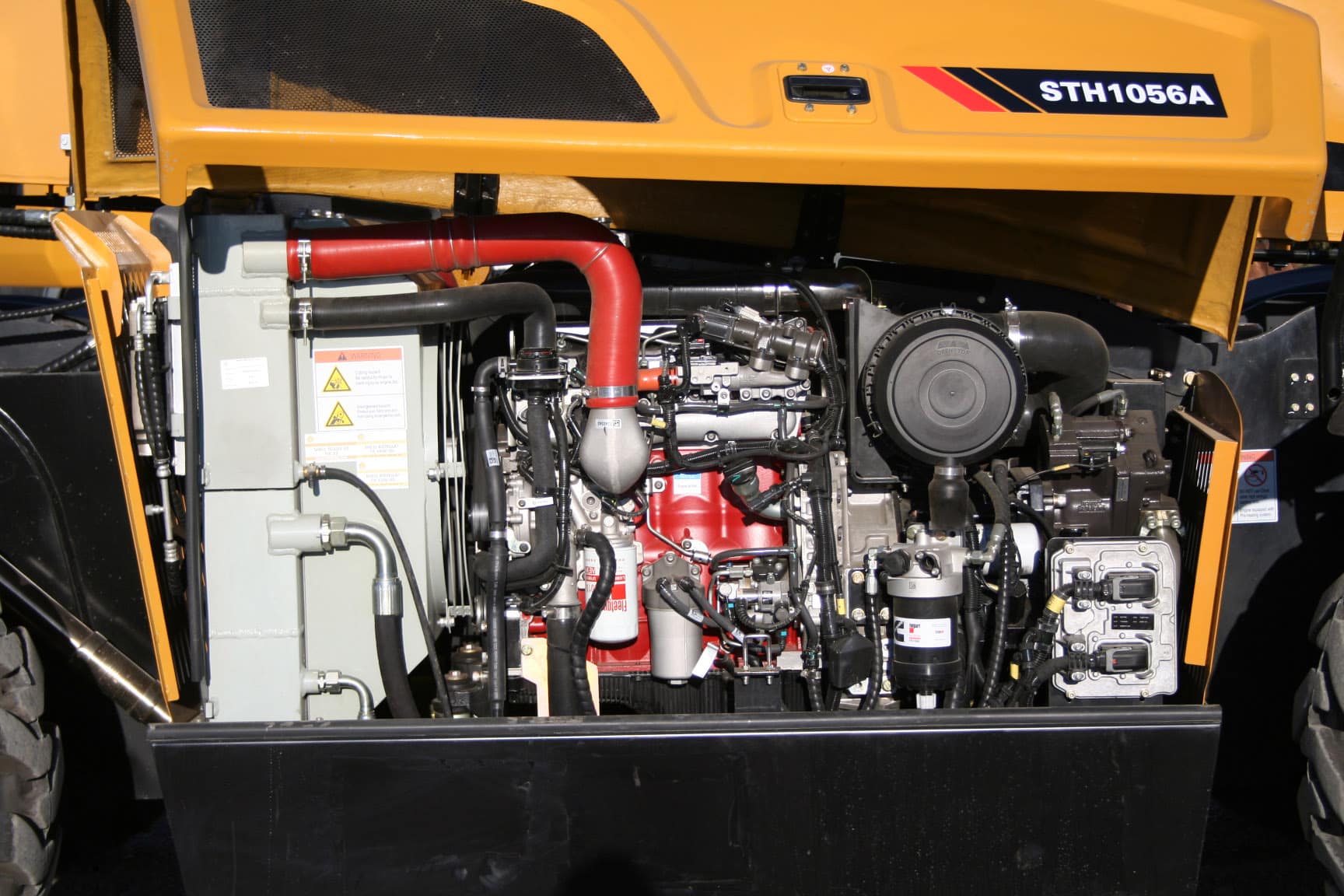

- Simple maintenance with easy fluid level check and convenient access to maintenance items with side-mounted engine
