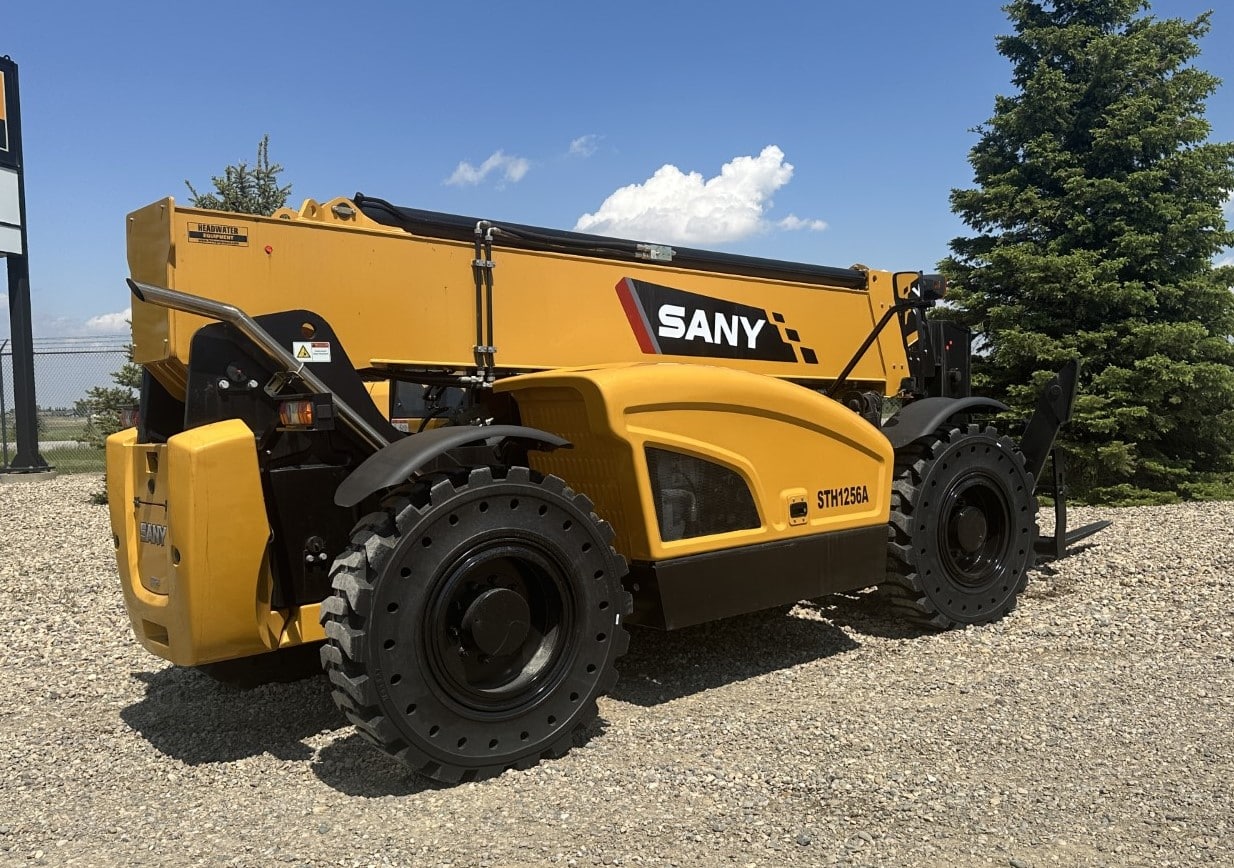

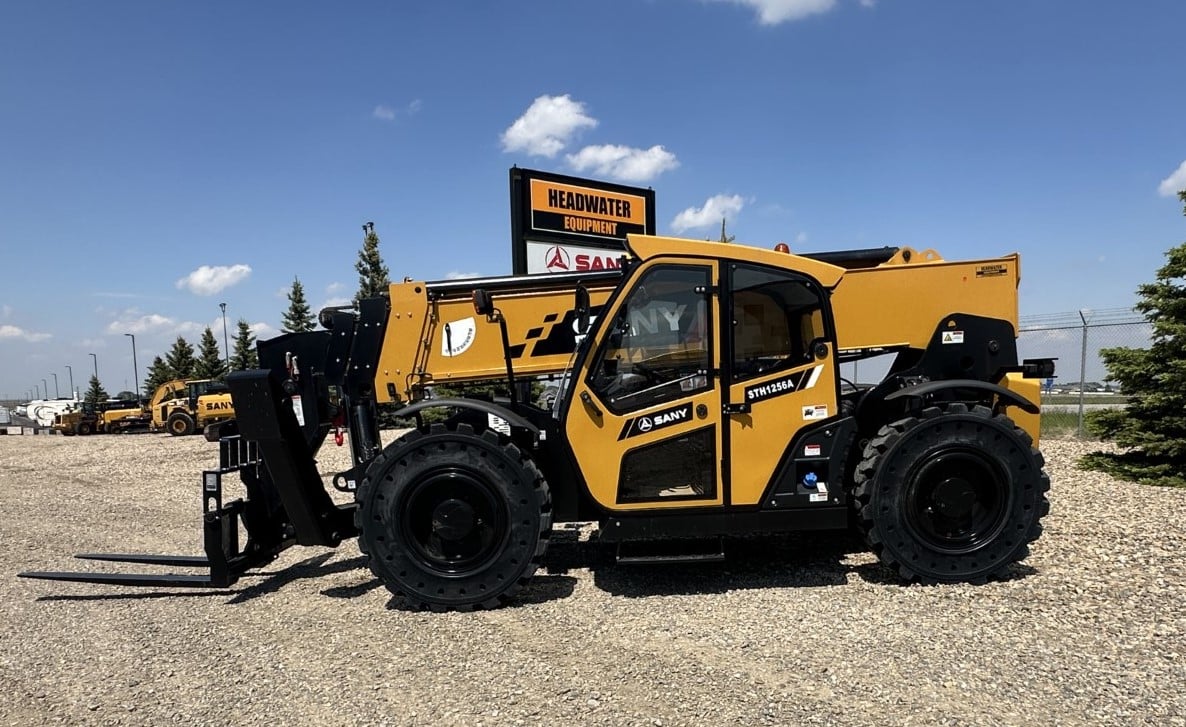

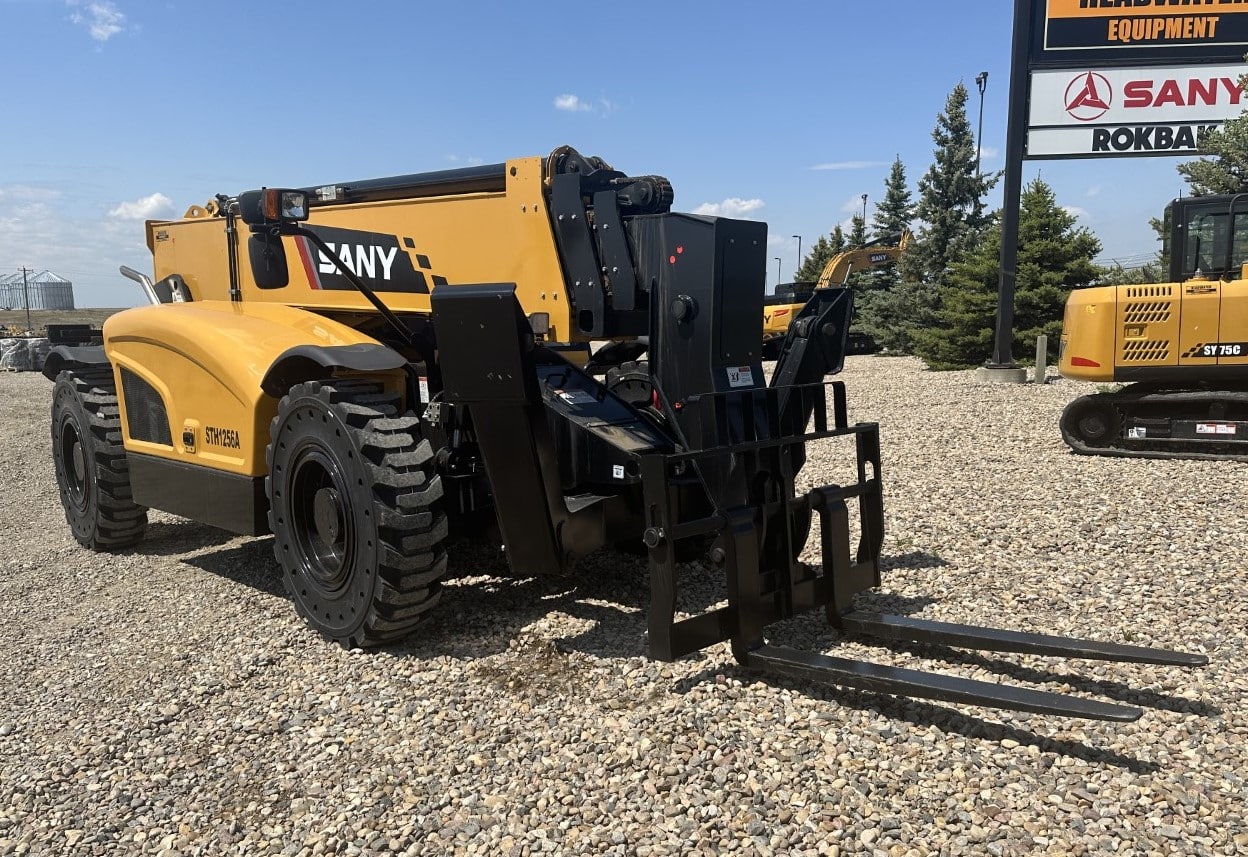

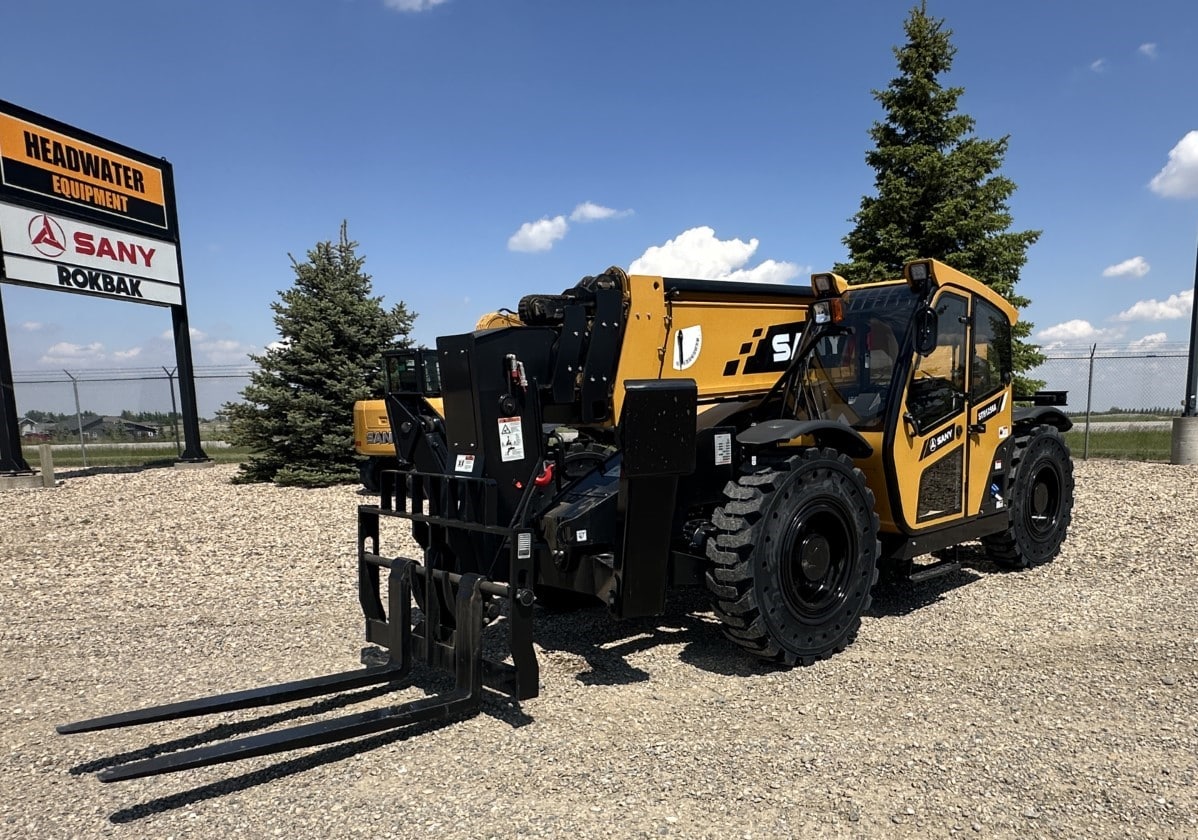

SANY STH1256A

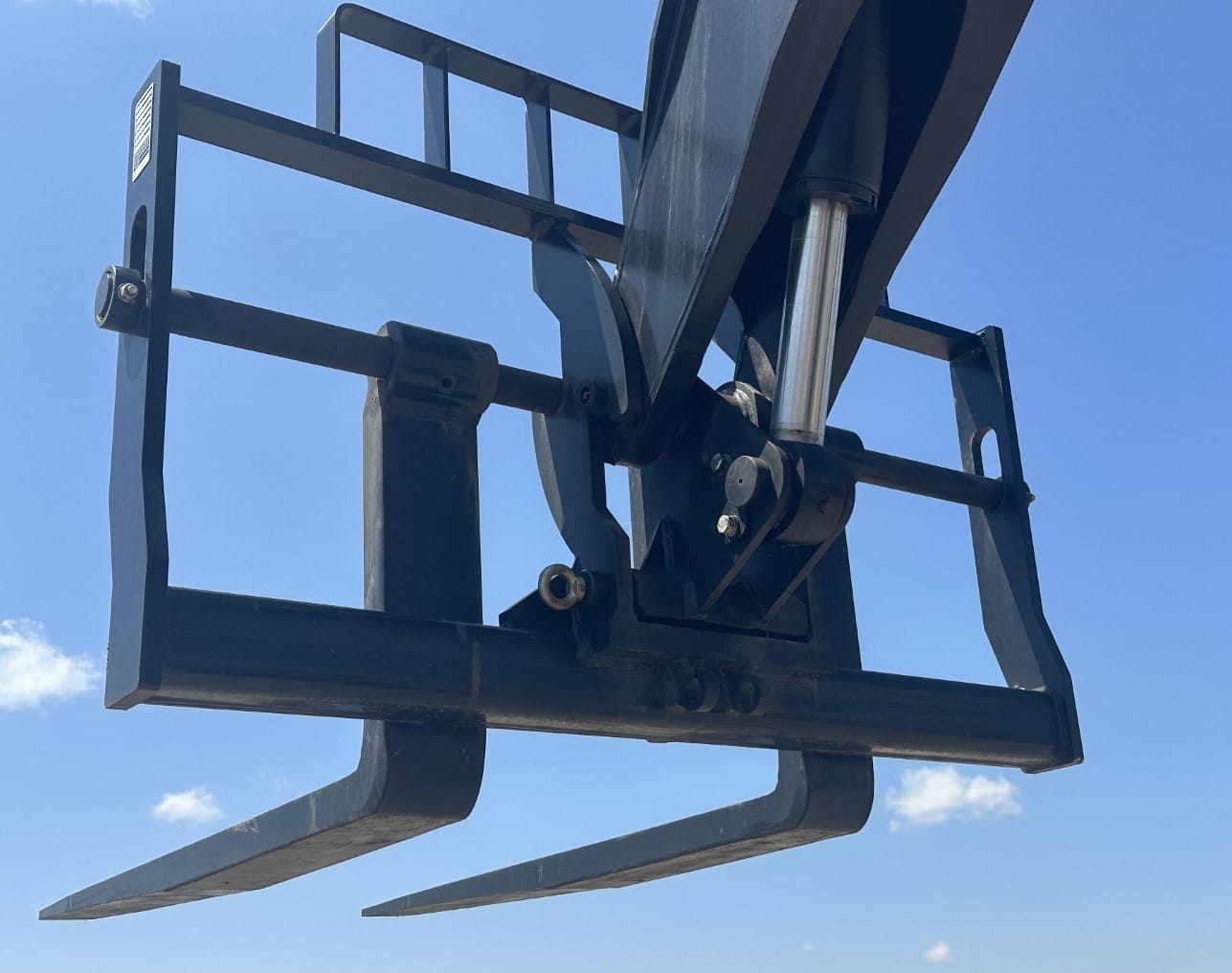

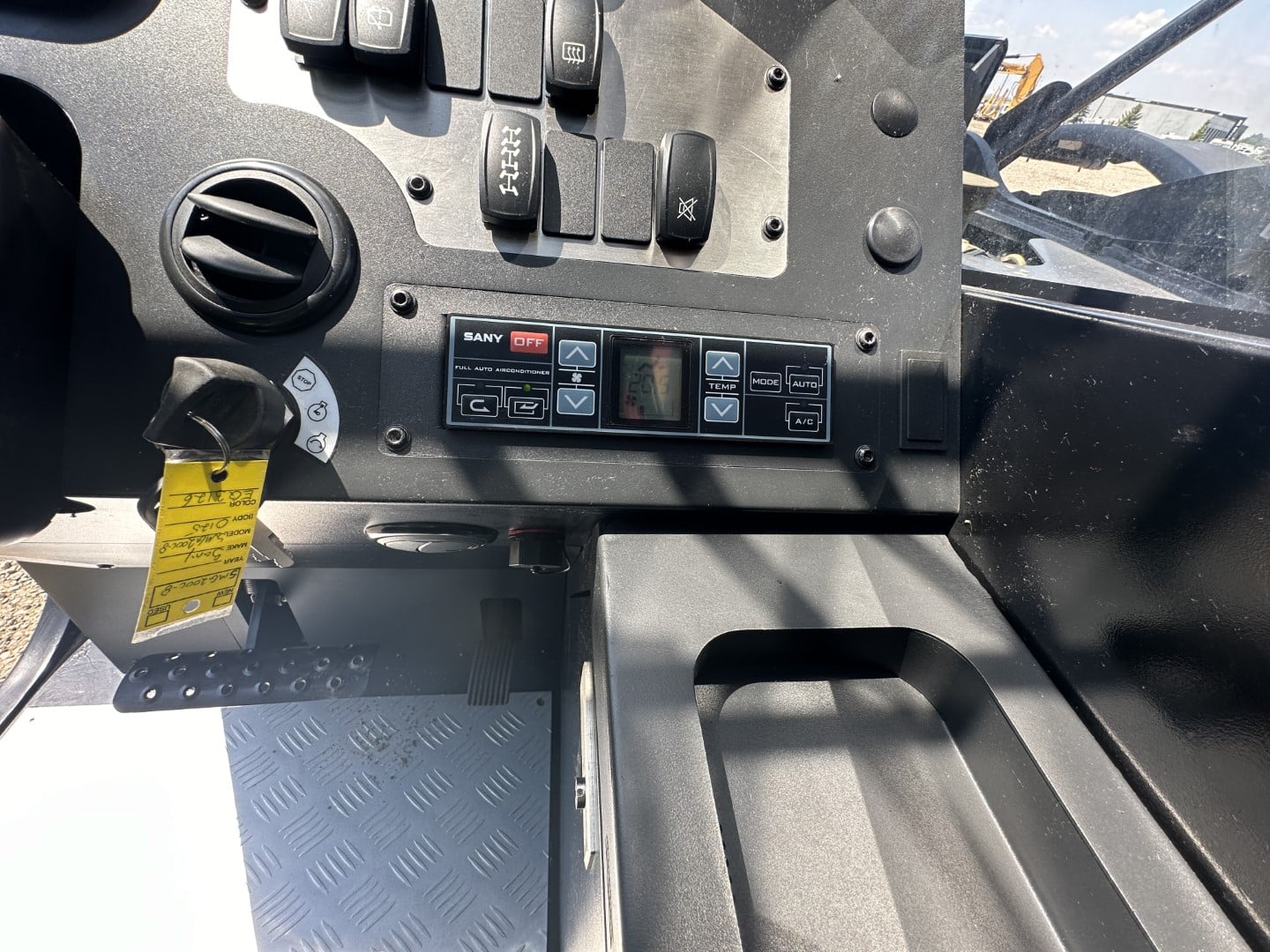

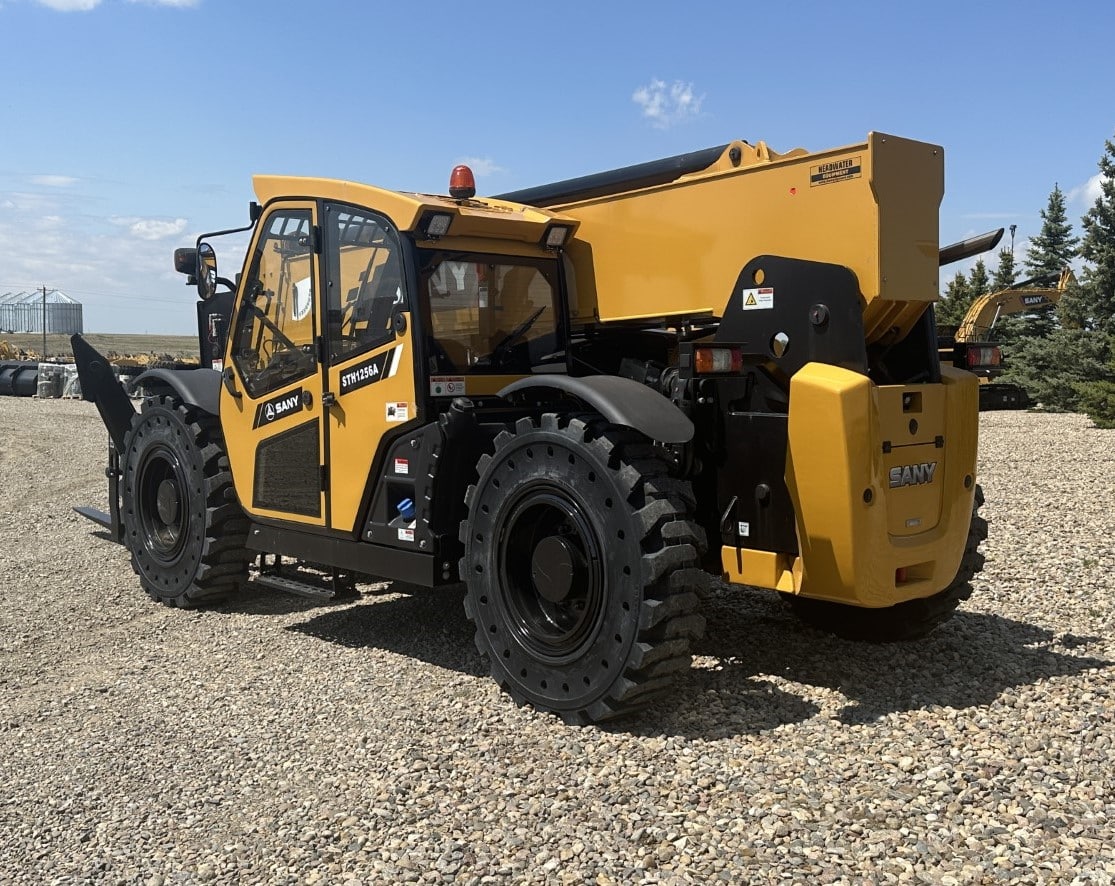

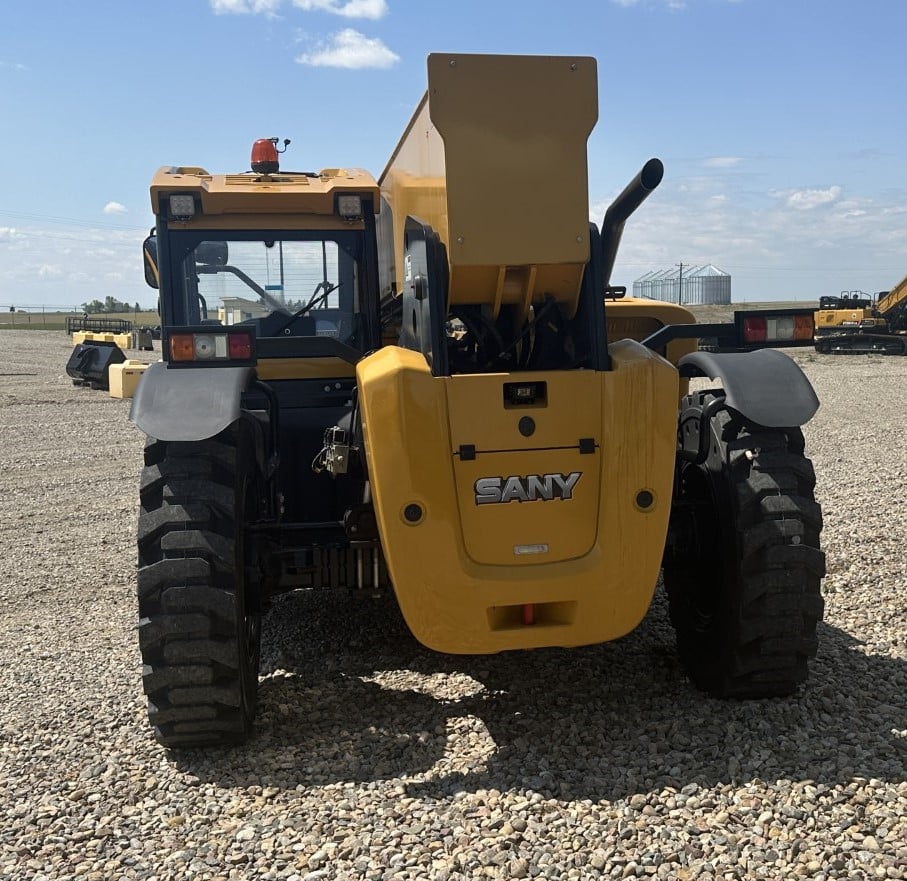

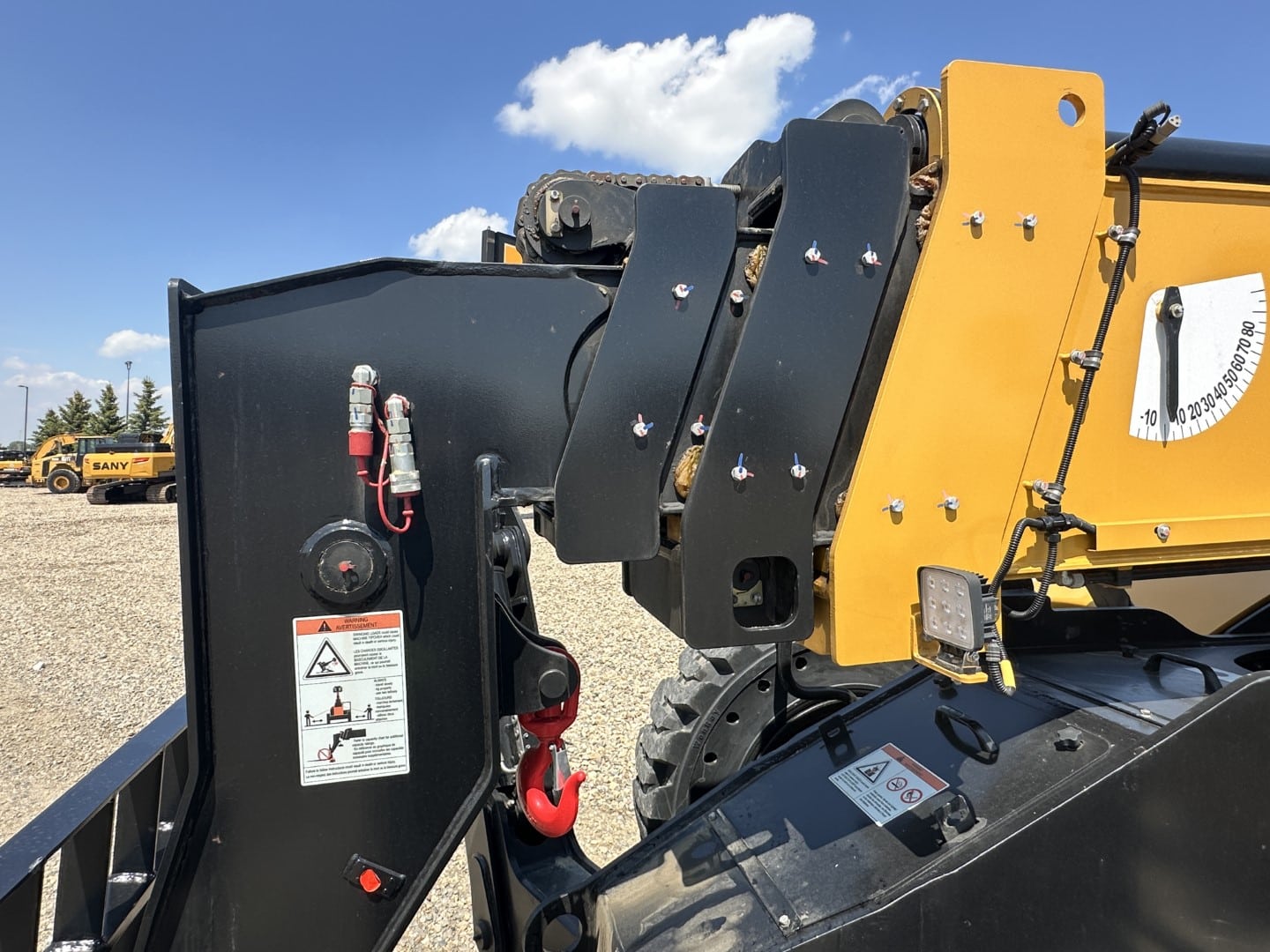

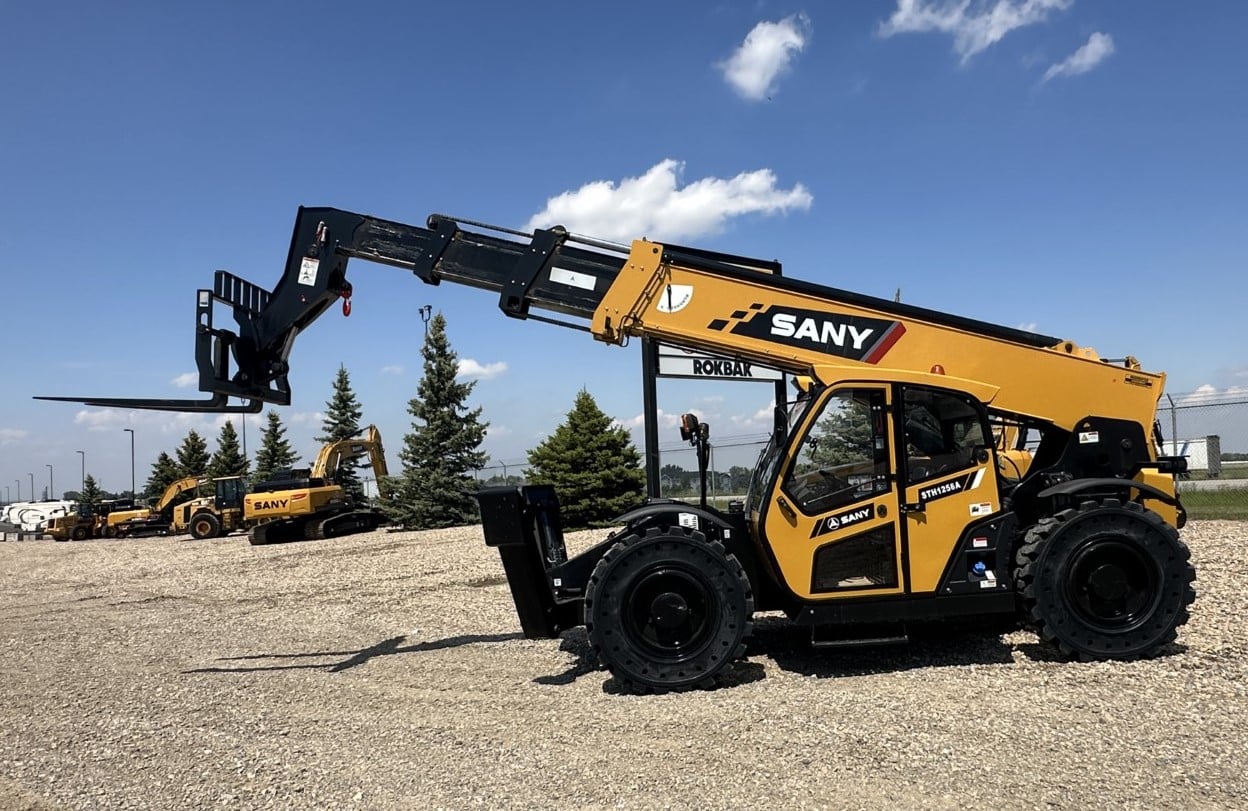

The SANY STH1256A telehandler has been 100% designed, built, and tested for your toughest jobs. To ensure that you can count on years of trouble-free operation, we’ve pushed this machine to the limit with durability testing including over 10,000 laps around our rough terrain test course and over 20,000 cycles on the lift structure at full rated load. The STH1256A telehandler also offers excellent visibility as the operator can see all 4 tires from the seated position with no unobstructed views behind the machine. Standard features include wide-angle rearview camera and reverse sensing system, LED work lights, flashing beacon, and lift hook. Choose from an open or fully enclosed cab with heat and AC and a selection of fork carriages and fork combinations allowing you to configure the STH1256A to perform for your needs.
| PERFORMANCE - Outside Turning Radius (4WS): | 4.30 m | 14' 1" |
|---|---|
| COMPONENTS - Hydraulic Manifold: | Parker |
| ropstype: | Open |
| CAPACITIES - Fuel Tank Capacity: | 135 L | 36 gal |
| OVERALL DIMENSIONS - Ground Clearance (Center): | 0.46 m | 1' 6" |
| OVERALL DIMENSIONS - Ground Clearance (Axle): | 0.45 m | 1' 6" |
| CAPACITIES - Hydraulic System Capacity: | 159 L | 42 gal |

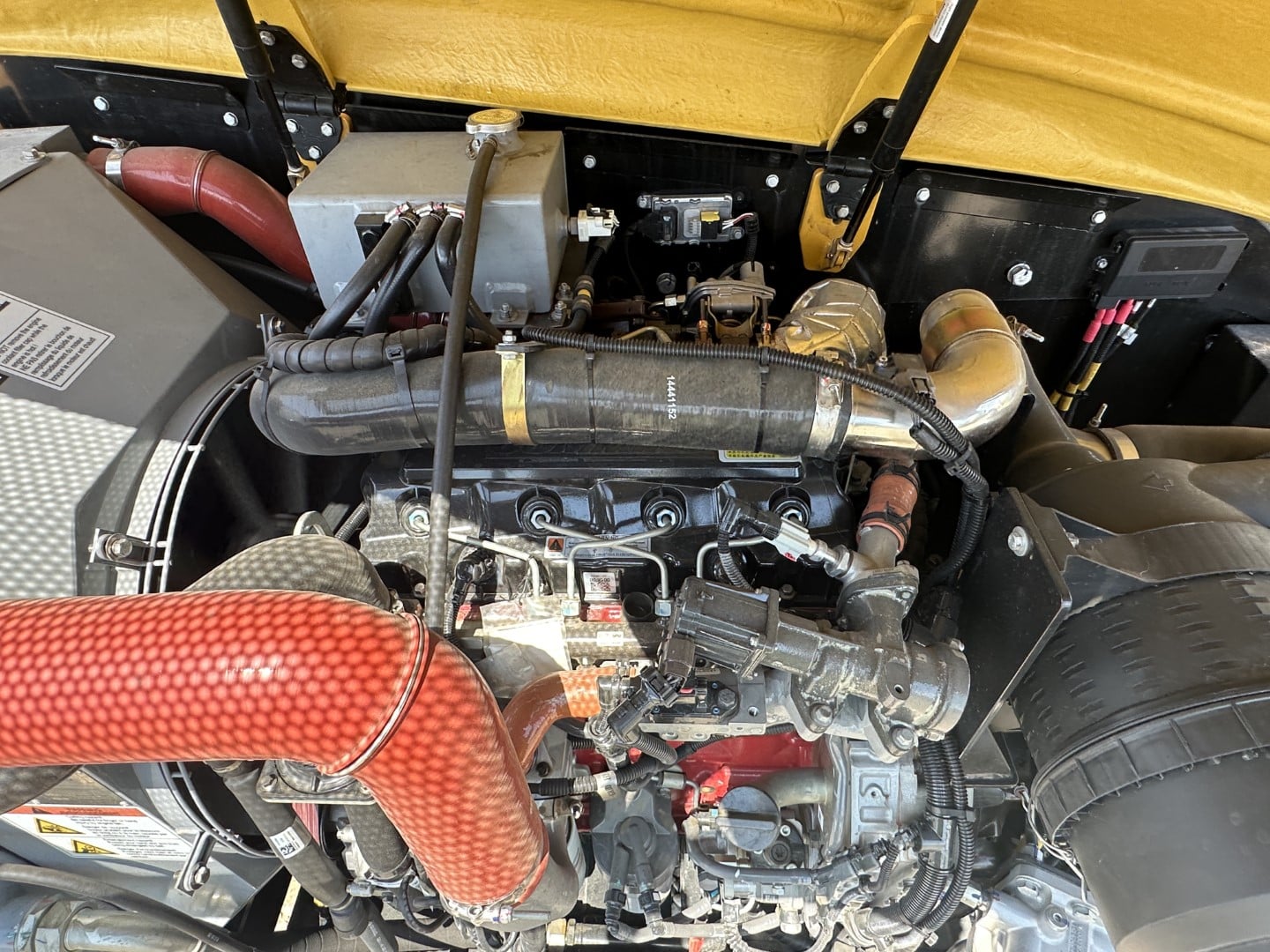

| COMPONENTS - Engine: | Deutz |
| CAPACITIES - Electrical System: | 24 volt |
| OVERALL DIMENSIONS - Maximum Forward Reach: | 13.08 m | 42' 11" |
| PERFORMANCE - Boom (Extend/Retract): | 19 seconds | 19 seconds |
| PERFORMANCE - Boom (Raise/Lower): | 15 seconds | 15 seconds |
| OVERALL DIMENSIONS - Maximum Lift Height: | 17.13 m | 56' 2" |

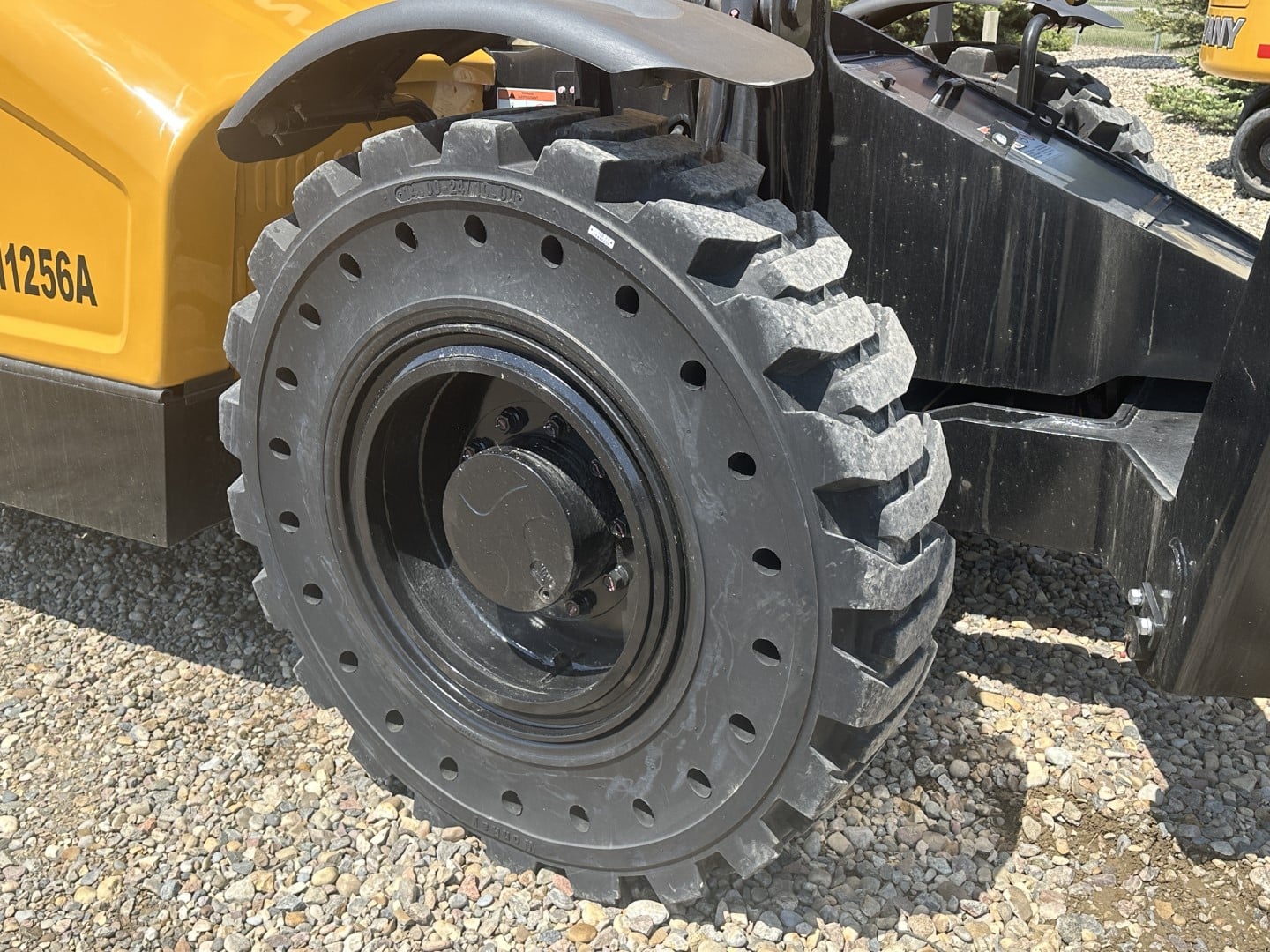

| PERFORMANCE - Standard Tire Size: | 400/75-28 |
| PERFORMANCE - Frame Leveling: | +/- 10 degrees |
| CAPACITIES - Power: | |
| COMPONENTS - Hydraulic Pump: | Kawasaki Load Sense Piston Pump |
| PERFORMANCE - Maximum Lift Capacity: | 5 443 kg | 12,000 lb |
| OVERALL DIMENSIONS - Wheelbase: | 3.49 m | 11' 5" |
| COMPONENTS - Axles F/R: | Dana 223 | Dana 213 |
| OVERALL DIMENSIONS - Weight: | 16 100 kg | 35,494 lb |
| OVERALL DIMENSIONS - Height, Stowed: | 2.55 m | 8' 4" |
| CAPACITIES - Hydraulic Tank Capacity: | 124 L | 33 gal |
| CAPACITIES - Torque: | 488 Nm | 360 lbf-ft |
| OVERALL DIMENSIONS - Width: | 2.56 m | 8' 5" |
| COMPONENTS - Transmission: | Dana VDT12000 |
| PERFORMANCE - Maximum Drive Speed: | 32 kph | 18 mph |
| OVERALL DIMENSIONS - Length, Stowed (Without Forks): | 6.28 m | 20' 7" |
| PERFORMANCE - Auxiliary Hydraulic Pressure: | 17 MPa | 2,466 psi |
| PERFORMANCE - Lift Capacity at Maximum Height: | 3 175 kg | 7,000 lb |
| PERFORMANCE - Lift Capacity at Maximum Reach: | 1 588 kg | 3,500 lb |
| PERFORMANCE - Auxiliary Hydraulic Flow: | 63 L/min | 17 gpm |
Features
- Axle-mounted stabilizers allow for smoother frame leveling when deployed

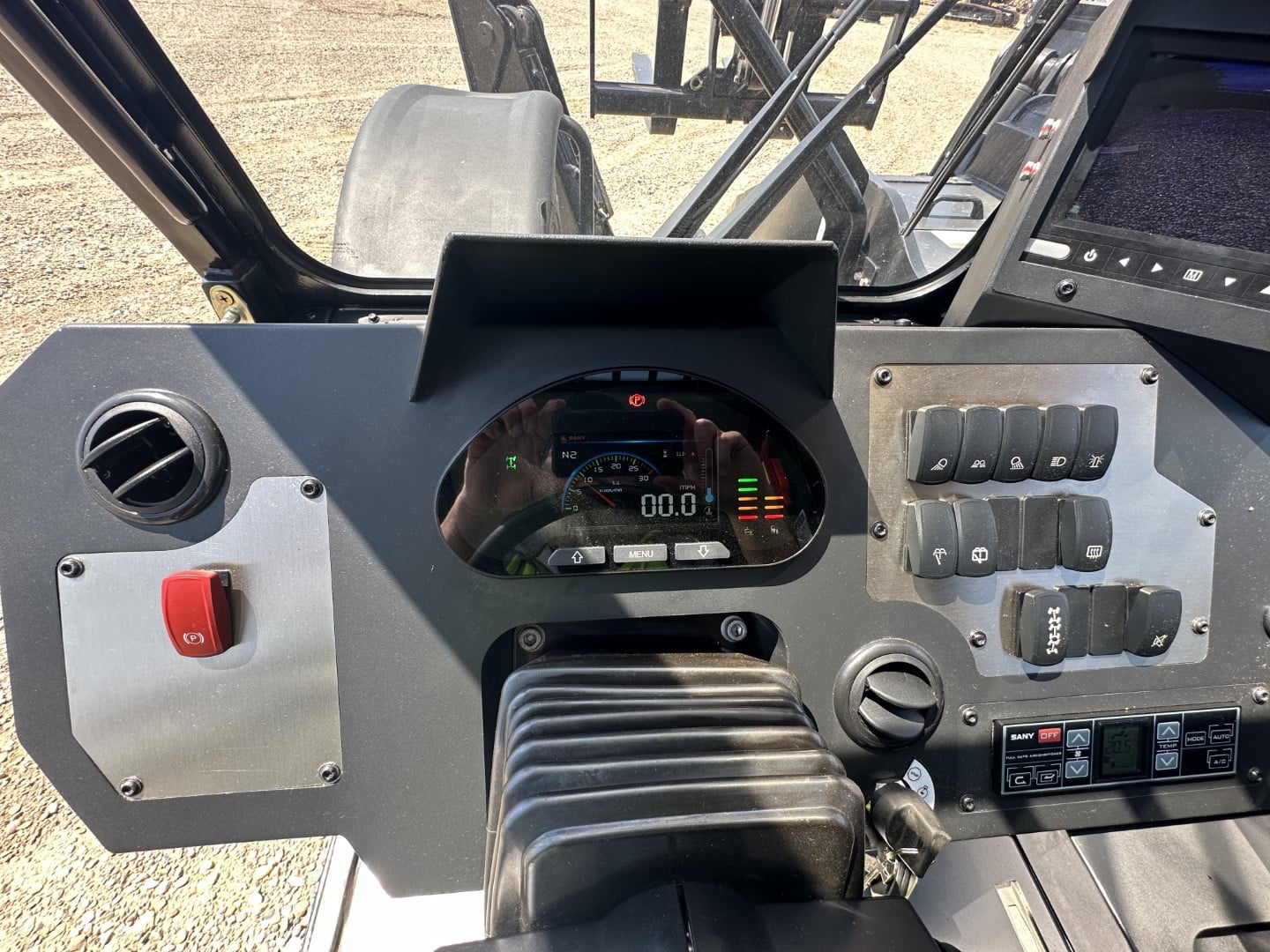

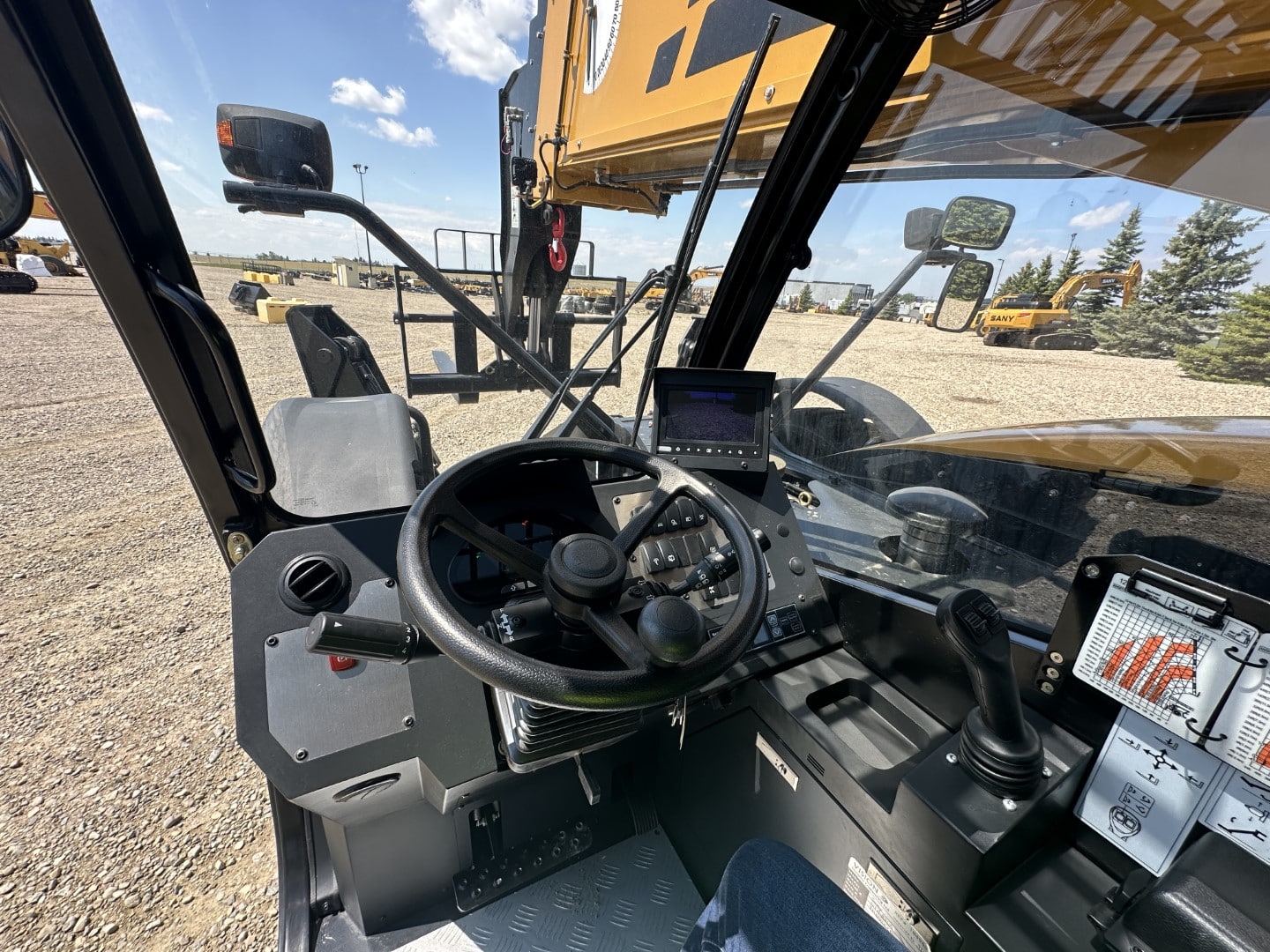

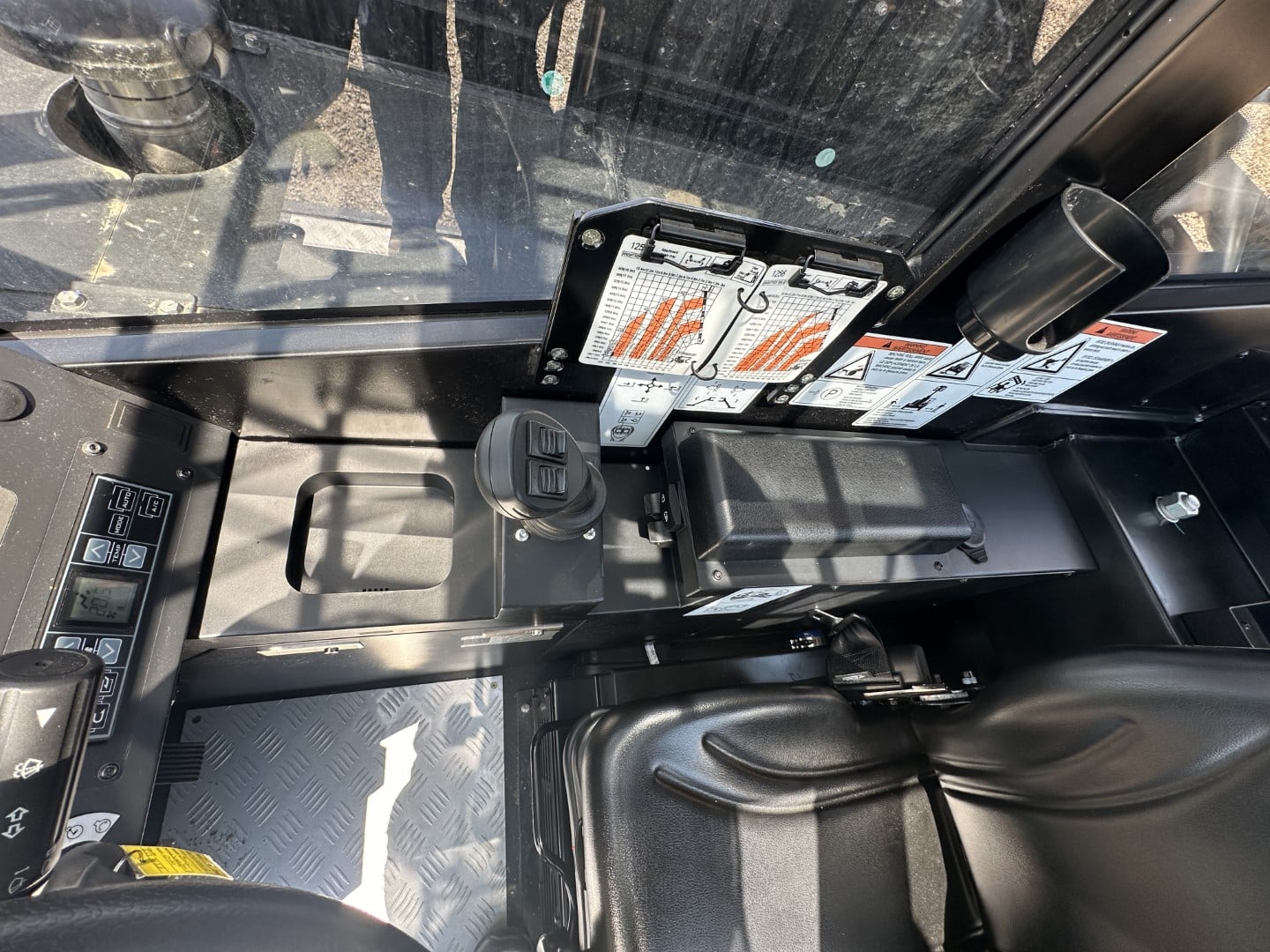

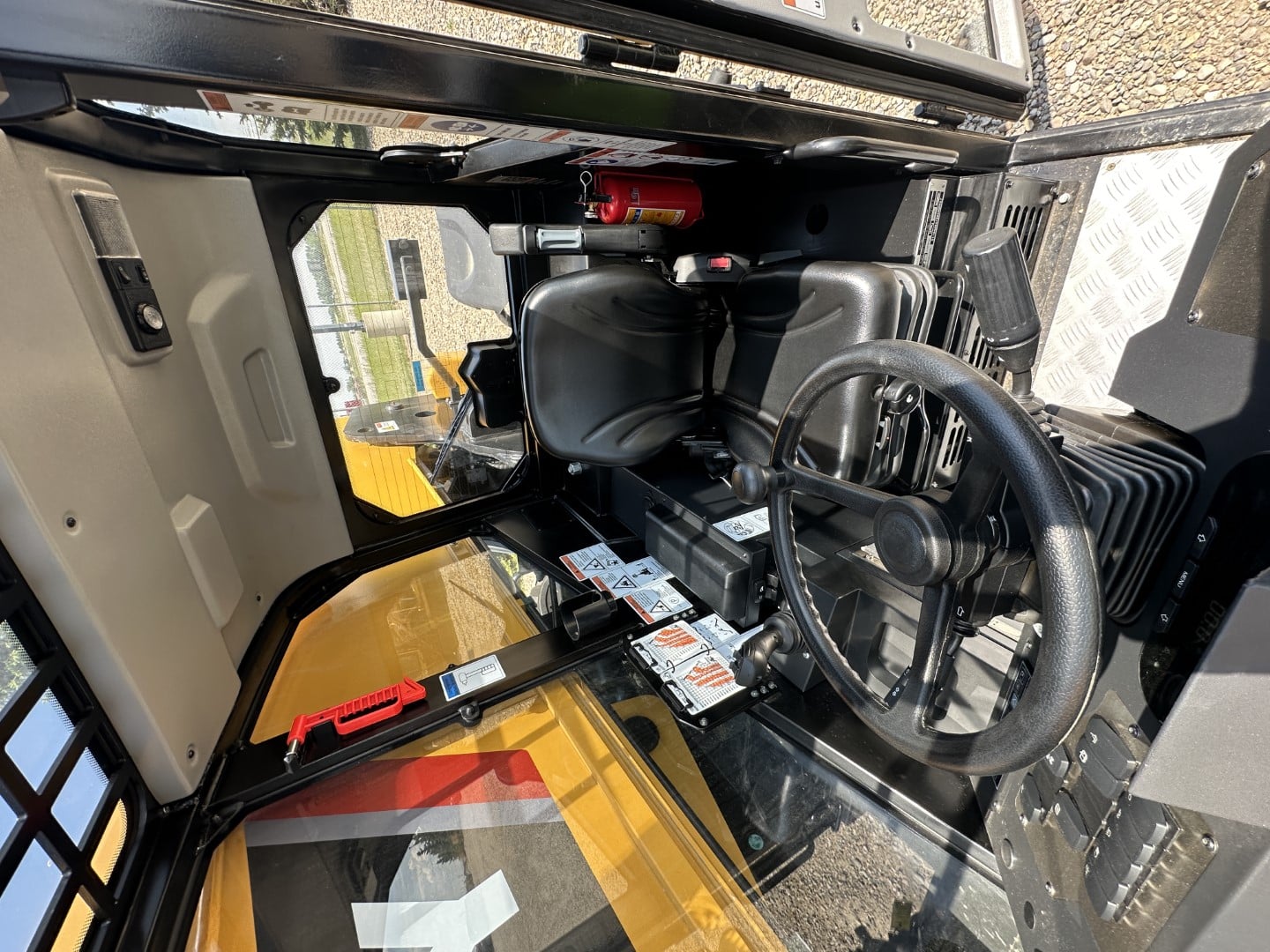

- Large, spacious cab offers improved operator comfort and reduced fatigue
- Reverse sensing system

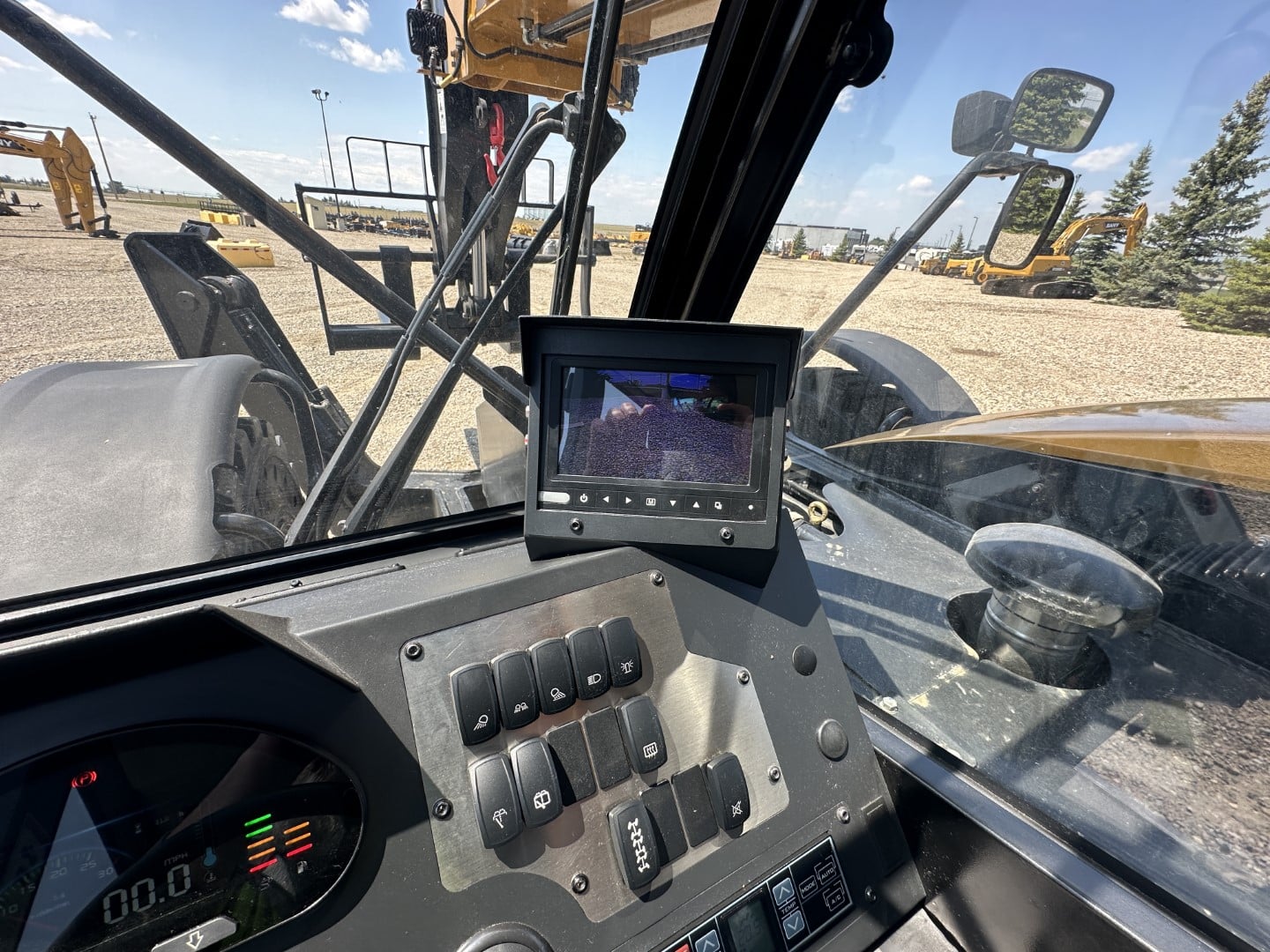

- Wide-angle rear camera gives unobstructed view behind the machine

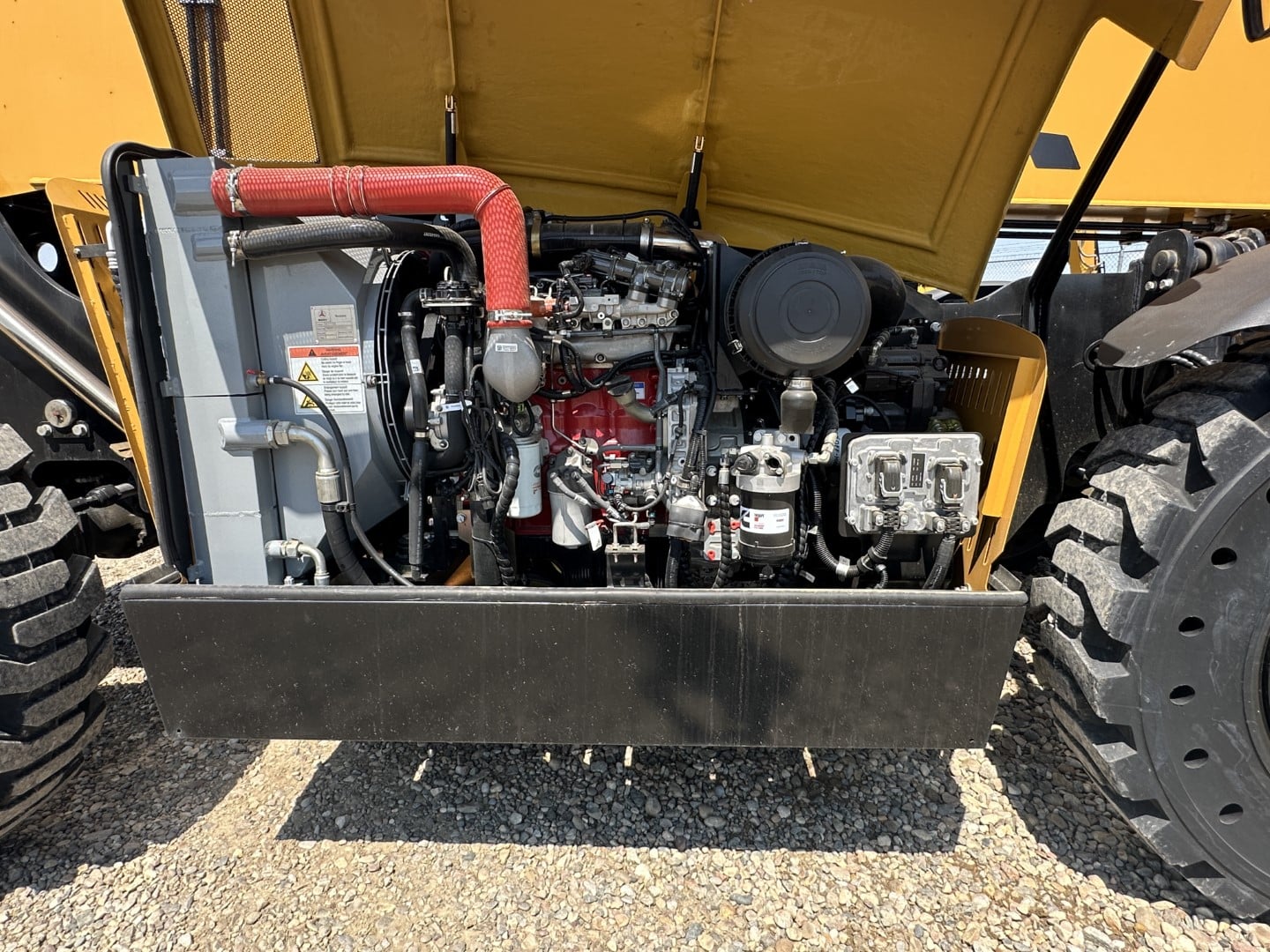

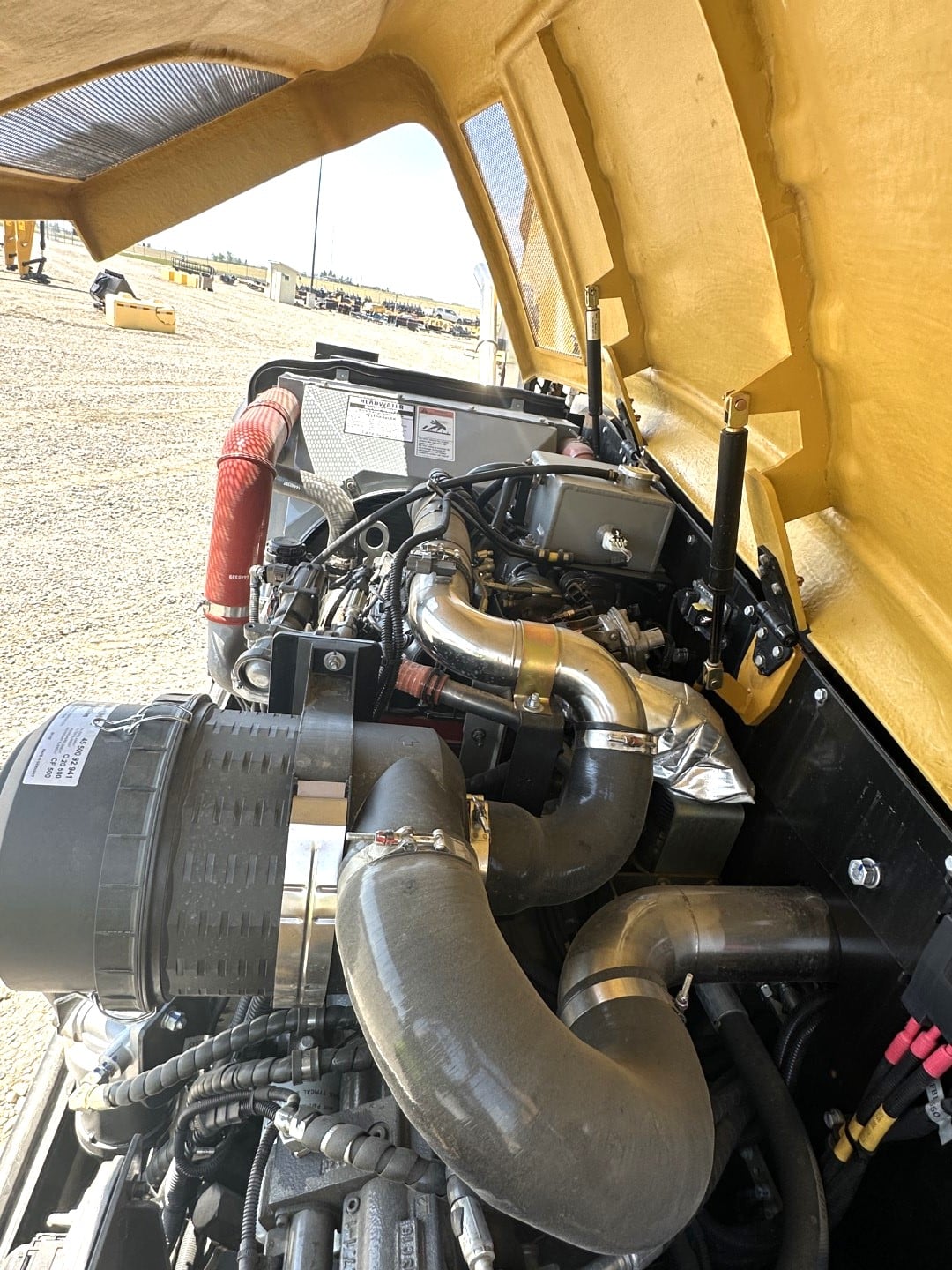

- Simple maintenance with easy fluid level check and convenient access to maintenance items with side-mounted engine
- Cummins engine, Dana axles and transmission, Parker hydraulics, and a Kawasaki load sense piston pump
